DC power line EV16mm² &AWG5 T45 16-6 black 620mm automotive wiring harness

50 pcs
DC power line EV16mm² &AWG5 T45 16-6 black 620mm automotive wiring harness
Features Gallery Product Description Request A Quote
Product Name: DC Power Line EV16mm² &AWG5 T45 16-6 Black 620mm Automotive Wiring Harness
Application Area: Assembly Of Internal Equipment Of Various Types Of Vehicles
Wire Type: EV15E 16mm² Or Customized
Conductor Material: Oxygen Free Copper, Tinned Copper Or Optional
Glass Fiber Sleeve: ∅9.0 White, 1.5KV
Heat Shrink Tubing: ∅10.0 Black
OD: 8.5mm Or Customize To Demand
Color: White Or Optional
Length: 620mm Or Customized
Voltage And Current: 600V,30A
Waterproof Label: PET 80*20mm
Waterproofing Grade: IP68
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
Code: FDL216A1883
Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: EV15E 16mm² or customized
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

DC power line EV16mm² &AWG5 T45 16-6 black 620mm automotive wiring harness


1. Product description


  DC power line EV16mm² &AWG5 T45 16-6 black 620mm automotive wiring harness the wire harness and terminal are firmly fixed,Harness and


terminals should be securely secured. The wiring harness and wire harness partsshould be fixed firmly and can withstand 1500N tension.The heat


shrinkable tube should meet UL94-V0. Waterproof grade: IP68.All the materials used meet the requirements of environmental protection.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2. Product information


Product Name

DC power line EV16mm² &AWG5 T45 16-6 black 620mm automotive wiring harness

Harness material

Pass ISO13485,ISO9001,ULand ROHS2.0 certification

Product application

Assembly of internal equipment of various types of vehicles

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 500N,Flexing test



After-sales service

Authentic guaranteed, factory outlets center

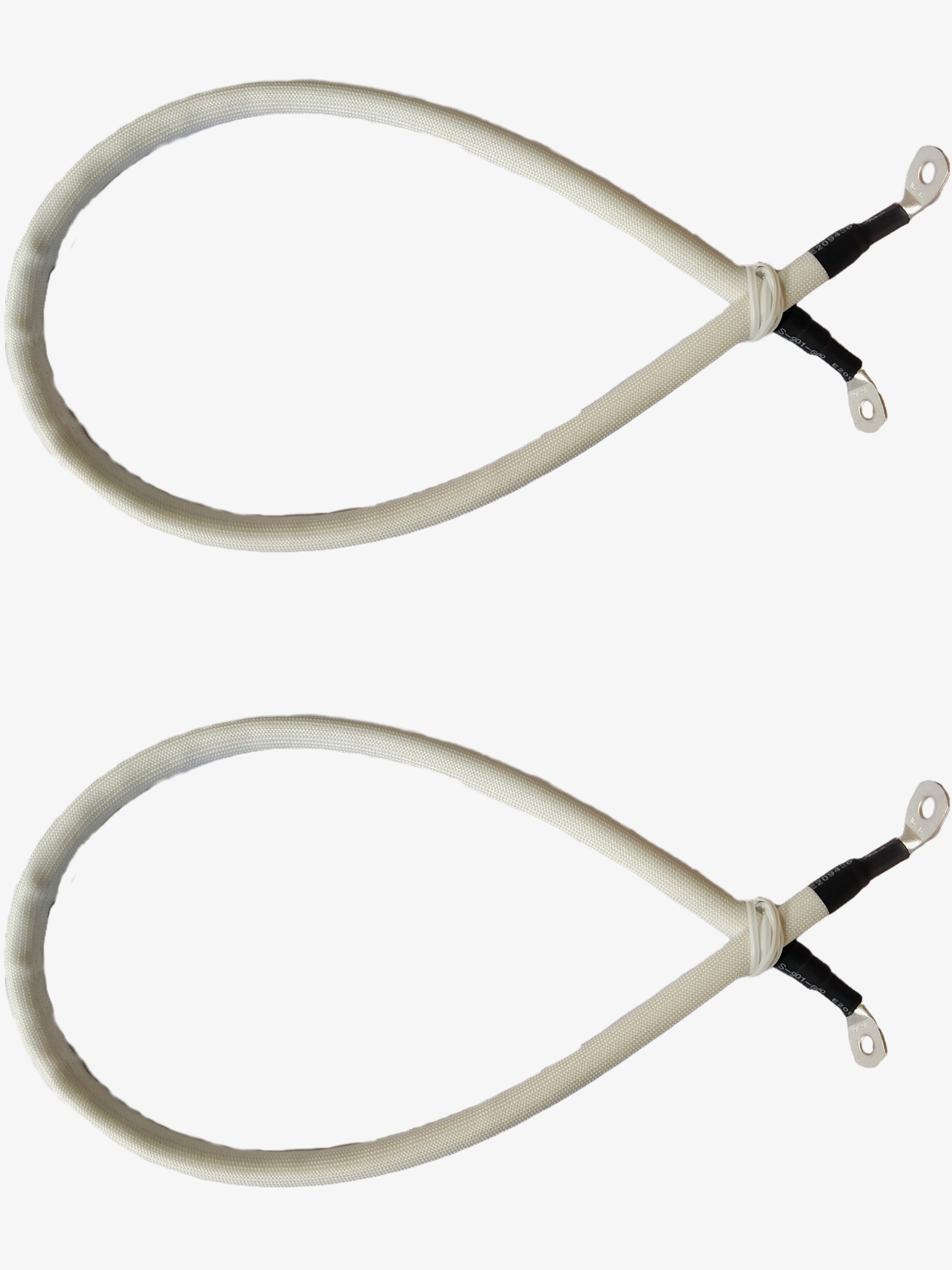

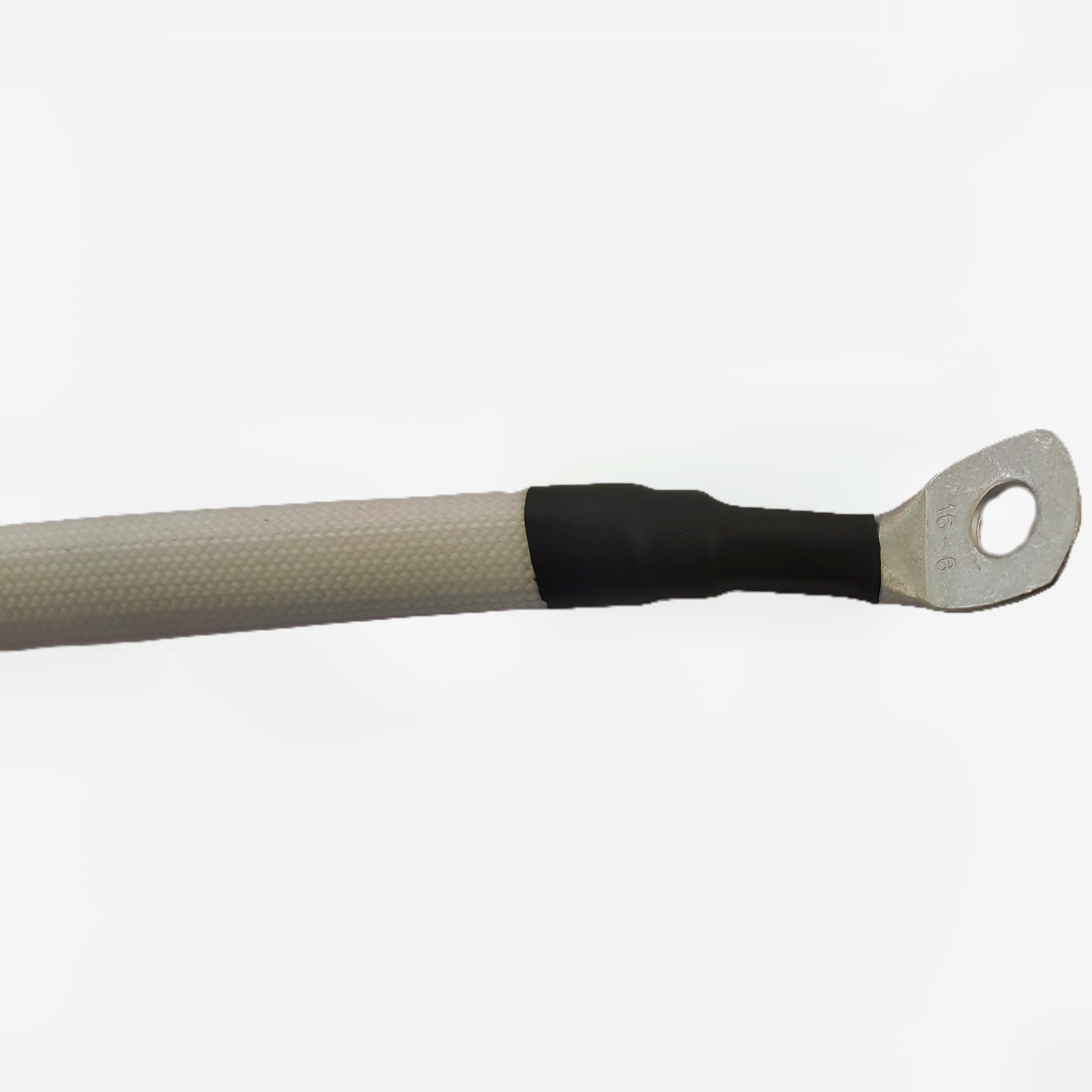

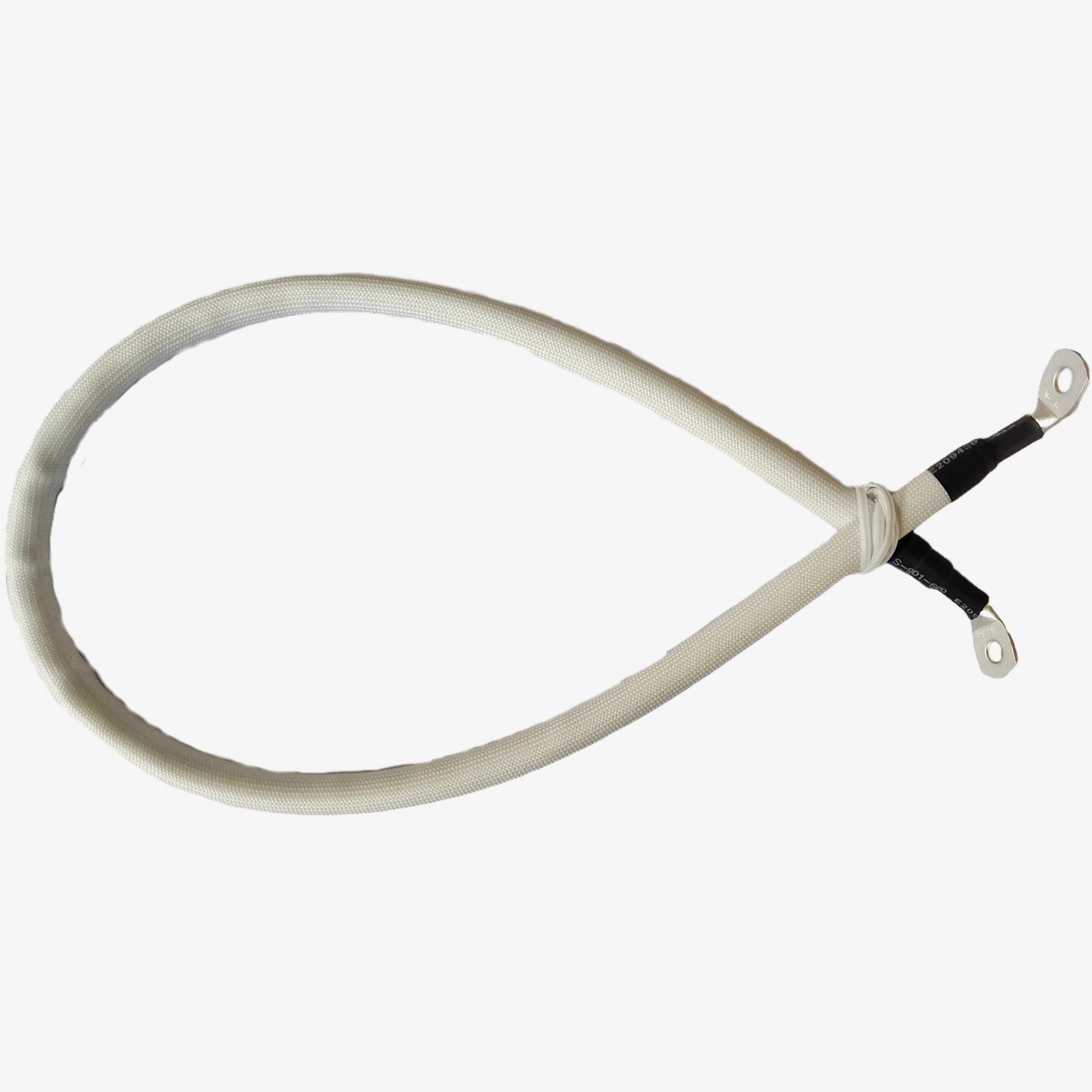

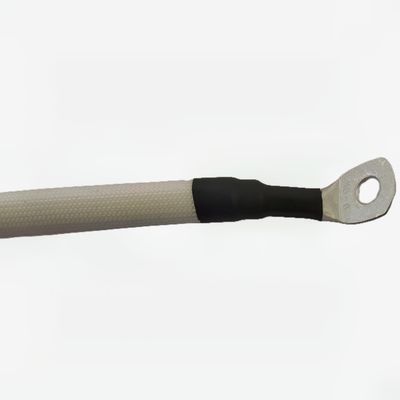

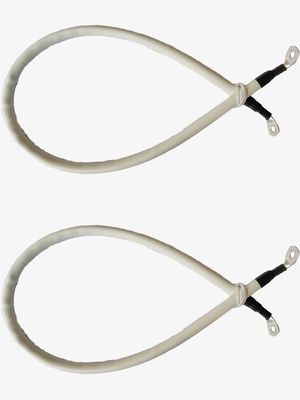

3. Picture of real products


DC power line EV16mm² &AWG5 T45 16-6 black 620mm automotive wiring harness 0


4. Application area


I: Electric vehicles: Wiring harnesses can be used in the power transmission system of electric vehicles to connect battery packs, motors, chargers and other devices to provide high-power DC power supply.


II: Hybrid electric vehicles: The wire harness can be used in the power transmission system of hybrid electric vehicles to connect battery packs, engines, motors, generators and other equipment to achieve coordinated supply of electricity and fuel.


III: Vehicle security system: The wire harness can be used to connect cameras, sensors and other equipment in the vehicle security system to achieve image and data transmission and monitoring functions.


5. Feature


I: T45 16-6: T45 indicates that the wire harness skin material is T45 grade, with certain wear resistance and temperature resistance. 16-6 means that there are 16 wires in the harness, 6 of which are for a specific function or use.


II: High temperature resistance: The material and structure design of the harness make it have high temperature resistance, which can withstand high operating temperature in the automotive electrical system.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.


IV: Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
