Insulated Low Transmission Loss Coaxial Line 3000m 300V Characteristic Impedance

50 pcs
Insulated Low Transmission Loss Coaxial Line 3000m 300V Characteristic Impedance
Features Gallery Product Description Request A Quote
Product Name: Black 3000m 300V Characteristic Impedance 50Ω Insulated Low Transmission Loss Coaxial Line
Application Area: Wireless Communication System, Radio Frequency Equipment And Other Fields
Wire Type: 3G-SDI Anti-interference Shielding
Processing Technic: Riveting, Gluing, Welding, Injection Molding
Connector: BNC RF, Male Head Internal Needle
Color: Black
Length: 3000mm
Characteristic Impedance: 50Ω
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
Code: FDL464A021
High Light:

Insulated Low Transmission Loss Coaxial Line


Loss Coaxial Line 3000m


300V Cable Wire Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: Customized
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: 1-2 week
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

Black 3000m 300V characteristic impedance 50Ω insulated low transmission loss coaxial line


1.Product description


  Black 3000m 300V characteristic impedance 50Ω insulated low transmission loss coaxial line is composed of conductor, insulation layer,


shielding layer and outer sheath. The inner conductor is made of copper and provides the central conductor for signal transmission. The insulation


layer is a layer of high quality insulating material used to isolate the inner conductor and the shielding layer. The shielding layer is made of


conductive materials and surrounds the insulation layer to provide electromagnetic shielding protection and reduce interference and noise.The


coaxial line has a characteristic impedance of 50Ω and is commonly used in many communication and data transmission applications. It can


provide low signal reflection and better signal matching performance to ensure effective signal transmission.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2.Product information


 Product Name

Black 3000m 300V characteristic impedance 50Ω insulated low transmission loss coaxial line

Harness material

Pass ISO13485,ISO9001,ULand ROHS certification

Product application

Wireless communication system, radio frequency equipment and other fields

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Electrical performance test, flame retardant test,connectivity testing and reliability testing



After-sales service

Free warranty for 6 months

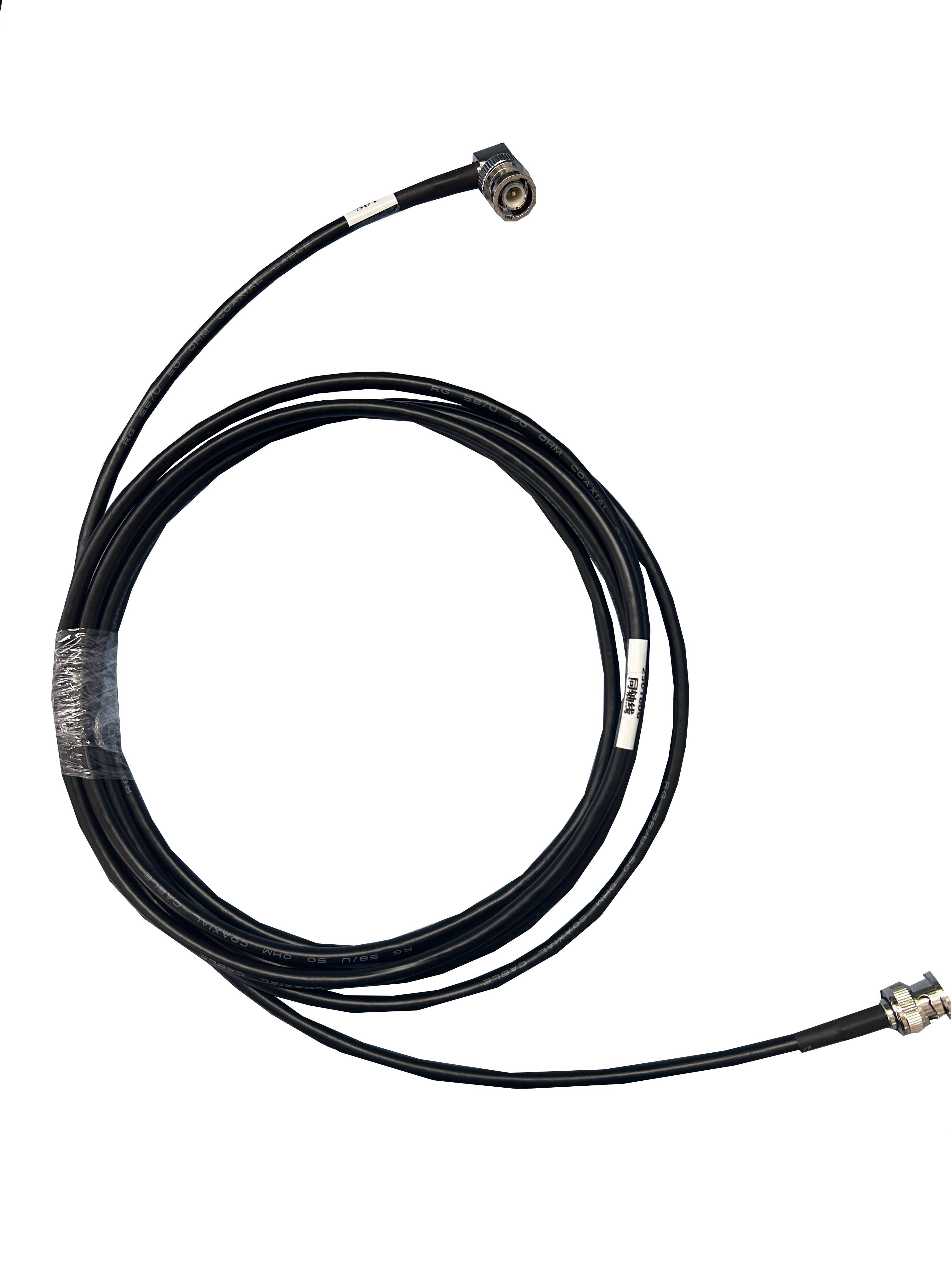

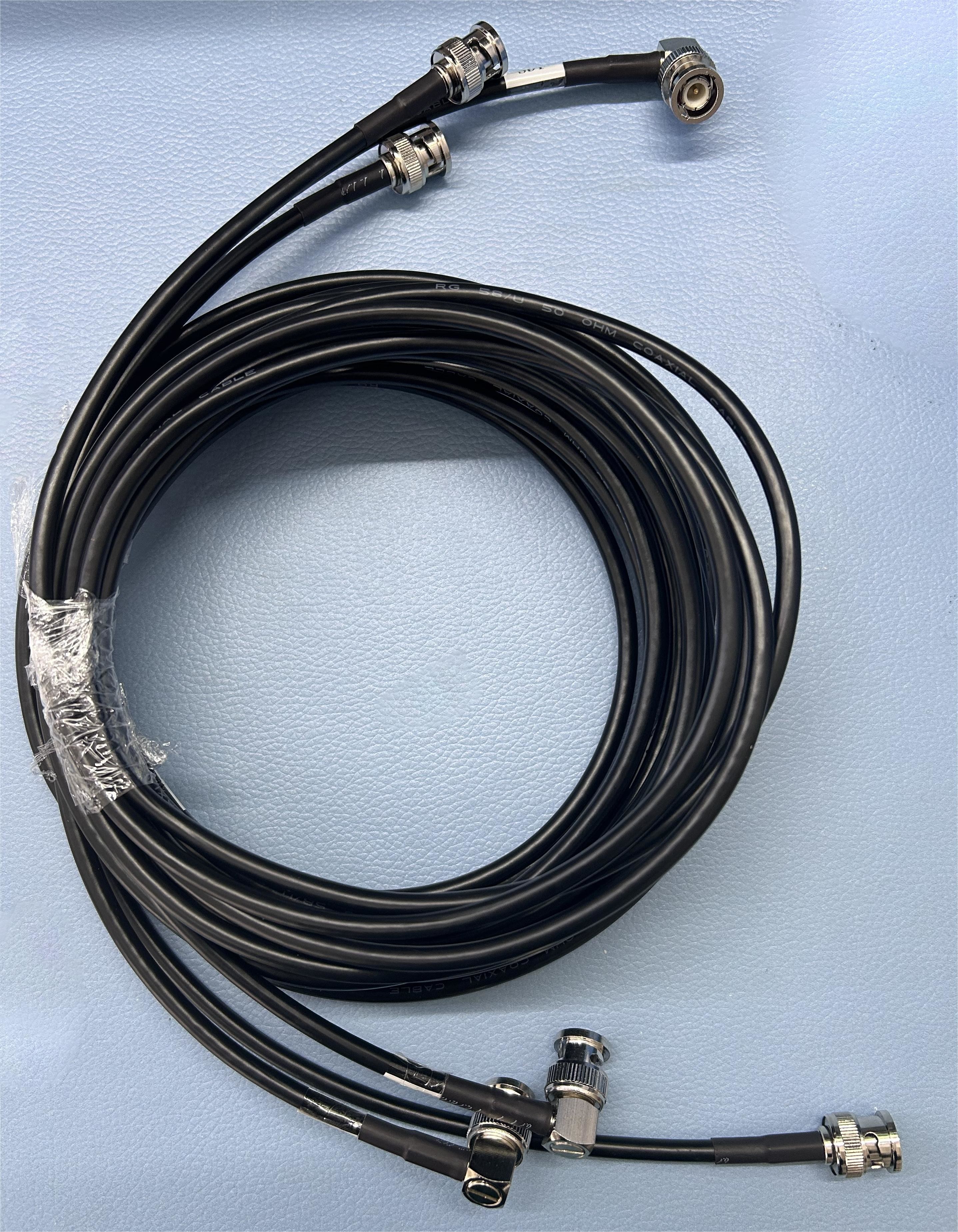

3. Picture of real products


Insulated Low Transmission Loss Coaxial Line 3000m 300V Characteristic Impedance 0


4. Application area


I: Communication system: The coaxial line is suitable for various communication systems, including wireless communication, satellite communication, microwave communication and mobile communication. It can be used to connect antennas, base station equipment, communication equipment and RF modules to provide reliable signal transmission and data communication.


II: Data communication: The coaxial line can be used in computer network, local area network (LAN), wide area network (WAN) and other data communication systems. It is suitable for connecting network devices, routers, switches, servers, and storage devices to provide stable and high-speed data transmission.


III: Security monitoring system: The coaxial line can be used in security monitoring system to connect cameras, monitoring equipment, video recorders and monitoring centers. It provides high-quality video transmission to ensure the reliability of security monitoring and video surveillance.


5. Features


I: Low transmission loss: This coaxial line uses high-quality materials and design to minimize energy loss during signal transmission. It is able to reduce signal attenuation and distortion, ensure accurate signal transmission, and provide high-quality signal performance.


II: High frequency characteristics: the characteristic impedance of 50Ω coaxial line is suitable for high frequency signal transmission. It has good frequency response characteristics, can transmit wideband signals, to meet the requirements of high frequency applications.

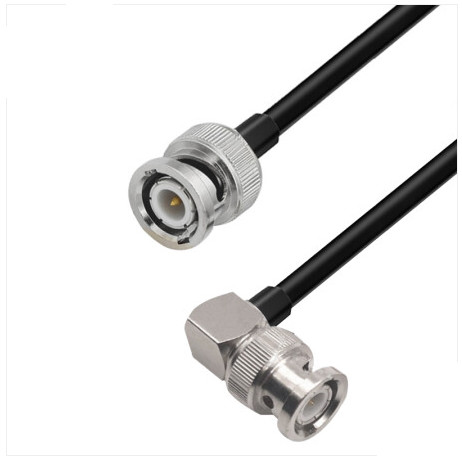

III: Easy installation and connection: The coaxial line is equipped with BNC RF, male head internal pin connectors, making installation and connection easy and reliable. These connectors provide a fast and stable connection for user convenience.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.


IV: Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness. We need you to offer the Trademark Authorization to us.
