Customized Metal Shield Anti Interference Automatic Mechanical Equipment Control Line

Customized metal shield anti-interference automatic mechanical equipment control line

1.  Product description

  Customized metal shield anti-interference automatic mechanical equipment control line equipped with metal shielding layer, common metal

shielding materials include copper foil, aluminum foil or copper braided mesh. The metal shielding layer can effectively shield external

electromagnetic interference, provide good anti-interference ability, and ensure the stable transmission of signals. The harness has a multi-core

structure containing multiple wires for the transmission of power, signals and data. Multi-core design ADAPTS to the transmission requirements of

multiple circuits and signals in automated machinery and equipment. The conductor of the harness is made of oxygen-free copper. Oxygen-free

copper has good electrical conductivity and conductivity, which can ensure high quality and low loss of signal transmission. The wire and insulation

of the harness are capable of withstanding a rated voltage of 300V, making it suitable for applications requiring higher voltages such as industrial

automation and mechanical equipment.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

1.1 Application area

I: Industrial automation: This industrial wire harness is suitable for various industrial automation applications such as automated production lines, assembly lines, packaging lines, and logistics equipment among others. They are used to transmit control signals and data and realize the networking and coordinated operation of automation devices.

II: Robotics: In the fields of industrial robots, collaborative robots, and service robots, such wire harnesses are widely used in the control and communication systems of robots. They can transmit precise instructions and feedback signals to achieve precise movement and operation of the robot.

III: Automated warehousing systems: In automated warehouses and logistics systems, this harness is used to control goods handling, sorting, and storage equipment. They are able to transmit control signals and data and coordinate the operation of the entire warehousing system.

1.2 Feature

I: Fire retardant performance: The industrial harness uses fire retardant materials, such as special polyvinyl chloride (PVC) or low smoke halogen-free (LSZH) materials, with excellent fire retardant performance. In case of fire, they are able to slow down burning and reduce the release of toxic smoke and gases, providing increased safety.

II: Anti-interference ability: The design of metal shielding layer makes the harness have excellent anti-interference ability. They are able to resist electromagnetic interference sources from the surrounding environment, such as motors, sensors, and high-power cables, etc., ensuring signal integrity and accuracy.

III: High quality insulation material: The wire harness adopts high quality insulation material, which has good electrical insulation performance. These materials effectively isolate conductors, prevent current leakage and short circuits, and provide additional security.

IV: Durability: The harness has good wear resistance, corrosion resistance and high temperature resistance, and can be used for a long time in harsh working environment. They are able to withstand factors such as mechanical stress, chemical corrosion, and high temperature, ensuring reliable performance and longevity.

2. Product information

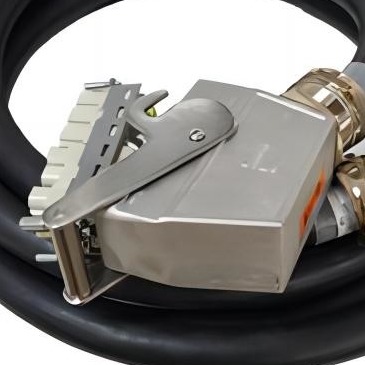

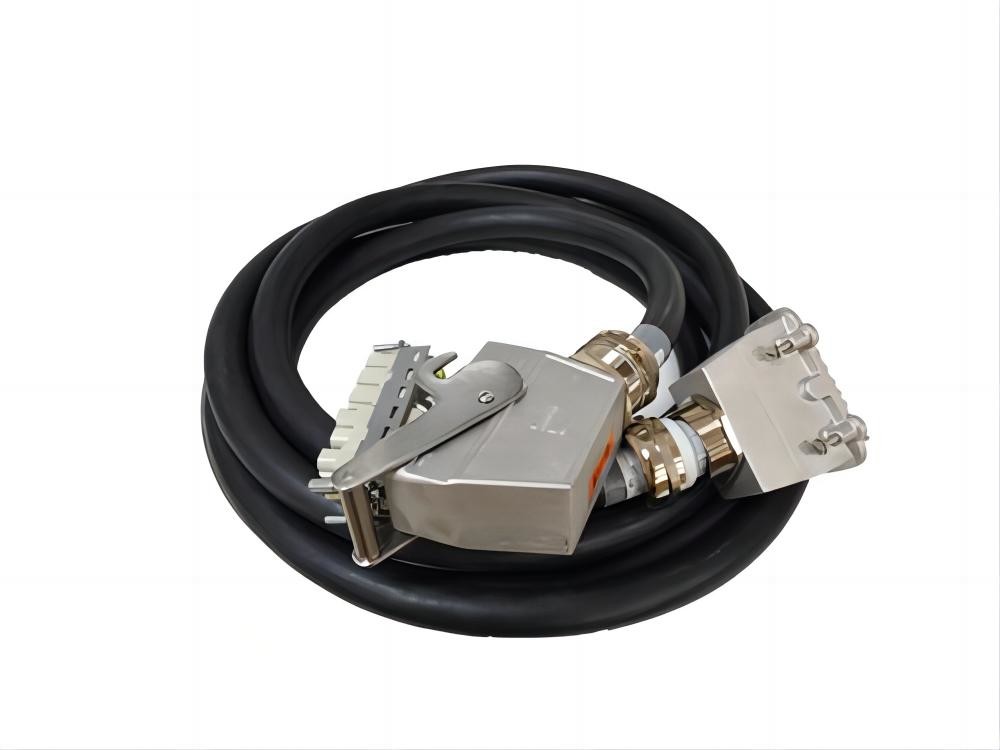

2.1 Picture of real products

3.Main products

I,Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II,Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III,New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.

IV,Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
