UL1007 24AWG 4PIN plastic case, 100mm white pvc transparent sheath insulated display panel electronic wiring harness
1. Product description
UL1007 24AWG 4PIN plastic case, 100mm white pvc transparent sheath insulated display panel electronic wiring harness UL1007 standard with
24AWG wire. Suitable for low current applications. The electronic harness is equipped with a 4-pin plastic case connector for insertion into the
corresponding interface of the display or other electronic devices. Plastic case connectors provide easy plugging and unplugging, making the
electronic harness easy to install and replace. The electronic harness is wrapped with an insulating tape on the outside of the harness for
additional protection. The insulation tape can increase the insulation performance of the wiring harness, improve the durability and anti-
interference ability of the wiring harness. The cable harness of the TV display screen is made of transparent sheath made of white PVC material,
with beautiful appearance. The transparent sheath makes the wires and connectors inside the harness clearly visible for easy installation and
maintenance.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
UL1007 24AWG 4PIN plastic case, 100mm white pvc transparent sheath insulated display panel electronic wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Electronic equipment |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1000N |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

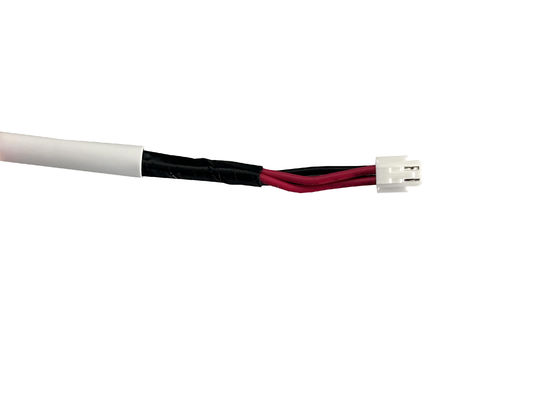

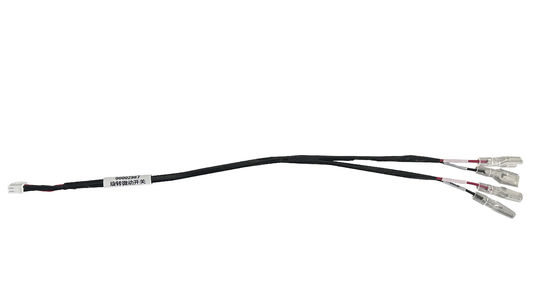

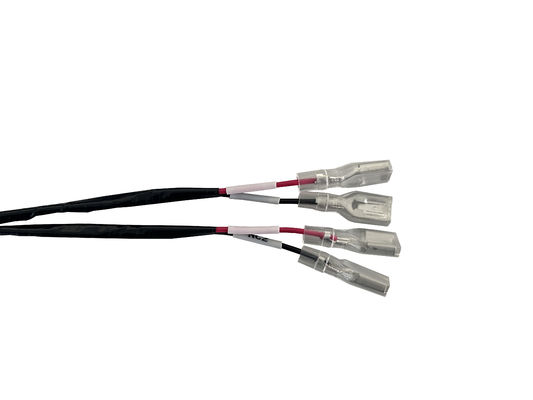

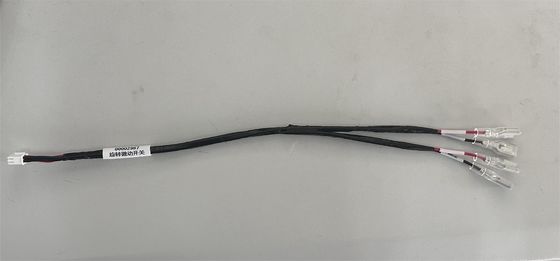

3. Picture of real products
4. Application area
I: Computer monitor: The display electronic wiring harness is suitable for connecting computer monitor and related equipment, transmitting video signals, power signals and other control signals.
II: Industrial displays: This display electronic wiring harness is widely used in the industrial sector to connect industrial displays, touch screens, controllers, and other devices.
III: Automotive navigation systems: The display electronic wiring harness can be used to connect the display, audio devices, and control units in automotive navigation and entertainment systems.
5. Feature
I: High temperature resistance: UL1007 electronic display harness has good high temperature resistance. The UL1007 standard requires wiring harnesses to operate within a certain temperature range, typically between 80°C and 105°C.
II: Electrical insulation performance: The insulation performance of the electronic display harness conforms to UL1007 standard, which can effectively isolate the wires and prevent current leakage and electrical short circuit.
III: Easy installation and maintenance: The plastic case connectors and transparent sheath design of the electronic display harness make it easy to install and maintain, reducing working time and labor costs.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
