PVC Waterproof Electronic Industrial Wire Harness Communication Shield Control

PVC waterproof electronic industrial wire harness communication shield control

1. Product description

  PVC waterproof electronic industrial wire harness communication shield control can be customized processing technology is welding, riveting,

filling glue, injection molding, process assembly.Withstand voltage: DC300V, 10 ms; Conduction impedance: max 3 ohms; Insulation impedance:

min 5 megohm.The wiring harness also has the function of communication shielding control, which is used to suppress the influence of external

electromagnetic interference on communication signals. It uses a shielding structure to wrap the wire inside the harness, effectively reducing the

interference and distortion of the signal. This makes wiring harnesses perform well in applications that require reliable communication and data

transmission, such as network equipment, communication systems, industrial automation, etc.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

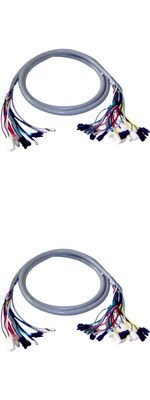

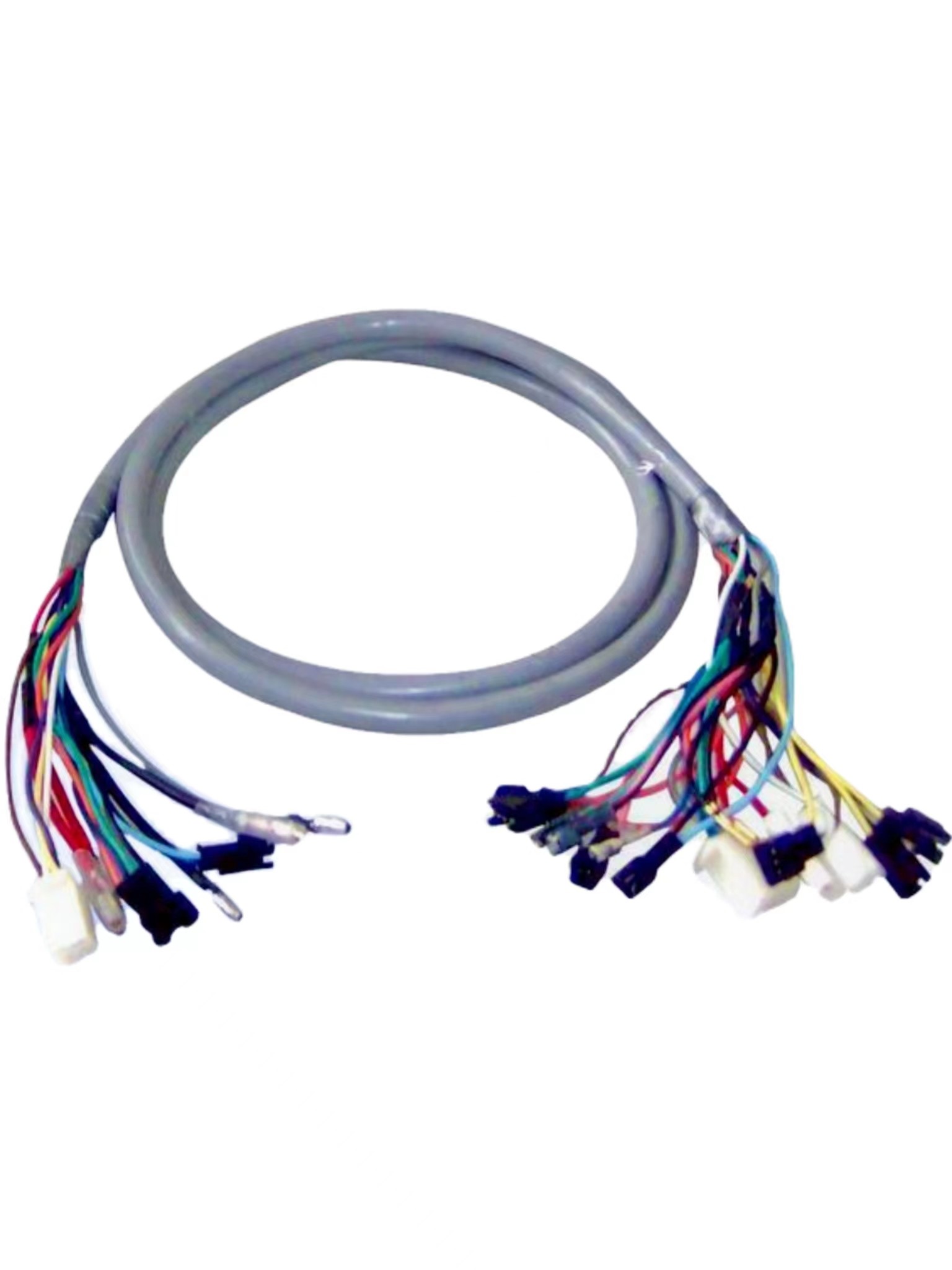

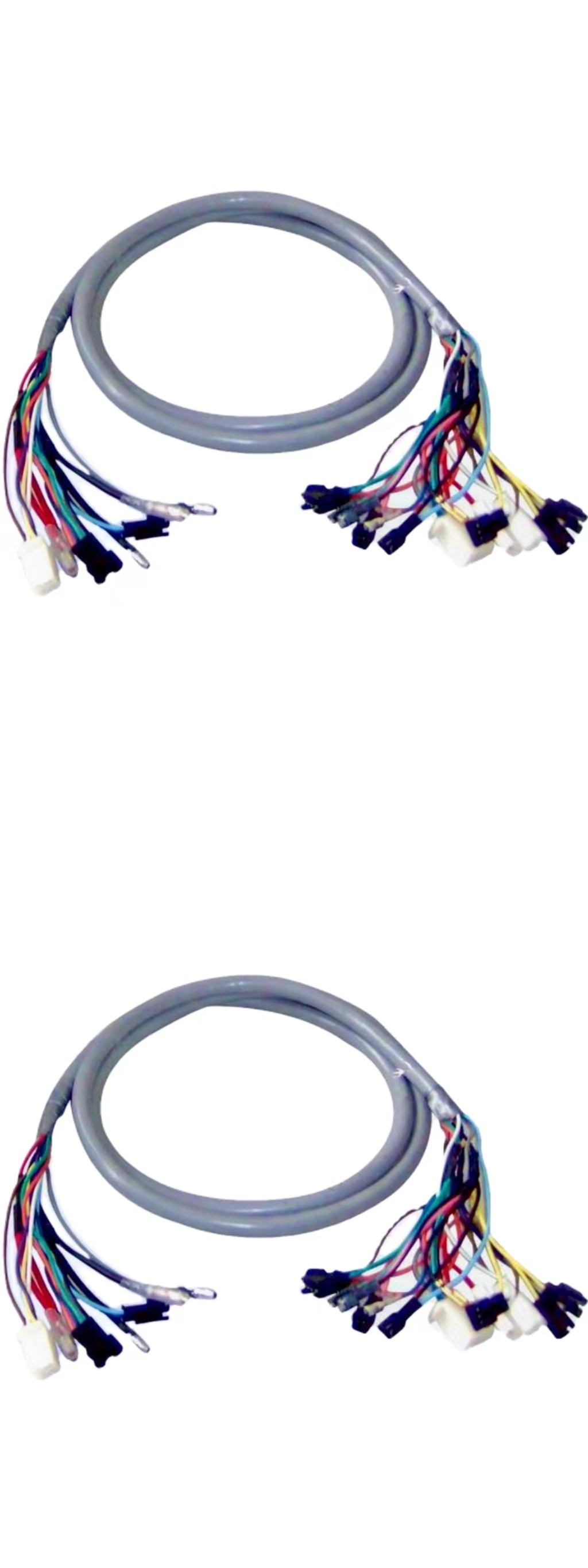

3. Picture of real products

4. Application area

I: Automotive and traffic systems: PVC waterproof electronic industrial wiring harness communication shielding control is widely used in the electrical systems of cars, trucks, motorcycles and other vehicles. They carry power supply, communication, signal transmission and other functions, while being able to withstand environmental factors such as moisture, vibration and temperature changes.

II: Aerospace: In the aerospace sector, PVC waterproof electronic industrial wire harness communication shielding control is used in electrical and communication systems of aircraft, satellites, rockets, and spacecraft. They need to be waterproof, vibration-resistant, and radiation-resistant to ensure reliable signal transmission and system operation.

III: Power industry: In the power industry, PVC waterproof electronic industry wire harness communication shielding control is widely used in power equipment, transmission lines and power distribution systems. They can carry high voltages and currents, provide reliable power transmission and communication signals, and are waterproof and resistant to chemical corrosion.

5. Feature

I: Harness structure and layout: PVC waterproof electronic industrial harness consists of multiple wires, which are arranged according to the specific application requirements. The harness structure can be customized according to customer requirements, including the number of wires, length, connector type and location, etc. This allows wiring harnesses to be perfectly matched to specific devices and systems.

II: Waterproof performance: PVC waterproof harness adopts special waterproof structure and material, which can effectively prevent moisture from penetrating into the interior of the harness. This waterproof property makes it very useful in outdoor environments, wet areas, or applications that require waterproof protection.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.
