UL1007 18 AWG Medical Wire Harness For Medical Testing Equipment

50 pcs
UL1007 18 AWG Medical Wire Harness For Medical Testing Equipment
Features Gallery Product Description Request A Quote
Product Name: UL1007 18 AWG Medical Wire Harness For Medical Testing Equipment
Application Area: Various Types Of Medical Testing Equipment, Etc
Wire Type: UL1007
Conductor Material: Oxygen-free Copper
Insulating Material: PVC
Colour: Blue And Brown
OD: 2.1mm
Length: 600mm
Conduction Impedance And Insulation Resistance: 3Ω,5MΩ
DV High Pressure: 300V/0.01S
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
Code: FDL129A108
High Light:

UL1007 Medical Wire Harness


18 AWG Medical Wire Harness


ISO9001 Medical Cable Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: Customized
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

UL1007 18 AWG medical wire harness for medical testing equipment


1. Product description


  UL1007 18 AWG medical wire harness for medical testing equipment it consists of multiple wires, each of which uses 18AWG copper wire. The wires are woven with copper monofilament to provide good conductivity and flexibility. Insulation materials usually adopt special insulation materials that meet medical standards and have good electrical insulation and wear resistance.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2. Product information


Product Name

UL1007 18 AWG medical wire harness for medical testing equipment

Harness material

Pass ISO13485,ISO9001,ULand ROHS certification

Product application

Various types of medical testing equipment, etc

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Bending resistance: ≥5 million times,Salt spray test: ≥72H,Continuity test.



After-sales service

Authentic guaranteed, factory outlets center

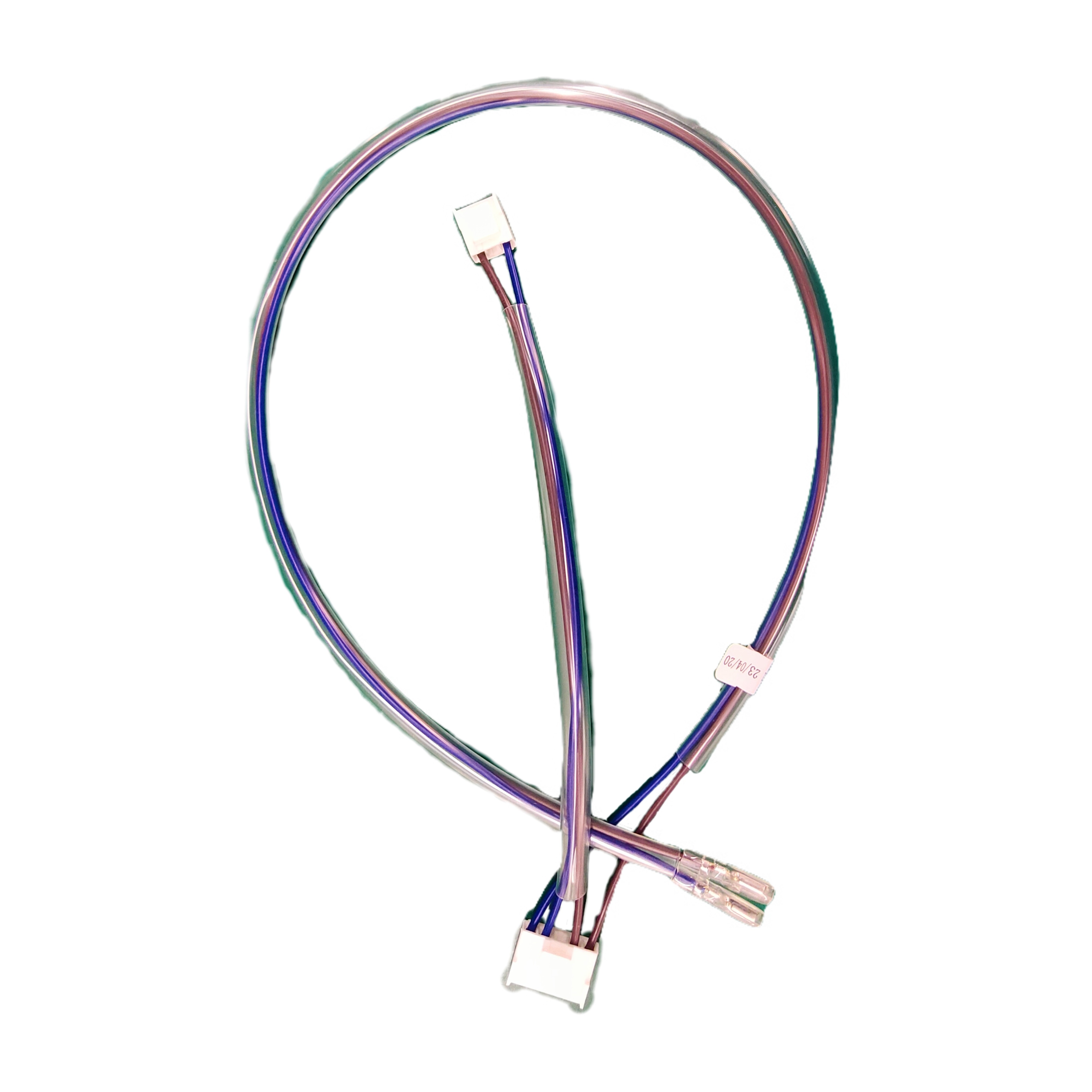

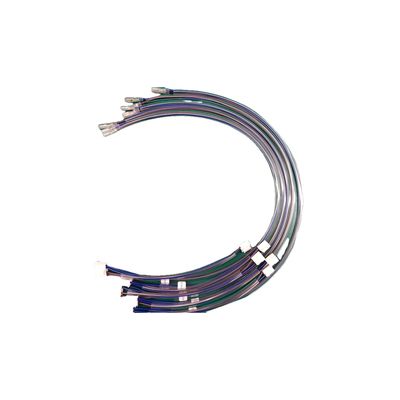

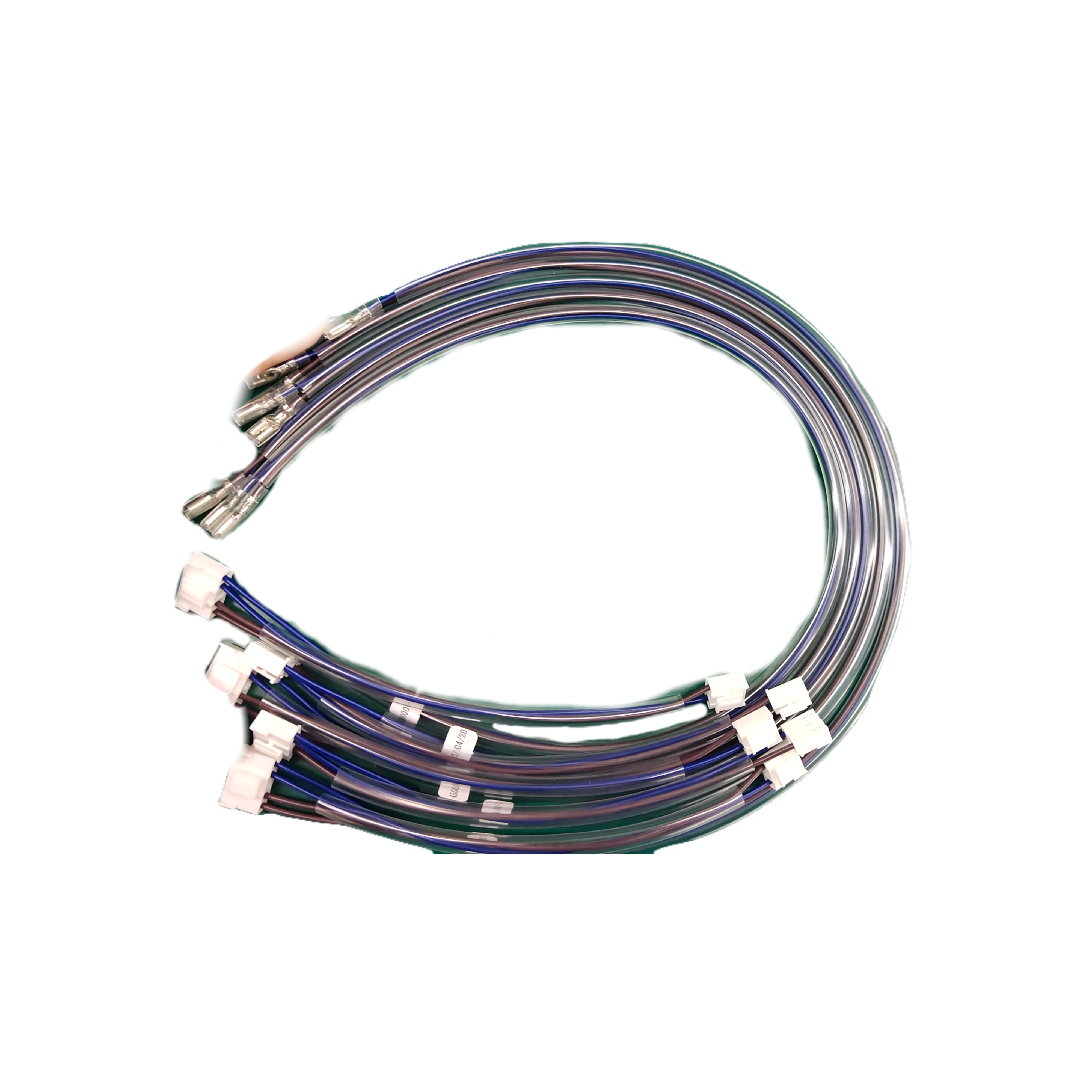

3. Picture of real products


UL1007 18 AWG Medical Wire Harness For Medical Testing Equipment 0


4. Application area


I: Vital signs monitoring equipment: medical wire harness can be used in blood pressure monitor, electrocardiogram machine, pulse oxygen saturation meter and other vital signs monitoring equipment. They connect sensors, electrodes, and instruments that deliver biological signals and measurements to monitor a patient's physiological state.


II: Laboratory equipment: Medical wire harness can be applied to various medical testing equipment in the laboratory, such as blood analyzer, biochemical analyzer, cell counter, etc. They are used to connect sensors, sample handling equipment and instruments for sample analysis and data transmission.


5. Feature


I: Stable electrical performance: The harness uses UL1007 standard wire, with stable electrical performance, can provide reliable power transmission and signal transmission. It can effectively reduce signal attenuation, interference and other electrical problems.


II: Durability and wear resistance: The UL1007 18AWG medical wire harness is made of high quality insulation materials and sheath materials, which has good durability and wear resistance. This allows the harness to withstand long periods of use, frequent bending and tension, extending the life of the harness.


III: Waterproof performance: The medical wiring harness may have certain waterproof performance to adapt to the humid environment or cleaning requirements that the medical testing equipment may encounter. Special waterproof designs or materials prevent moisture from penetrating the interior of the harness and protect cables and connectors from water or other liquids.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.
