28AWG Electronic Wiring Harness Cable Halogen Free Flame Retardant UL10064

50 pcs
28AWG Electronic Wiring Harness Cable Halogen Free Flame Retardant UL10064
Features Gallery Product Description Request A Quote
Product Name: 28AWG Electronic Wiring Harness Cable Halogen Free Flame Retardant UL10064
Application Area: Industrial Equipment (servo System) Robot
Wire Type: UL10064
Terminal Plastic Case: Optional
Conductor Material: Oxygen-free Copper
Insulating Material: PVC
Color: Black
OD: 1.0mm
Length: 105mm
Conduction Impedance And Insulation Resistance: 2Ω,5MΩ
DV High Pressure: 300V
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
High Light:

28AWG Electronic Wiring Harness


Electronic Wiring Harness Cable


UL10064 Electronic Wire Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: UL10064 or customized
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

28AWG Electronic Wiring Harness Cable Halogen Free Flame Retardant UL10064


1. Product description


 28AWG Electronic Wiring Harness Cable Halogen Free Flame Retardant UL10064​ made of highly flexible wire harness, red and black arrangement,


wire tail terminal. Ensure the efficiency and accuracy of transmission.


 Feel free to contact with us, if you ever needed to consider your wire harness solution.


2. Product information


Product Name

28AWG Electronic Wiring Harness Cable Halogen Free Flame Retardant UL10064

Harness material

Pass ISO13485,ISO9001,ULand ROHS2.0 certification

Product application

Industrial equipment (servo system) robot

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test ≥1.4KG



After-sales service

Authentic guaranteed, factory outlets center

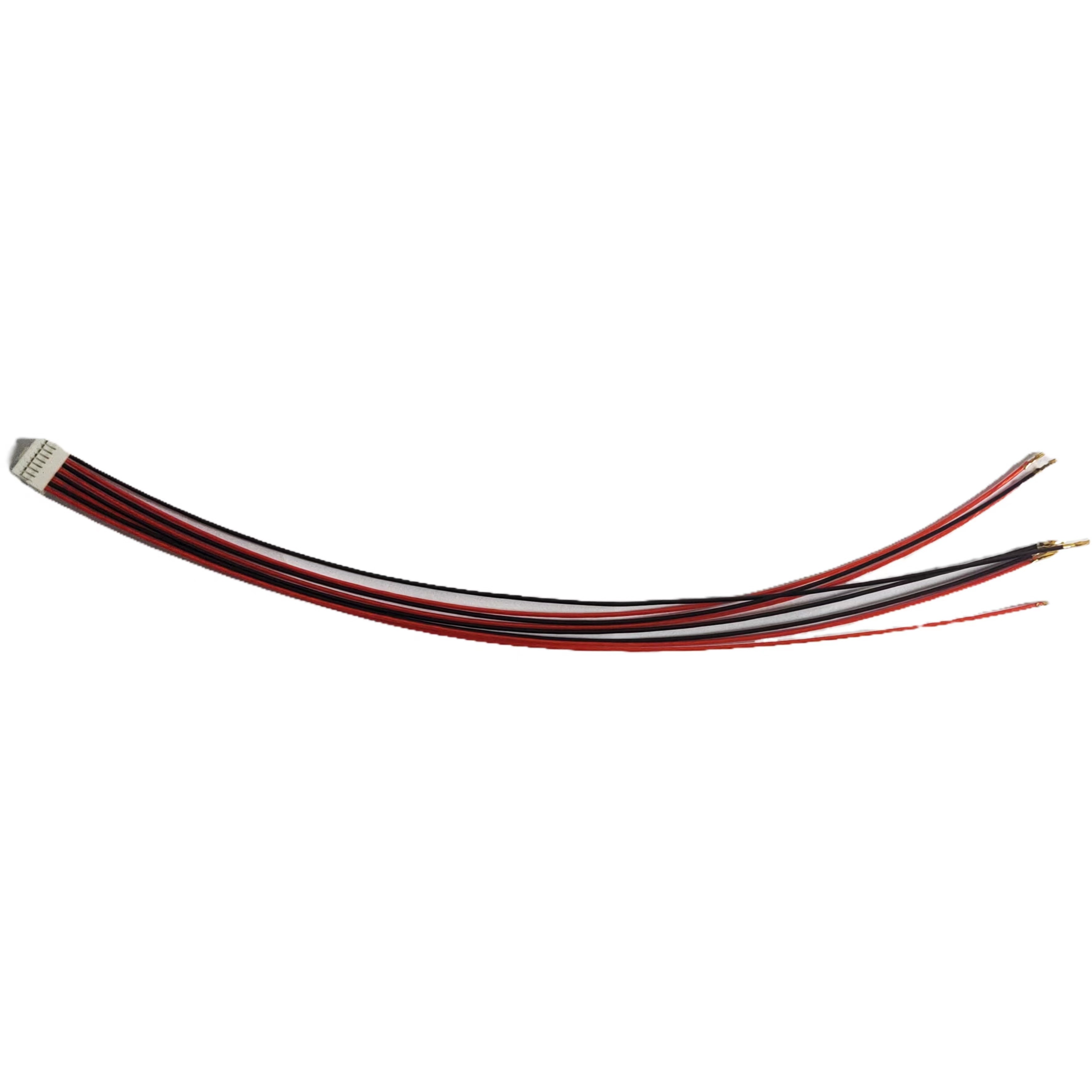

3. Picture of real products


28AWG Electronic Wiring Harness Cable Halogen Free Flame Retardant UL10064 0


4. Application area


I: Computer and communication equipment: UL10064 28AWG halogen-free flame retardant electronic harness is commonly used in computers, servers, network equipment and communication equipment, etc. They are used in applications such as data transmission lines, power connections, control lines, and signal transmission.


II: Industrial automation: In the field of industrial automation, UL10064 28AWG halogen-free flame retardant electronic wiring harness is commonly used in control systems, factory automation equipment and robots, etc. They are able to adapt to vibration, humidity and chemical corrosion in industrial environments.


III: Aerospace: In the aerospace sector, this harness is often used in electronic systems in aircraft and spacecraft, such as aircraft dashboards, navigation systems, and communication systems. They are capable of adapting to extreme environmental conditions such as high temperature, high pressure, and vibration.


5. Feature


I: Halogen-free flame retardant characteristics: The electronic harness is made of halogen-free flame retardant materials, without chlorine, bromine and other halogen elements. This design gives the harness the ability to stop the spread of flames when encountered, helping to improve safety and reduce the release of harmful gases and fumes.


II: Fire resistance: Halogen-free flame retardantmaterials make the harness have good fire resistance and can resist the impact of flame and high temperature conditions to a certain extent, helping to protect the harness and surrounding equipment from fire risks.


III: Environmental protection: halogen-free flame retardant materials do not contain harmful halogen elements, in line with the requirements of environmental friendliness. This helps to reduce the negative impact on the environment and meet the requirements for sustainability and environmental protection in some industries.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
