Product Name: Corrugated Pipe Automotive Wiring Harness For High Voltage Power Supply Charging
Application Area: Assembly Of All Types Of Vehicles(inclusive Of New Energy
Wire Type: High Flexible Towing Cable Or Customized
Connector: Amphenol,Delphl,Amp,Yazakl,Ket Or Optional
Conductor Material: Copper-clad Aluminium Conductor Or Optional
Gold Over Nickel: Gold Or Tin Plated With Nickel
Insulating Material: PVC Or Optional
Interface Type: AC/DC
Color: Black Or Optional
OD: Customize To Demand
Length: 2m Or Customized
Rated Voltage: 300V
Conductive Impedance:
Insulation Impedance: 10Ω
Temperature: -40~200℃
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
High Light:

PVC Tube Automotive Wiring Harness


Automotive Wiring Harness Power Supply Charging


PVC Tube auto wiring harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: High flexible towing cable or customized
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

Corrugated pipe​ automotive wiring harness for high voltage power supply charging


1. Product description


  Corrugated pipe automotive wiring harness for high voltage power supply charging mainly used for transmission of high voltage and high current,


with high voltage resistance and durability. Corrugated pipe shell: The wiring harness adopts high-quality PVC material shell for encapsulation and


protection, with high temperature resistance, corrosion resistance, not easy to aging, wear resistance and other characteristics.Multi-strand copper


wire conduction: The wire harness adopts multi-strand thin copper wire to conduct electricity, improving the insulation and reliability of the wire


harness.The harness adopts independent marshalling design to distinguish high-voltage wires, ground wires and signal wires to avoid crossing


and mutual interference of lines.Safe and reliable.The wiring harness can transmit thousands of volts of high-voltage electric energy, and can


maintain stable transmission in high-speed driving or complex road conditions, to ensure driving safety and normal operation of electric


vehicles.Waterproof rating IP68.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2. Product information


Product Name

Corrugated pipe automotive wiring harness for high voltage power supply charging

Harness material

Pass ISO13485,ISO9001,ULand ROHS2.0 certification

Product application

Assembly of various vehicle equipment (including new energy)

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Bending resistance: ≥5 million times,Salt spray test: ≥72H



After-sales service

Authentic guaranteed, factory outlets center


3. Picture of real products

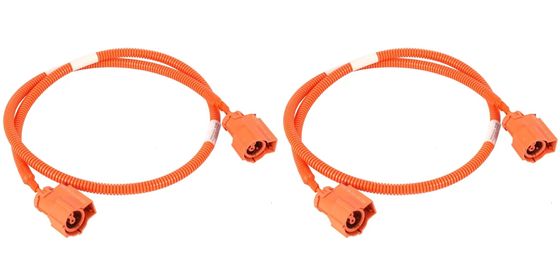

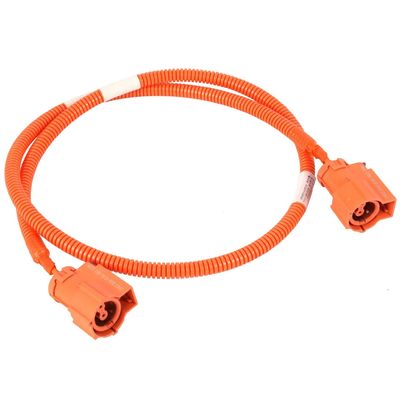

Corrugated pipe Automotive Wiring Harness For High Voltage Power Supply Charging 0


4. Application area


I: Charging pile connection: The corrugated pipe bundle is used to connect the EV charging pile to the vehicle charging interface. They take on the task of transferring electrical energy from the charging pile to the vehicle battery.


II: Internal vehicle wiring: Wiring harnesses transfer electrical energy from charging connection points outside the vehicle to the battery system inside the vehicle. They are routed through the chassis of the vehicle or other appropriate paths to ensure the transmission and distribution of high-voltage power supplies.


III: High voltage auxiliary power systems: In addition to charging systems, corrugated pipe bundles may also be used to connect high voltage auxiliary power systems of vehicles, such as air conditioning systems, electric power steering systems, etc.


5. Feature


I: High voltage power transmission: Corrugated pipe bundles are used to transmit high voltage power to deliver electrical energy from the charging pile to the vehicle's battery system. They are able to withstand power transmission in high-voltage environments and ensure safe and efficient transmission of power.


II: Insulation protection: The harness adopts special insulation materials and structure, which can provide excellent insulation performance and prevent current leakage and arc discharge. This is essential for high voltage charging systems to ensure the safety and reliability of the charging process.



III: Flexural adaptability: The corrugated harness has a flexible corrugated structure that enables it to adapt to complex layouts and flexural paths inside the vehicle. This makes wiring harnesses more convenient in the process of installation and wiring, and can adapt to the needs of different models and vehicle designs.


IV: Anti-electromagnetic interference: Shielding and insulation measures are used in the wiring harness to reduce the impact of electromagnetic interference on the wiring harness and charging system. This helps to maintain the stability of power transmission and prevent the negative impact of external interference on system performance.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.


IV: Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
