High Frequency Transmission Orange 500mm 2 Core Electric Vehicle Wiring Harness 300V
1. Product description
High frequency transmission orange 500mm 2 core electric automotive wiring harness 300V suitable for high pressure environment, can
withstand high voltage and high temperature.The use of high quality materials, such as high temperature resistant polyimide materials, flame
retardant materials, insulating layer materials, good corrosion resistance, high strength and high heat resistance.Designed for high frequency
transmission requirements, good transmission performance, high signal-to-noise ratio, can ensure the accuracy and stability of high-speed data
transmission.Can customize different lengths and interfaces of wiring harnesses to meet different customer requirements.Waterproof rating IP68.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
High frequency transmission orange 500mm 2 core electric automotive wiring harness 300V |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Assembly of various vehicle equipment (including new energy) |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Insulation withstand voltage test, tensile bending test, etc |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

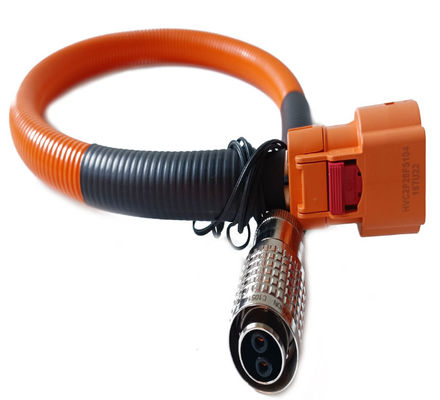

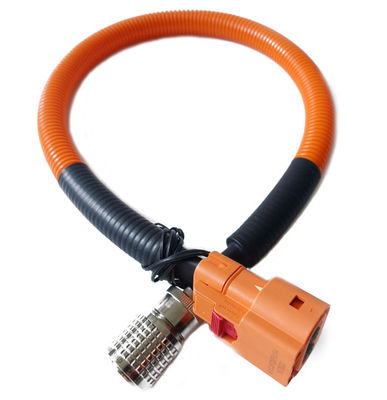

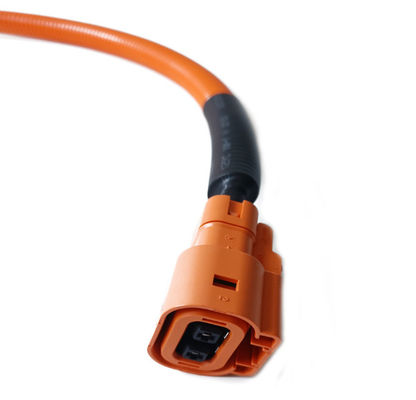

3. Picture of real prducts
4. Application area
I: Electric vehicle motor drive system: This harness may be used in electric vehicle motor drive system to transmit high frequency signals for motor control and drive. This includes components such as motor controllers, motor drives, and sensors.
II: Electric vehicle power electronics systems: Wire harnesses may be applied in the power electronics systems of electric vehicles to transmit high-frequency signals and power wires. These systems typically involve devices such as power converters, inverters, chargers, and DC-DC converters.
III: Sensors and monitoring systems: Wiring harnesses may be used to connect sensors and monitoring systems in a vehicle, such as temperature sensors, pressure sensors, speed sensors, and position sensors. These sensors may require high frequency transmission to monitor and control various parameters of the vehicle in real time.
5. Feature
I: High frequency transmission: This harness is designed for high frequency transmission and may be used in certain high frequency electrical systems in electric vehicles. High frequency transmission is commonly used to transmit high frequency AC electrical signals for efficient transmission and control in electric vehicle systems.
II: Insulation performance: The wiring harness needs to have good insulation performance to ensure stable transmission of high-frequency signals. Insulating materials and structural design are used to resist the influence of external interference and noise.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
