High Efficiency Transmission 24v Control Power Output Harness High Temperature Resistant

50 pcs
High Efficiency Transmission 24v Control Power Output Harness High Temperature Resistant
Features Gallery Product Description Request A Quote
Product Name: High Efficiency Transmission, High Temperature Resistant 24V Control Power Output Harness
Application Area: Electronic Equipment, Industrial Automation, Etc
Wire Type: UL1015 10AWG
Conductor Material: Copper
Connector: Terminal, Plastic Shell
Color: Black And Red
Length: 110mm
Withstand Voltage: 300V
Connector Rating: IP67
Insulation Resistance: ≥20MΩ
Impedance On Conduction: ≤2Ω
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
Code: FDL464A119
High Light:

High Transmission Copper Power Supply Harness


24V Control Power Output Harness


High Temperature Resistant Wiring Harness 10AWG

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: EV cable
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

High efficiency transmission, high temperature resistant 24V control power output harness


1. Product description


  High efficiency transmission, high temperature resistant 24V control power output harness high quality wires and connectors are used for good


electrical performance and stability. It can provide reliable power supply to ensure the normal operation of the control system.The 24V voltage is


relatively low, and the safety risk to human body is low. In the design and manufacturing process of the control power output wiring harness,


insulation materials and protective measures are usually used to ensure the safety and reliability of the wiring harness and avoid safety problems


such as electric shock and fire.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2. Product information


Product Name

High efficiency transmission 24v control power output harness high temperature resistant

Harness material

Pass ISO13485,ISO9001,ULand ROHS certification

Product application

Electronic equipment, industrial automation, etc

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Salt spray test: ≥72H,Conduction rate 100%



After-sales service

Authentic guaranteed, factory outlets center

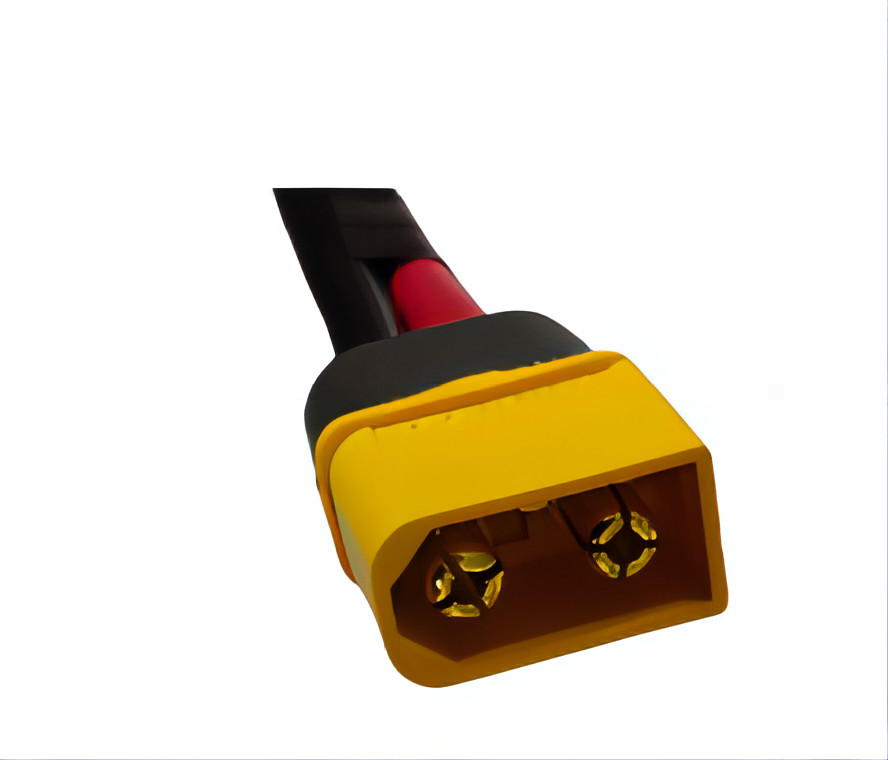

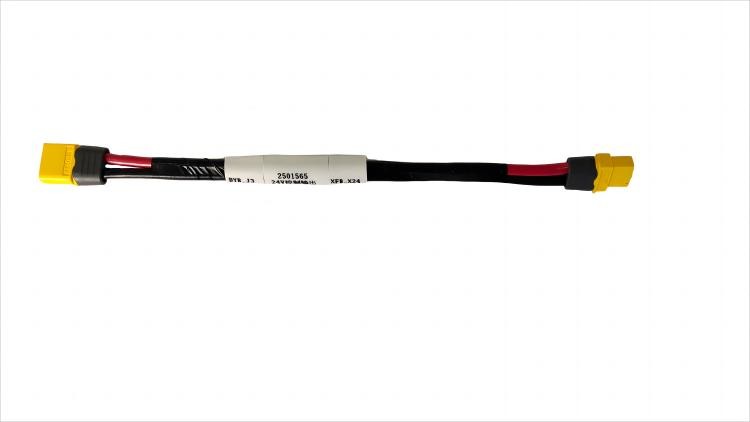

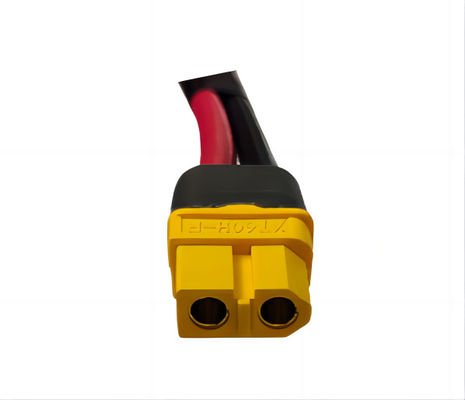

3. Picture of real products


High Efficiency Transmission 24v Control Power Output Harness High Temperature Resistant 0


4. Application area


I: Industrial automation: In the field of industrial automation, control systems usually need to transmit 24V power signals, while facing the challenge of high temperature environment. High temperature tolerant wiring harnesses can be applied in control systems such as factory automation equipment, robots, sensors, and actuators, ensuring reliable power transmission and signal connection.


II: Automotive electronics: The control power harness in the automotive electronic system needs to have high temperature resistance, especially in the engine room and other high temperature environment. These hardings can be used in electric vehicles, engine management systems of fuel vehicles, driver assistance systems, body control modules and other applications to ensure stable power supply and signal transmission.


III: LED lighting: In LED lighting systems, the control power harness needs to withstand high temperature environments, especially inside the luminaires. These harnesses can be used in applications such as LED strips, lighting controllers, and drives, ensuring stable power supply and signal transmission while improving the efficiency and reliability of lighting systems.


5. Feature


I: Insulation: Use a high temperature resistant insulation material to protect the wire, such as polyimide (PI) or polyteflon (PTFE). These materials have good insulation properties and high temperature resistance, and are able to prevent short circuits between wires or insulation damage.



II: Efficient transmission capability: The harness is capable of efficiently transmitting 24V control power to ensure stable transmission of power signals and reduce energy loss and interference.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.
