TC-ER 3C*10AWG long-distance transmission anti-interfernce BDM4000 alternating current battery wire harness
1. Product description
TC-ER 3C*10AWG long-distance transmission anti-interfernce BDM4000 alternating current battery wire harness with 3 core cables, each cable
uses 10AWG wire. The relatively large diameter of the 10AWG wire enables it to withstand higher current loads and voltages, making it suitable for
high power applications. In addition, the use of 3-core cables enables the simultaneous transmission of multiple signals or power sources in the
harness.
TC-ER wire is designed with excellent interference resistance, which can resist external electromagnetic interference and ensure high-quality
signal transmission and power transmission. And the terminal drawing force test is greater than 180N.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
TC-ER 3C*10AWG long-distance transmission anti-interfernce BDM4000 alternating current battery wire harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Solar power system, industrial automation equipment, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

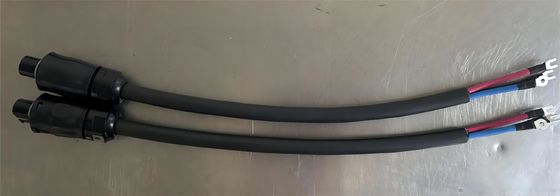

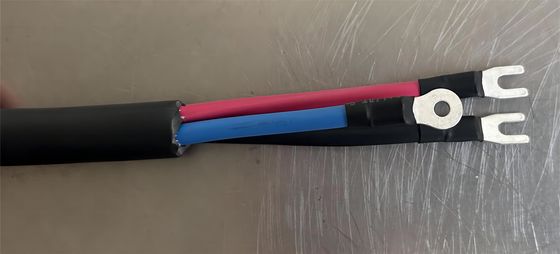

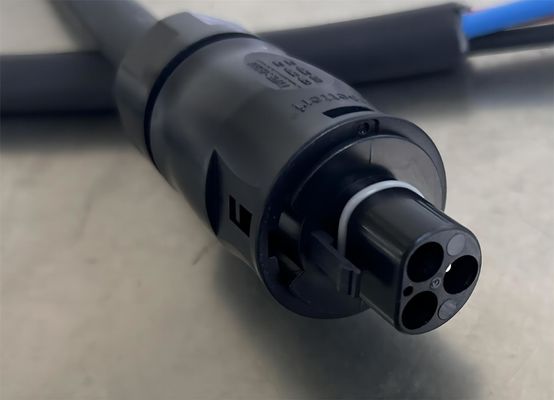

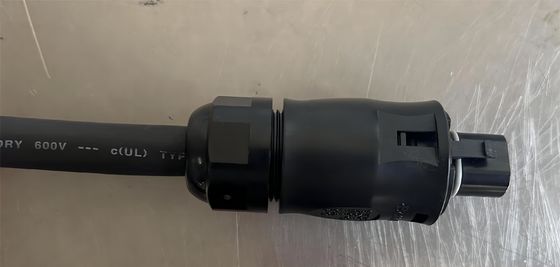

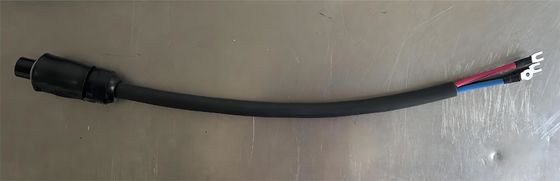

3. Picture of real products
4. Application area
I: Solar power system: The AC battery wiring harness can be used to connect the battery modules and inverters in the solar power system to realize the transmission and distribution of solar power.
II: Industrial automation equipment: AC battery wiring harnesses can be used to connect industrial equipment such as automated production lines, robots, and control systems to provide power supply and signal transmission.
III: Ev charging system: Used for power transmission between EV charging piles and vehicles, supporting high-power charging and long-distance transmission.
5. Features
I: Long distance transmission: The harness is designed to support long distance power or signal transmission with low voltage loss and signal attenuation.
II: Anti-interference: The wire harness adopts special anti-interference design to reduce the influence of external electromagnetic interference on electrical signals and provide better signal quality and stability.
III: TC-ER rating: TC-ER indicates that the harness meets the standards for use in cables in industrial environments with additional resistance to wear, oil, and corrosion.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
