24V DC 85% braided aluminum foil double shielding medical imaging harness -PCBA harness
1. Product description
24V DC 85% braided aluminum foil double shielding medical imaging harness -PCBA harness the double shielding design is adopted, in which
85% of the braided aluminum foil layer is used for the inner shielding, effectively blocking the interference of external electromagnetic interference
signals. The double shielding structure can provide higher anti-interference performance and ensure stable signal transmission. PCBA harness
integrates electronic components and circuit connections for signal conversion, amplification, filtering and other functions. It can simplify system
layout and connectivity and provide more reliable electrical connections.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
24V DC 85% braided aluminum foil double shielding medical imaging harness -PCBA harness |
|
Harness material |
Pass ISO13485,ISO9001 and ROHS certification |
|
Applicable departments |
Medical imaging, ambulance and other equipment |
|
Length, color |
Customization |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Ethylene oxide was used for sterilization |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

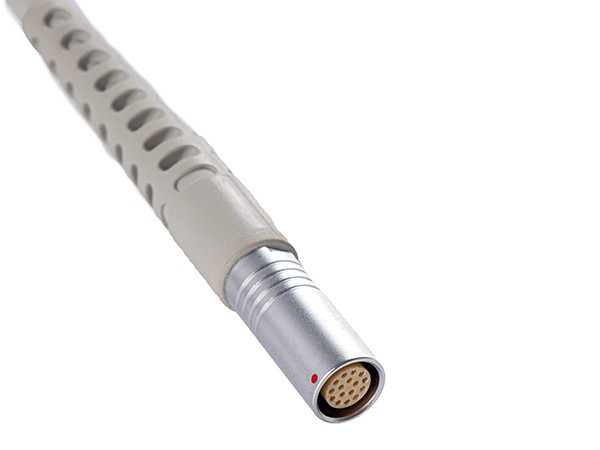

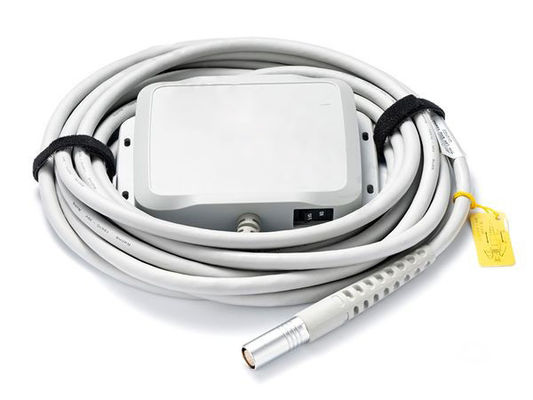

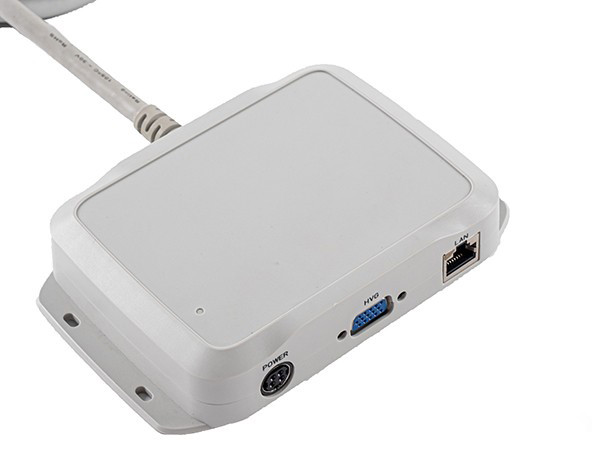

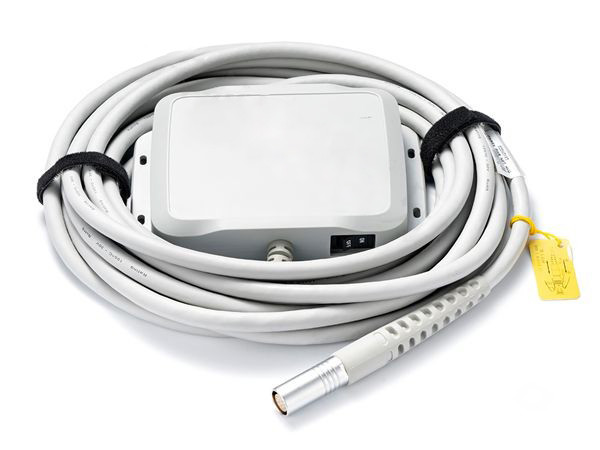

3. Picture of real products
4. Appliaction area
I: X-ray imaging equipment: Wire harnesses can be used to connect signal transmission and power supply between X-ray transmitters and receivers. It can transmit imaging signals and control signals to ensure accurate acquisition and processing of X-ray images.
II: CT scanner: Wire harnesses are used in CT scanners to connect signals between the scanner, console, and image display. It can transmit high quality image data and control commands to achieve accurate tomography and image reconstruction.
III: Magnetic resonance imaging (MRI) equipment: Wire harnesses can be used to connect signals between MRI scanners, control units, and image processing systems. It transmits high frequency signals and control signals to ensure high quality acquisition and processing of MRI images.
5. Feature
I: Double shielding design: The wire harness adopts double shielding design, in which 85% of the braided aluminum foil layer is used for inner shielding. This design can effectively block the interference of external electromagnetic interference signals, provide higher anti-interference performance, and ensure the stable transmission of signals.
II: 24V DC voltage: The harness is designed to transmit 24V DC power signals, which are suitable for low-voltage power connection and signal transmission in medical imaging equipment.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.
