300V insulated small diameter fan motor automotive wiring harness, Amphenol connector
1. Product description
300V insulated small diameter fan motor automotive wiring harness, Amphenol connector small diameter design, with small outside diameter and
flexibility, can be easily installed in a small space, to meet the requirements of automotive fan motor system for compact layout. With an insulation
grade of 300V, the harness can safely withstand voltages up to 300V and is suitable for power supply and signal transmission in automotive fan
motor systems. With good electrical insulation performance, it can effectively isolate and protect cables and connectors to prevent electrical
interference and short circuit problems.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
300V insulated small diameter fan motor automotive wiring harness, Amphenol connector |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
New energy vehicle fan |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

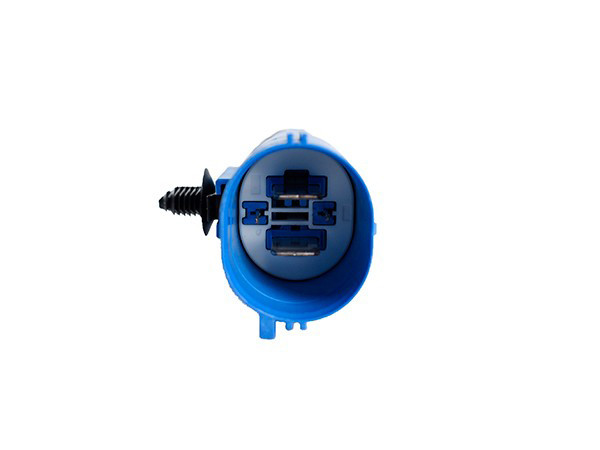

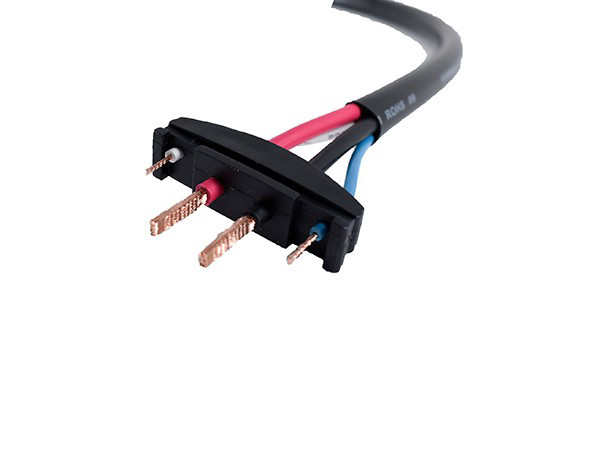

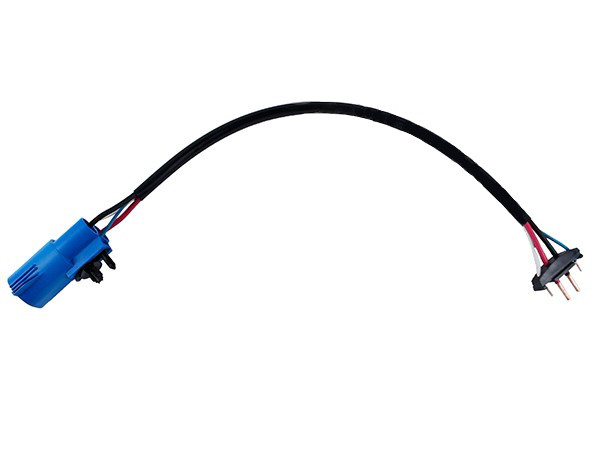

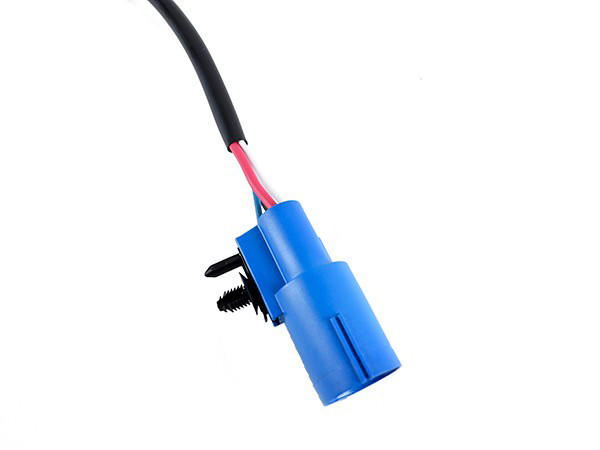

3. Picture of real products
4. Application area
I: Automotive fan systems: This harness is mainly used in automotive fan motor systems, including engine cooling fans, internal ventilation fans, and auxiliary radiator fans. It is used to connect the circuit between the fan motor, the power supply and the controller to achieve power supply and signal transmission.
II: Heat dissipation system: Wiring harnesses can also be applied to other heat dissipation systems of automobiles, such as transmission cooler fans, hydraulic oil cooler fans, etc. These systems require fan motors for heat dissipation, and wire harnesses are used to connect and control the operation of the fan motors.
III: Auxiliary equipment: Wiring harnesses can also be applied to auxiliary equipment of automobiles, such as auxiliary generator fans, air conditioning compressor fans, etc. These devices typically require power supply and signal transmission, and wire harnesses are used to connect circuits between these devices and the vehicle's electrical system.
5. Feature
I: High voltage insulation capability: The insulation level of the harness is 300V, which can safely withstand voltage up to 300V. It is suitable for power supply and signal transmission in automotive fan motor system.
II: Flexible wiring and installation: Flexible wiring harness design, easy wiring and installation, can meet the needs of different car models and fan motor systems.
III: High temperature resistance: The wire harness is made of materials with strong high temperature resistance, which can maintain stable performance under high temperature environment and adapt to the high temperature environment inside the automobile engine compartment.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
