300V 600mm Medical Monitor Wire Harness High Frequency Transmission OEM ODM

300V white 600mm high frequency transmission medical monitor wire harness,oem,odm

1. Product description

  300V white 600mm high frequency transmission medical monitor wire harness,oem,odm the exterior adopts white appearance, which meets the

aesthetic requirements of medical equipment. The white appearance also helps to reduce heat absorption and maintain the temperature stability of

the harness. Medical monitoring harness usually uses high quality materials, such as medical grade silicone, polyvinyl chloride (PVC), polyimide

(PI), etc. These materials have good insulation properties, chemical corrosion resistance, and high temperature resistance to meet the

requirements of medical devices. In order to reduce electromagnetic interference and signal interference, the medical monitoring wire harness

adopts shielding design. The shielding layer can be aluminum foil layer, braided layer or composite layer, which is used to block the interference of

external interference signals.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

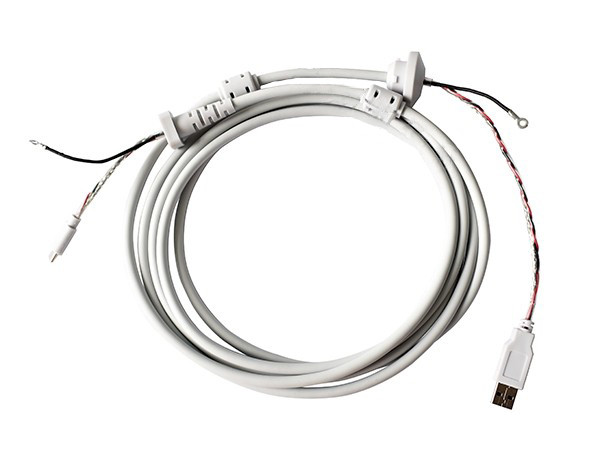

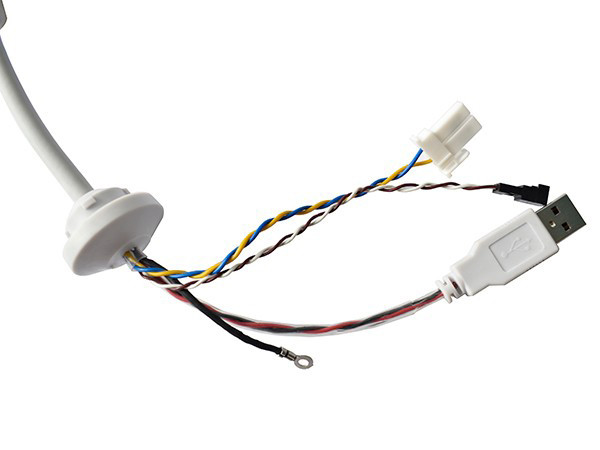

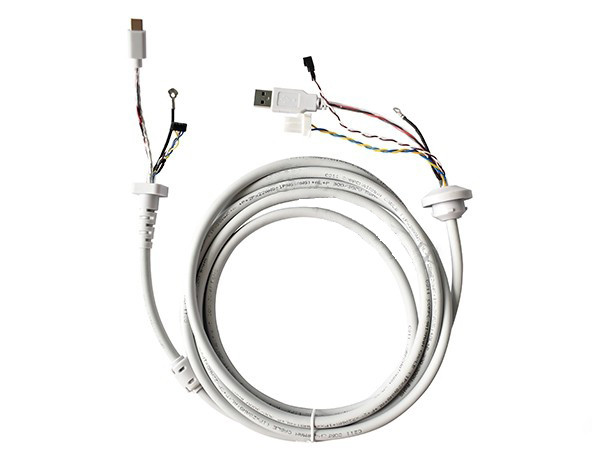

3. Picture of real products

4. Application area

I: Hospital monitoring equipment: The wiring harness can be used in various hospital monitoring equipment, such as multi-parameter monitor, electrocardiogram machine, blood pressure monitor, ventilator, etc. They need to transmit high-frequency signals and data to monitor the physiological parameters of patients and provide accurate medical data.

II: Medical imaging equipment: Medical imaging equipment, such as X-ray machines, CT scanners, MRI equipment, etc., usually require high-frequency transmission wire harnesses to transmit images and signals. These harnesses can be used to connect probes, sensors and imaging devices, ensuring high-quality signal transmission and accurate image acquisition.

III: Cardiac monitoring devices: Cardiac monitoring devices, such as rhythm monitors and pacemakers, need to accurately monitor and transmit cardiac signals and data. High-frequency transmission wire harnesses can be used to connect ECG electrodes, pacemakers, and monitoring devices, ensuring reliable signal transmission and heart monitoring.

5. Feature

I: High voltage and high frequency transmission capability: The harness is designed for use in high voltage environments and is capable of withstanding up to 300V. At the same time, it has a good high frequency transmission capability, suitable for medical monitoring equipment needs to transmit high frequency signal applications.

II: Customized design: The supplier provides OEM (original equipment manufacturer) and ODM (Original design manufacturer) services for customized production according to the customer's needs and specifications. This means that wiring harnesses can be individually tailored to customer requirements, including size, material, connector type, color, and more.

III: High frequency transmission performance: The design of the harness optimizes the characteristics of high frequency signal transmission to ensure stable signal transmission and minimum signal loss. This is important for the need for high quality data transmission and accurate monitoring.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.
