500V 12PIN Welded Cable Plug Insulated Metal Shielded Power Tool Harness IP67 ODM OEM

500V 12PIN welded cable plug insulated metal shielded power tool harness, IP67,ODM,OEM

1. Product description

  500V 12PIN welded cable plug insulated metal shielded power tool harness, IP67,ODM,OEM equipped with 12 pin welded cable plug for

connecting drill to power supply or other control device. This plug design can provide stable connection and transmission effect, ensuring reliable

power and signal transmission. The wire harness has a metal shielding layer to suppress the influence of external electromagnetic interference on

signal transmission. Metal shielding can effectively reduce the interference of interfering signals and provide more reliable signal quality. The wiring

harness is coated with insulating material to provide good electrical insulation performance and effectively prevent short circuit and electric shock

risk between cables.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

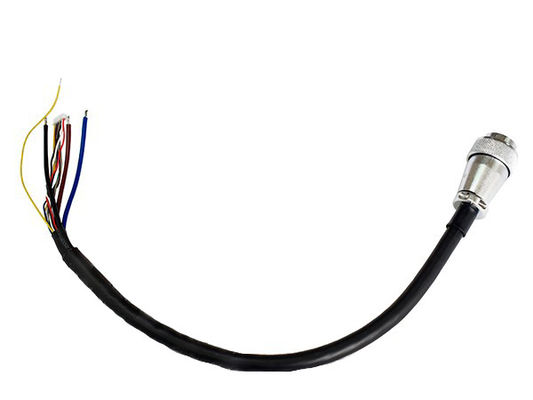

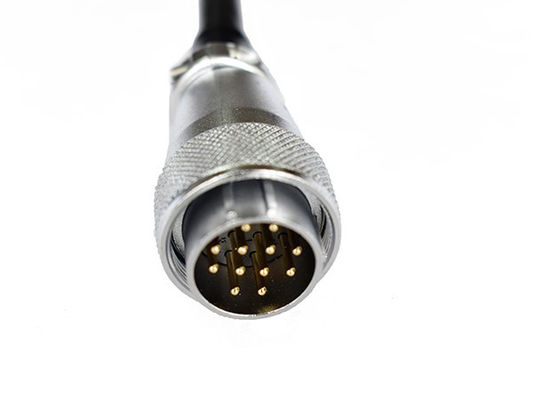

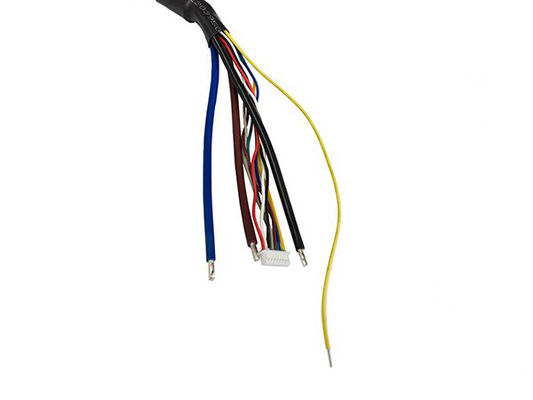

3. Picture of real products

4. Application area

I: Power tools: The harness is suitable for various types of power tools, such as electric drill, electric screwdriver, electric hammer, etc. It provides power transmission and signal control functions so that the tool can operate properly and receive operation instructions.

II: Building and construction: In the building and construction industry, power tool wiring harnesses are widely used in drilling, screw setting, drilling, nail hammering, and other jobs. The harness plays the role of power transmission and signal control in these applications, enabling the tool to perform various tasks efficiently.

III: Automotive Repair and maintenance: In the automotive repair and maintenance industry, power tools are used for tasks such as removing and installing components, tightening screws, and drilling holes. Wire harnesses provide power and signal transmission in these applications, ensuring proper tool functioning and operation.

5. Feature

I: High voltage tolerance: The harness is designed to withstand voltages up to 500V to meet the power requirements in power drill applications. It has sufficient insulation properties to safely transmit high voltage currents and ensure proper operation of the drill.

II: High frequency interference suppression: The metal shielding layer of the wire harness can not only resist external electromagnetic interference, but also help to suppress the propagation of high frequency interference signals. This is very important for high-frequency equipment such as electric drills to ensure the stability and reliability of signal transmission.

III: Bending and flexible performance: The harness has good flexible performance and can move freely in the bending and tortuous environment, adapting to various working postures and space restrictions when the electric drill is used. This helps improve work efficiency and reduces the risk of damage to the harness.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.
