XLPE UL1015 DC1500V High Voltage Power Customized Harness Cable Assembly EV10MM²

High voltage power EV10MM²XLPE UL1015 DC1500V power harness,customized harness cable assembly

1. Product description

  High voltage power EV10MM²XLPE UL1015 DC1500V power harness,customized harness cable assembly XLPE (cross-linked polyethylene)

insulation material is used. XLPE has good insulation properties and heat resistance, which can maintain stable electrical performance in high

temperature environment. The wire size of the harness is EV10MM², indicating that the cross-sectional area of the wire is 10 square mm. Larger

wire sizes can withstand higher current loads and reduce resistance and power losses. The harness is suitable for high voltage levels up to 1500V

direct current (DC). This high voltage level is commonly used in high voltage power systems and is able to provide sufficient voltage to meet the

needs of specific applications.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

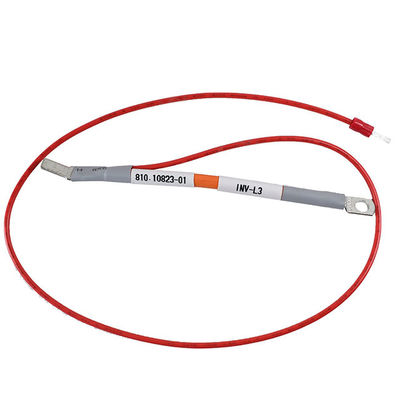

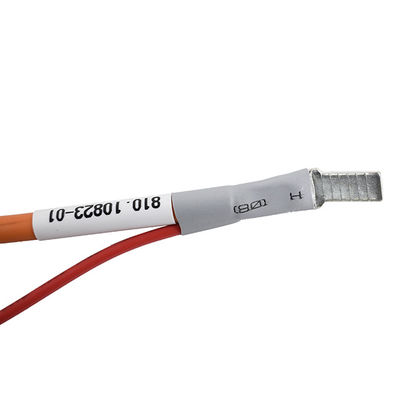

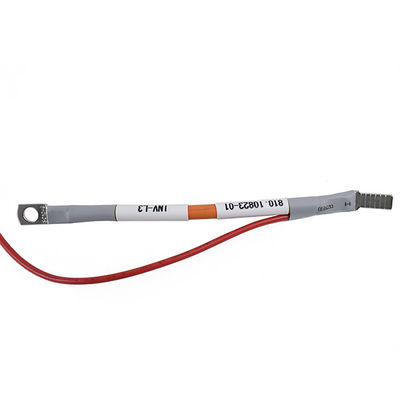

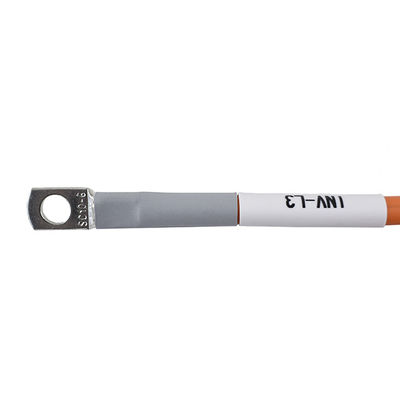

3. Picture of real products

4. Application area

I: Electric vehicles: In electric and hybrid electric vehicles, high-voltage power wiring harnesses are used to connect the battery pack to the electric drive system. It can withstand high voltage and current, and provide stable power transmission to ensure the normal operation of the vehicle's power system.

II: Solar systems: High voltage power harnesses are used in solar panels and inverter systems. The harness transmits the direct current energy generated by the solar panels to an inverter, which converts it into AC electricity. These harnesses need to be high voltage and high temperature resistant to cope with the working environment of the solar system.

III: High voltage power supply system: such as high voltage power supply device, high voltage test equipment, etc. These systems need to provide a stable high voltage power supply and require the power harness to be able to withstand high voltage and high current to ensure reliable power transmission and safe operation.

5. Features

I: High voltage: This power harness is suitable for the high voltage level of 1500V direct current (DC). It can provide sufficient voltage to meet the needs of specific applications and is suitable for high voltage power supply systems.

II: Large wire size: The wire size of the power harness is EV10MM², indicating that the cross-sectional area of the wire is 10 square mm. Larger wire sizes can withstand higher current loads and reduce resistance and power losses. This helps to ensure the efficiency and stability of power transmission.

III: UL1015 certification: The power harness complies with UL1015 certification standards. UL1015 is a wire and cable standard that ensures wiring harnesses meet UL's safety and performance requirements. This means that the harness has passed rigorous testing and evaluation, meets the relevant safety standards, and can be used in the appropriate application.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.

IV: Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
