High Voltage UV Radiation Resistant Insulated PV Wiring Harness PV-UL4703

50 pcs
High Voltage UV Radiation Resistant Insulated PV Wiring Harness PV-UL4703
Features Gallery Product Description Request A Quote
Product Name: High Voltage UV Radiation Resistant Insulated PV-UL4703 PV Wiring Harness
Application Area: Photovoltaic Equipment
Wire Harness Type: PV-UL4703
Wire Core Material: Copper
Processing Technic: Riveting, Pressing And Assembling
Connector: Male Terminal, Type 250 Insulated Terminal Blue (KST)
Color: Red
Length: 600mm
Rated Voltage: DC300V, 10 Milliseconds
Conductor Resistance: ≤3Ω
Insulation Resistance: ≥5MΩ
MOQ: 50 Pcs
Packing: Cartons
OEM / ODM: Accept
High Light:

600mm PV Cable Harness


UV Radiation Resistant PV Wiring Harness


High Voltage Insulated PV Wiring Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,,ROHS2.0
Model Number: PV wiring harness
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

High voltage UV radiation resistant insulated PV-UL4703 PV wiring harness


1. Product description


  High voltage UV radiation resistant insulated PV-UL4703 PV wiring harness copper wire material is used because copper has good electrical


conductivity and corrosion resistance, which can effectively transmit electrical energy. The insulation material of the PV-UL4703 harness is used to


isolate and protect the wires. The insulation materials used include polyethylene (PE) and cross-linked polyethylene (XLPE), etc. These materials


have good electrical insulation properties and weather resistance, and are able to provide long-term stable insulation protection in outdoor


environments. The outer sheath of the PV-UL4703 wiring harness is usually weather-resistant and UV-resistant polyvinyl chloride (PVC) material.


This material is effective against UV radiation, humidity, chemicals and mechanical stress, providing additional protection and durability.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2. Product information


Product Name

High voltage UV radiation resistant insulated PV-UL4703 PV wiring harness

Product certification

Pass ISO13485,ISO9001,ROHS2.0and UL certification

Product application

Photovoltaic equipment

Product superiority

Corrosion resistance, waterproof,high and low temperature resistance, UV aging resistance, etc

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service



After-sales service

Authentic guaranteed, factory outlets center

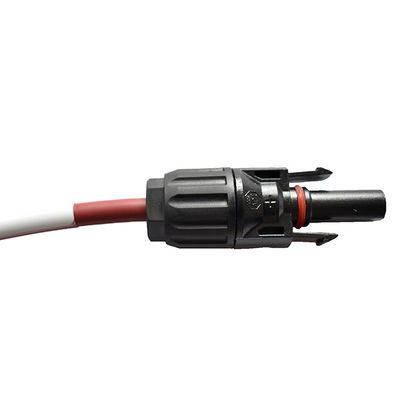

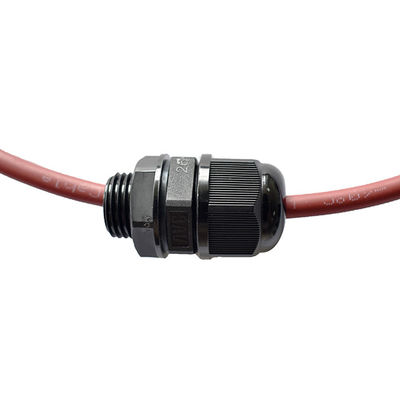

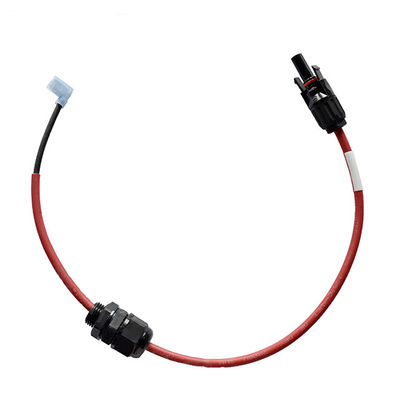

3. Picture of real products


High Voltage UV Radiation Resistant Insulated PV Wiring Harness PV-UL4703 0


4. Application area


I: Solar photovoltaic power plants: The PV-UL4703 harness can be used in large solar photovoltaic power plants to connect the DC electrical connection between solar panels and inverters. They are able to withstand high voltage outputs, resist UV radiation, and provide reliable electrical insulation protection.


II: Residential solar systems: For residential solar systems, the PV-UL4703 wiring harness can be used to connect solar panels and inverters to convert solar energy into usable electrical energy. Its UV radiation resistance and electrical insulation make it a reliable and safe choice for outdoor installation and long-term use.


III: Commercial and industrial buildings: Solar PV systems installed in commercial and industrial buildings typically require electrical connections over long distances. The PV-UL4703 harness is suitable for these applications and is capable of providing efficient electrical connections on the roof of a building or other suitable locations for solar energy collection and utilization.





























5. Features


I: High voltage carrying capacity: The PV-UL4703 harness is designed to withstand high DC voltages and efficiently transmit high voltage outputs in solar PV systems. This high voltage carrying capacity makes it suitable for large-scale PV plants and other high-power solar systems.


II: UV radiation resistance: The PV-UL4703 harness uses special materials and structures to effectively resist the effects of UV radiation. In outdoor environments, UV radiation may cause aging, deterioration or performance degradation of the harness, but the anti-UV radiation characteristics of the PV-UL4703 harness ensure a long and stable service life.


III: High temperature resistance: The PV-UL4703 harness has good high temperature resistance and can operate stably in the high temperature environment of the solar photovoltaic system for a long time. They are able to withstand a certain amount of heat without causing performance loss or failure.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.


IV: Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
