IP67 300V Corrects Deviation From Controller Harness UL2468 26# White Printed Blue Bar

50 pcs
IP67 300V Corrects Deviation From Controller Harness UL2468 26# White Printed Blue Bar
Features Gallery Product Description Request A Quote
Product Name: UL2468 26# White Printed Blue Bar IP67 300V Corrects Deviation From Controller Harness
Application Area: Internal Connection Line Of Deflector
Wire Type: UL2468 26# White Print With Blue Stripe
Exterior Of Wire Harness: Heat Shrink Tubing
Processing Technic: Riveting, Welding, Assembly
Connector: Cable Plug 10P Male Head, Terminal
Waterproof Grade: IP67
Color: Blue And White
Length: 500mm
Rated Voltage: DC300V, 10 Milliseconds
Insertion And Removal Cycle: ≥5000 Times
Conductor Resistance: ≤3Ω
Insulation Resistance: ≥5MΩ
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
High Light:

IP67 Cable Wire Harness


Corrects Deviation Controller Harness


Controller Harness 300V

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: Customized
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: 1-2 week
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

UL2468 26# White printed blue bar IP67 300V corrects deviation from controller harness


1.Product description


  UL2468 26# White printed blue bar IP67 300V corrects deviation from controller harness the Wire is 26# in accordance with the American Wire


Gauge (AWG) standard. The wire is approximately 0.4049 mm (0.016 in) in diameter and is suitable for low current control circuits. The cable


harnesses are IP67 rated. IP67 indicates that the harness is effectively dust-proof and can be immersed in water for a short time without being


affected. This level of protection enables the harness to operate under harsh environmental conditions and provides reliable performance. The


cable harnesses are designed for correction controller applications. Correction controllers are commonly used in automation systems to adjust,


stabilize, or calibrate the position and orientation of materials or products. The cable harness provides a reliable electrical connection to support


the normal operation of the correction controller.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2.Product information


 Product Name

UL2468 26# White printed blue bar IP67 300V corrects deviation from controller harness

Harness material

Pass ISO13485,ISO9001,UL and ROHS certification

Product application

Internal connection line of deflector

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Electrical performance test, flame retardant test,connectivity testing and reliability testing



After-sales service

Free warranty for 6 months

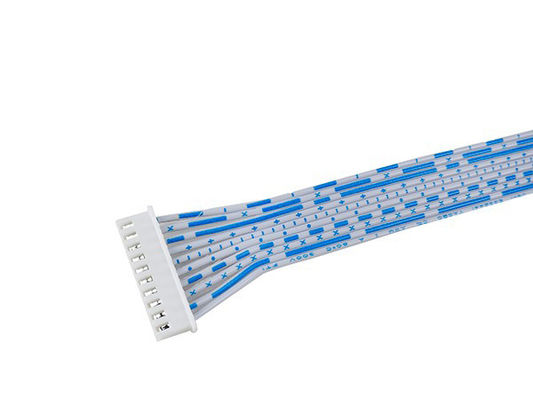

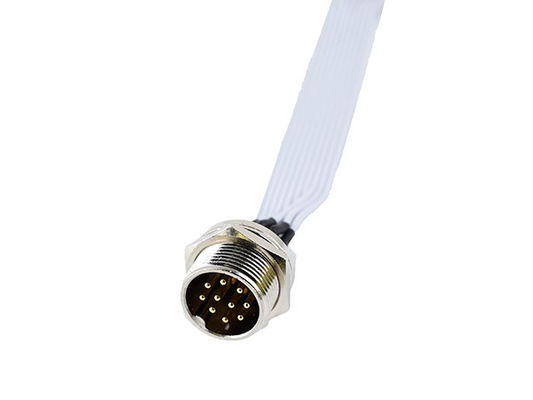

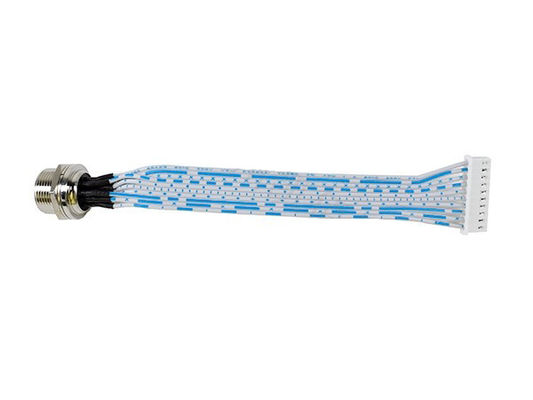

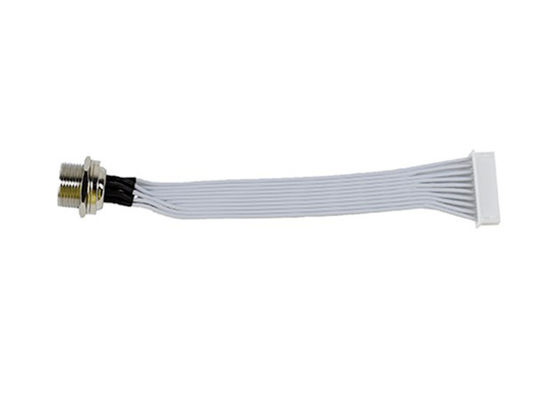

3. Picture of real products


IP67 300V Corrects Deviation From Controller Harness UL2468 26# White Printed Blue Bar 0


4. Application area


I: Automation system: Deviation correction controller wire harnesses are widely used in various automation systems, including industrial automation, robot systems, etc., for adjusting and controlling the position and direction of objects to achieve automated production and operation.


II: Printing industry: In printing equipment, the correction controller wiring harness can be used to adjust the paper position and ensure the accurate alignment and quality of the print.


III: Textile industry: In textile machinery, the correction controller wire harness can be used to adjust the position of the fabric so that it remains flat and maintains good alignment and uniformity during weaving and printing and dyeing.


5. Features


I: Electrical connection: The cable harness connects the correction controller to other devices or systems by providing an electrical connection. It transmits control signals and power supply currents to ensure that the correction controller can accurately sense and respond to external inputs for the purpose of adjusting and controlling the material position.


II: Signal transmission: The cable harness transmits control signals and transmits instructions from the correction controller to the actuator or execution device. These signals can include position adjustment, speed control, force feedback, etc. Through the transmission of the wire harness, the correction controller can accurately communicate and coordinate with other systems or equipment.


III: Power supply: The cable harness provides power supply for the rectifying controller to ensure its normal operation. Rectifying controllers typically require a supply voltage to drive motors, sensors, and other actuators. By connecting the power cord, the harness transmits the power supply current to the rectifying controller, providing it with the required energy.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.


IV: Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness. We need you to offer the Trademark Authorization to us.
