EV15E 10mm²1500V 105℃ silicone rubber black 250mm, waterproof, UL94V0 DC power line
1. Product description
EV15E 10mm²1500V 105℃ silicone rubber black 250mm, waterproof, UL94V0 DC power line silicone rubber is used as insulation material,
which has excellent abrasion resistance, corrosion resistance and oil resistance, as well as good flexibility and durability. With a cross-sectional
area of 10mm², the harness has a large conductive capacity and low resistance, enabling it to transmit a large current. The harness is rated at
1500V, which means it can withstand high voltage applications. This makes this harness ideal for applications that require high voltage
transmission, such as industrial equipment, energy systems, etc.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
EV15E 10mm²1500V 105℃ silicone rubber black 250mm, waterproof, UL94V0 DC power line |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
High power equipment |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

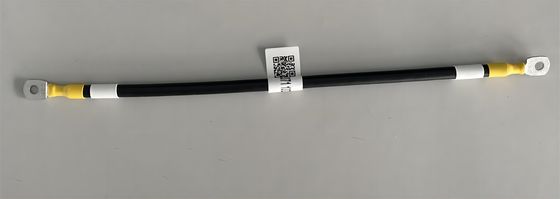

3. Picture of real products
4. Application area
I: Electric Vehicles: Because the power harness is capable of high voltage (1500V) and high current (10A), as well as high temperature resistance (105 ° C) and water resistance, it is suitable for electric vehicle power transmission system, such as battery pack to electric motor connection, charging system, etc.
II: Industrial Automation: The high voltage and high current capabilities of this power harness make it suitable for high-power equipment in the field of industrial automation, such as robots, automated production lines, and factory equipment. The waterproof feature enables it to work reliably in wet and harsh environments.
III: New energy field: The power harness is suitable for power transmission and connection in new energy systems such as solar panels and wind power equipment. It can withstand high voltage and current, and has high temperature resistance and water resistance to adapt to different environmental conditions.
5. Feature
I: High flame retardant: The outer sheath material of the wire harness is UL94V0 certified, which has high flame retardant performance, can slow the spread of fire and provide higher safety.
II: High temperature resistance: The high temperature resistance grade of the harness is 105℃, which can work normally in high temperature environment without damage, and is suitable for high temperature applications.
III: Weather resistance and anti-aging performance: The power harness uses silicone rubber as insulation material, silicone rubber material has excellent weather resistance and anti-aging performance, can run stably for a long time under harsh environmental conditions.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
