Waterproof 2 Round Pin Power Plug Power Supply Harness AC Red Black Silicone Power Line

50 pcs
MOQ
Negotiation
Price
Waterproof 2 Round Pin Power Plug Power Supply Harness AC Red Black Silicone Power Line
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: AC Red Black Silicone Power Line EV2.5MM²16A Waterproof 2 Round Pin Power Plug Power Supply Harness
Application Area: Energy Storage Cabinet
Processing Technic: Riveting, Welding, Injection Molding, Dispensing, Assembly
Connector: 3-core Plastic Shell,16A European Waterproof Ground 2 Plug
Wire Type: EV15E 2.5mm²
Color: Black And Red
Length: 2000mm
Withstand Voltage: 300V
Flame Retardant Rating: UL94-V0
Waterproof Grade: IP67
Insulation Resisitance: ≥5MΩ
Conductor Resistance: ≤3Ω
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
Code: FDL2162375
High Light:

Waterproof Plug Power Supply Harness 300V

,

Round Pin Plug Power Supply Harness

,

AC Silicone Power Line 2000mm

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS
Model Number: EV cable
Payment & Shipping Terms
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

AC red black silicone power line EV2.5MM²16A waterproof 2 round pin power plug power supply harness



1. Product description



  AC red black silicone power line EV2.5MM²16A waterproof 2 round pin power plug power supply harness silica gel is used as insulation material,



which has good high temperature resistance. Silica gel has the characteristics of heat resistance, cold resistance, aging resistance and chemical



corrosion resistance, so that the power supply harness can operate stably in the harsh working environment. The power harness is equipped with



a 2-pin power plug, which is usually used to connect to an AC power outlet. The plug is designed to comply with relevant safety standards,



ensuring stable power connection and current transmission. The power harness has a waterproof design and can be used in wet and multi-



humidity environments, effectively preventing moisture from invading the wires and plugs, improving the reliability and durability of the harness.



  Feel free to contact with us, if you ever needed to consider your wire harness solution.



2. Product information



Product Name

AC red black silicone power line EV2.5MM²16A waterproof 2 round pin power plug power supply harness

Harness material

Pass ISO13485,ISO9001,UL and ROHS certification

Product application

Energy storage cabinet

Length, color

Customized according to customer needs

Samples

Samples confirmed first before mass production

Serve

Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Salt spray test: ≥72H,Conduction rate 100%

MOQ

Negotiable

After-sales service

Authentic guaranteed, factory outlets center

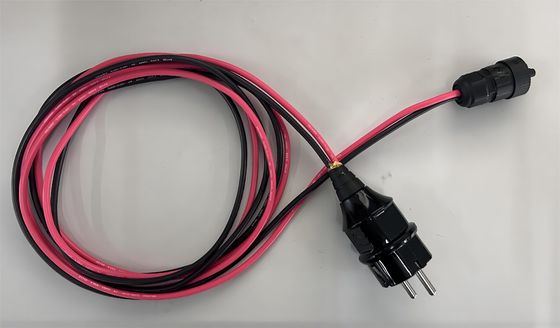

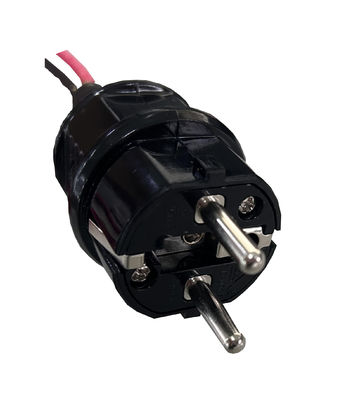

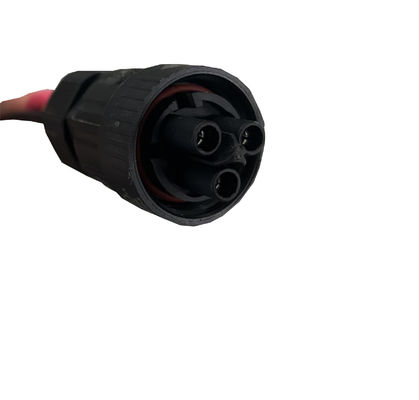

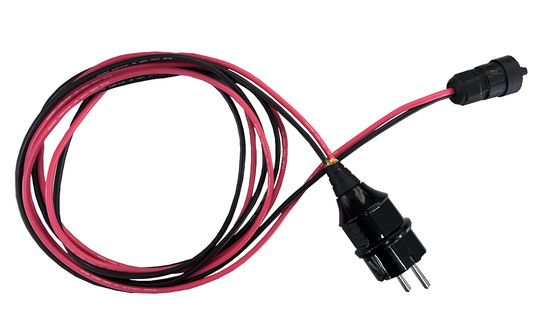

3. Picture of real products



Waterproof 2 Round Pin Power Plug Power Supply Harness AC Red Black Silicone Power Line 0



4. Application area



I: Industrial equipment: This kind of power harness is suitable for all kinds of industrial equipment, such as motor, pump, fan, sensor, etc. Industrial environments usually have high temperature and humidity, and the waterproof and high temperature resistance characteristics enable power harnesses to operate reliably in these demanding environments.



II: Power tools: AC red and black silica gel power harness is often used in power tools, such as electric drill, grinding turbine, electric saw, etc. These tools typically require a high power supply, and a 16-amp current transfer capability can meet their requirements.



III: Lighting equipment: AC red and black silica gel power harness is also often used in lighting equipment, such as indoor lamps, outdoor lighting, landscape lighting, etc. Waterproof performance enables the harness to withstand wet and multi-humidity conditions in outdoor environments, ensuring the normal operation of lighting equipment.



5. Feature



I: High current and VOLTAGE rating: The power supply harness is rated at 16 amps and 300 volts. It can provide sufficient current and voltage to meet the needs of various high-power devices.



II: Flame retardant material: The outer sheath material of the power harness conforms to UL94V0 flame retardant grade standard. This means that it has excellent flame retardant properties, can self-extinguishing and does not produce drips, which plays an important role in preventing the spread of fire and protecting the safety of equipment.



III: IP67 protection rating: This power harness has an IP68 protection rating, indicating that it has the highest level of dust and water resistance. It is completely protected from dust entry and can maintain normal operation when immersed in water for a long time, suitable for harsh outdoor and humid environments.



6. Main products



I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.



II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.



III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compress or harness.
