EV15E 70MM² 1500V orange silicone wire copper tube terminal waterproof tin plating automobile wiring harness
1. Product description
EV15E 70MM² 1500V orange silicone wire copper tube terminal waterproof tin plating automobile wiring harness made of orange silicon wire,
silicon material has good high temperature resistance and voltage resistance performance. It can withstand heat radiation and electrical pressure
in high temperature environment to ensure the stability and durability of automotive wiring harnesses. With a wire diameter of 70MM², the harness
has sufficient conductive capacity and current carrying capacity for high-power electric vehicle systems. It can meet the demand of large current
transmission and ensure the efficient transmission of electric energy. The two ends of the automotive wire harness are electrically connected using
copper tube terminals, which are tinned to help prevent oxidation and corrosion. The copper material has excellent electrical conductivity and
corrosion resistance. The terminals are waterproof, which can effectively prevent moisture and moisture from entering the wiring harness and
provide reliable waterproof performance.The wire sequence of the automobile wiring harness is series.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
EV15E 70MM² 1500V orange silicone wire copper tube terminal waterproof tin plating automobile wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Energy storage cabinet |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

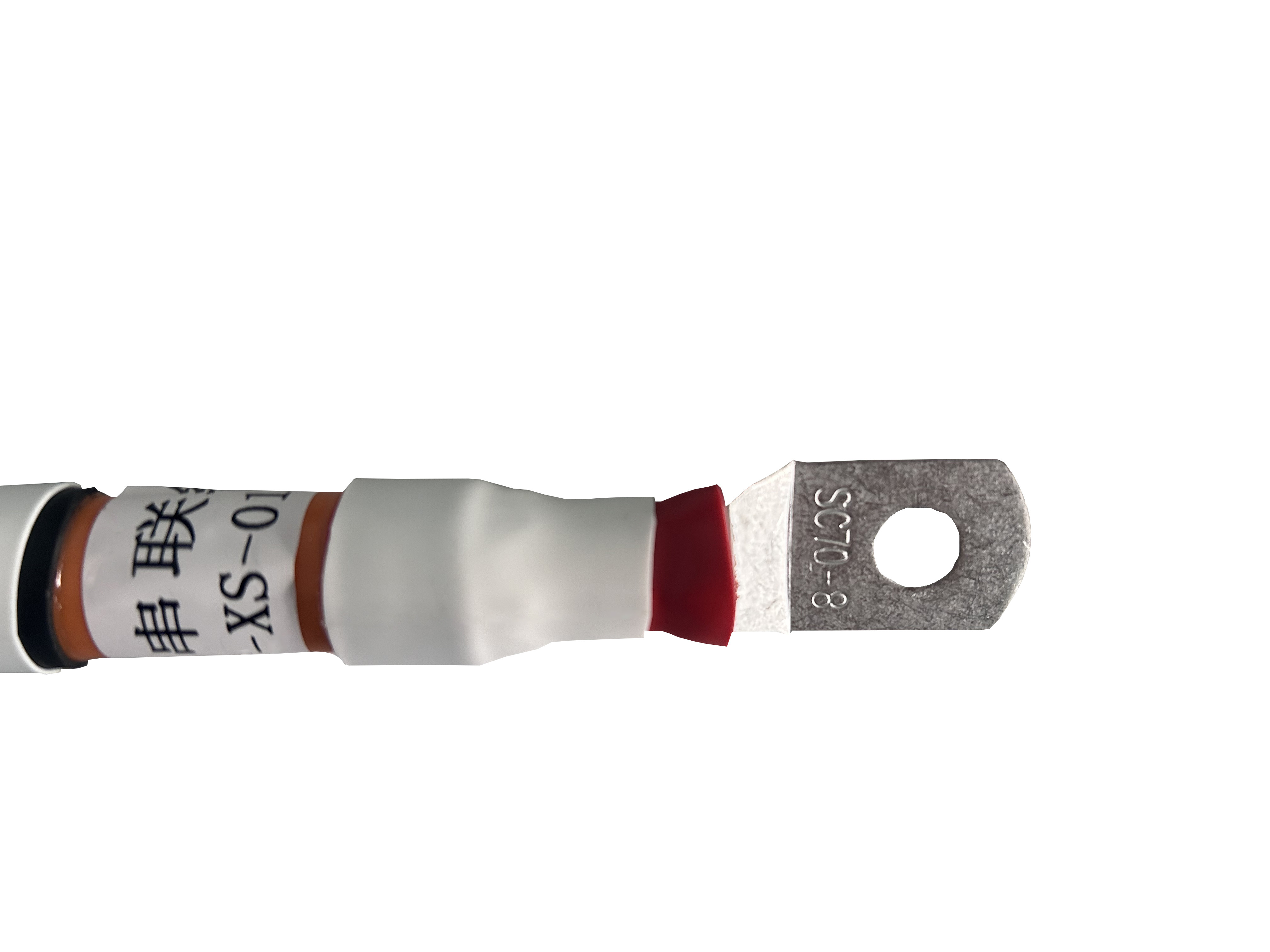

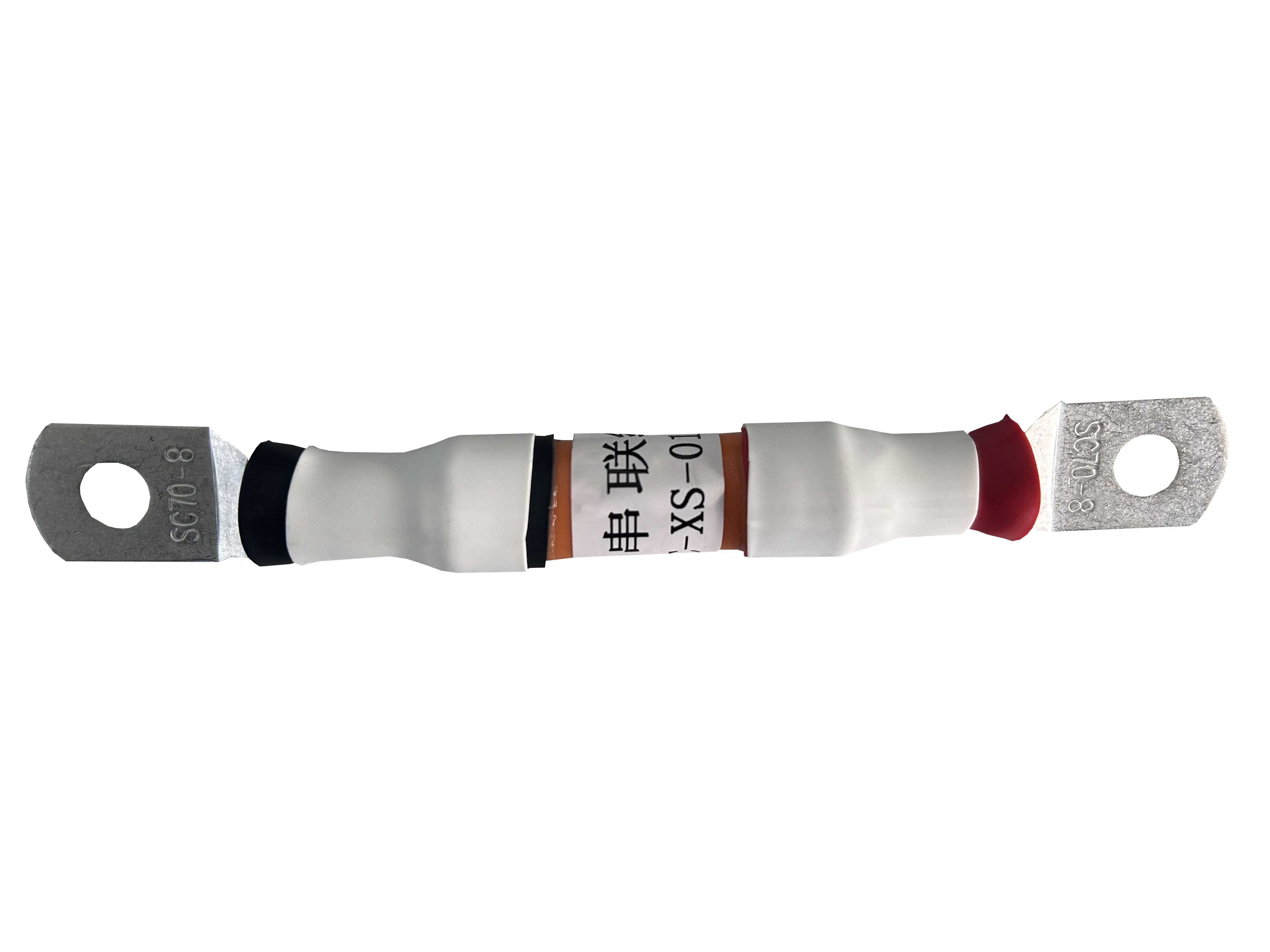

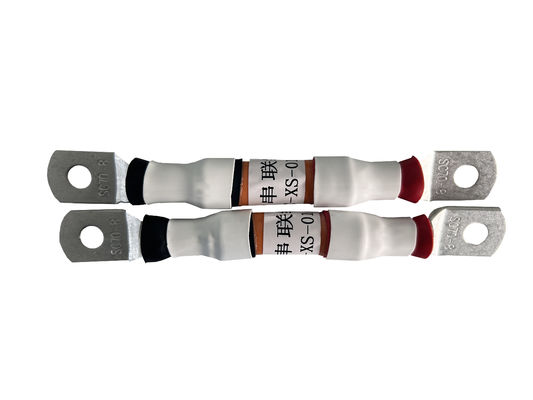

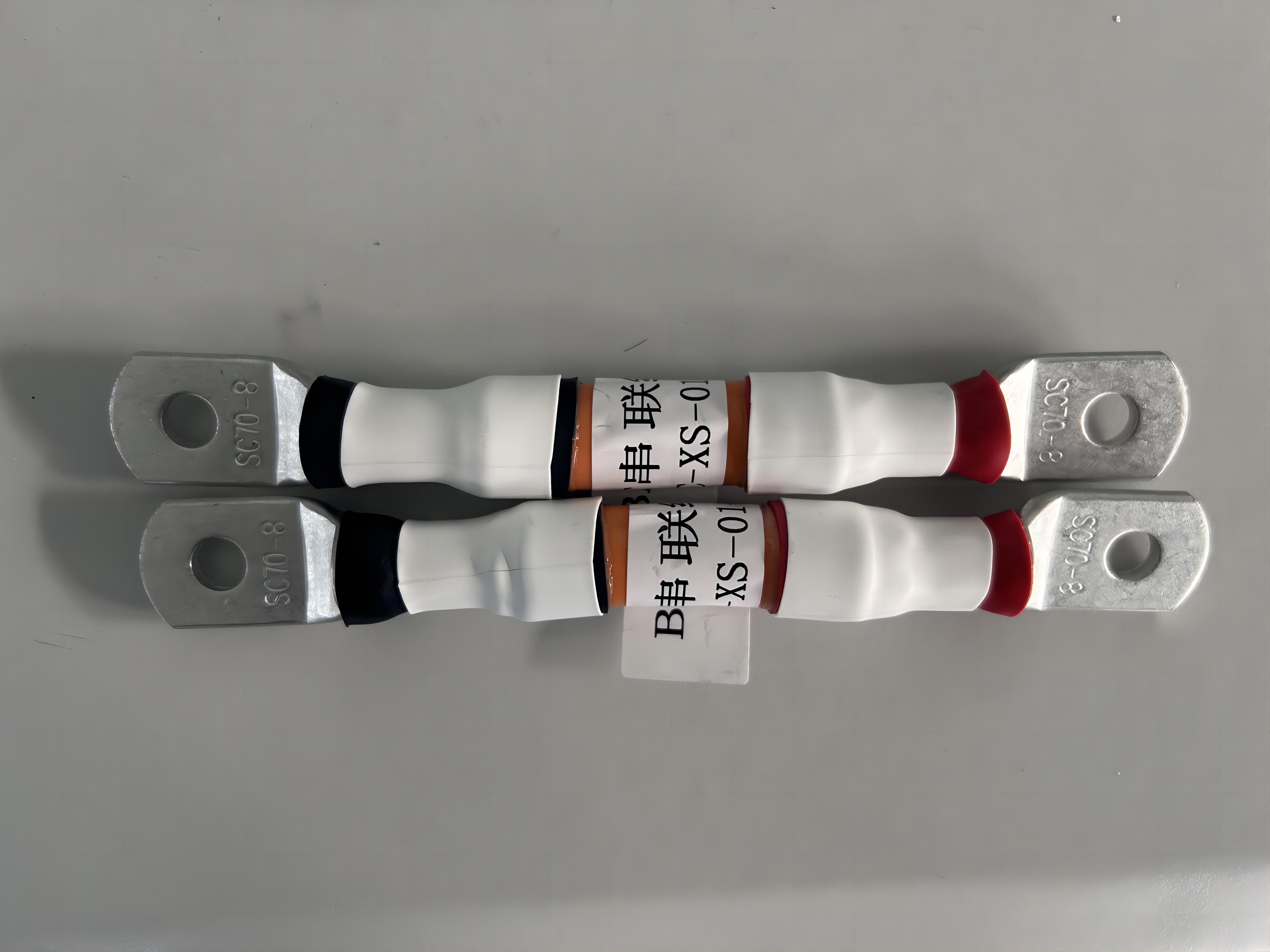

3. Picture of real products
4. Application area
I: Battery system: The automotive wiring harness can be used in the high-voltage battery system of electric vehicles. It can connect the positive and negative electrodes of the battery pack with other components, such as electric drive system, electric control system, etc. The high voltage level and sufficient wire diameter of the harness can meet the high power transmission requirements of the battery system.
II: Electric drive system: The automotive wiring harness can be applied to the electric drive system of electric vehicles, including motors, inverters, controllers, etc. Wiring harnesses connect the power, signal, and control lines of these components, ensuring that they work properly and provide stable power output.
III: Charging system: The harness can be used in the charging system of electric vehicles, including AC charger and DC fast charging pile. The wire harness can connect the charging pile with the charging interface of the vehicle, transmit the charging current and control signal, and realize the safe and efficient charging process.
5. Feature
I: High voltage grade: The vehicle harness is rated at 1500V, which can meet the high voltage power supply requirements in electric vehicle systems. The harness can safely transmit high voltage power to ensure the reliability and security of the system.
II: Large wire diameter size: The wire diameter of the automotive wiring harness is 70MM², which has sufficient conductive capacity and current carrying capacity for high power electric vehicle systems. The harness can transmit large current to ensure the efficient transmission and stability of electric energy.
III: Tinned treatment: The copper tube terminals of this automotive wiring harness are tinned to help prevent oxidation and corrosion and improve the stability and reliability of electrical connections. The tin coating also provides additional protection against corrosion and extends the life of the harness.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
