1500V 95MM² single core elbow connector for efficient transmission of high voltage power automotive wiring harness
1. Product description
1500V 95MM² single core elbow connector for efficient transmission of high voltage power automotive wiring harness a 22AWG wire is used, indicating that the cross-sectional area of the wire is 22 meters, with moderate conductive capacity and load capacity. Conductors of this specification are often used in low voltage and low current applications and are suitable for electronic devices and control systems. Both ends of the harness are equipped with elbow connectors, allowing the harness to be bent and connected in a limited space. Elbow connectors are flexible and adjustable to meet the needs of different directions and bending angles. The automotive harness is a single-core design, which means it contains a central wire that is used to transmit power signals. Single-core designs are commonly used in high voltage and high current applications to ensure stability and reliability of power transmission.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
1500V 95MM² single core elbow connector for efficient transmission of high voltage power automotive wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Urban mass transit |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

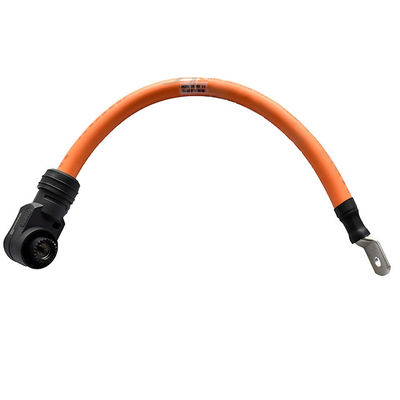

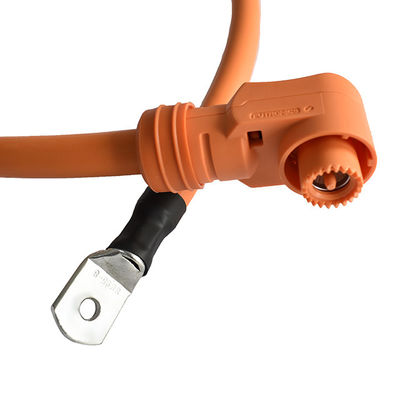

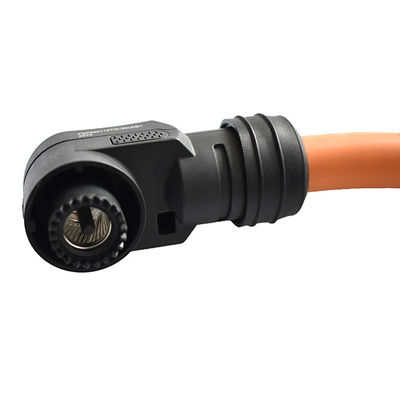

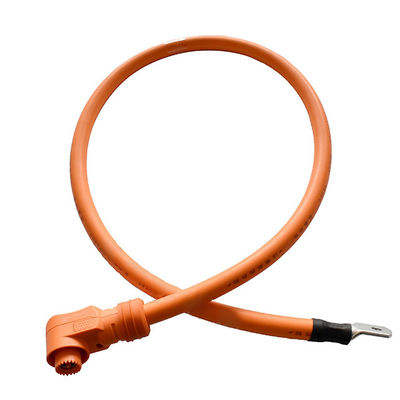

3. Picture of real products
4. Application area
I: Electric vehicle (EV) : Electric vehicles use high-voltage power systems to drive motors and supply electricity to other vehicle systems, such as battery packs, charging systems, and auxiliary appliances. The harness can be used to connect these critical components, ensuring efficient power transmission and reliability.
II: Hybrid electric vehicle (HEV) : Hybrid electric vehicles combine the powertrain of an internal combustion engine and an electric motor and require high-voltage electrical wiring harnesses to connect the electric motor, battery pack, and power management system. This harness provides efficient power transmission and meets the demand for high-voltage power in the hybrid power system.
III: Other high voltage power systems: In addition to the automotive sector, the 1500V 95MM² single core elbow connector high voltage power harness can also be used in other high voltage power systems, such as industrial equipment, renewable energy power stations and grid transmission. These areas require high voltage power transmission and reliable connection performance.
5. Feature
I: Large cross section wire: This automotive harness uses a 95 square millimeter (MM²) cross section of wire for lower resistance and better current transfer capability. Such large cross-section wires are able to withstand high current loads, ensuring efficient transmission of high voltage power.
II: Single core design: The automotive high voltage harness is a single core design, which means that it contains a central wire for the transmission of power signals. Single-core designs are commonly used in high voltage and high current applications to ensure stability and reliability of power transmission.
III: High temperature resistance: The automobile high voltage wire harness adopts high temperature resistance material and insulation layer to adapt to the high temperature environment that may exist in the automobile power system. This ensures the electrical performance and mechanical strength of the harness under high temperature conditions.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV: Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
