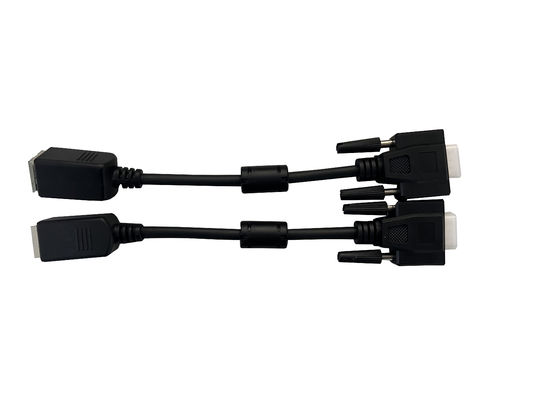

RJ45 8P8C Metal Shielded Industrial Wiring Harness DB9 White Core Magnetic Ring 200mm

50 pcs
RJ45 8P8C Metal Shielded Industrial Wiring Harness DB9 White Core Magnetic Ring 200mm
Features Gallery Product Description Request A Quote
Product Name: RJ45 8P8C Metal Shielded DB9 White Core Magnetic Ring Black 200mm Industrial Wiring Harness
Application Area: Automation Control Systems, Factory Equipment, Monitoring Systems, Instrumentation And Robotics
Wire Type: UL21307
Connector: 8P8C RJ45 Socket,DB9 Male Head,magnet Ring
Color: Black
Length: 200mm
Withstand Voltage: 300V
Insulation Resistance: ≥5MΩ
Conductor Resistance: ≤2Ω
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
Code: FDL004A009
High Light:

Shielded Industrial Wiring Harness


200mm Industrial Wiring Harness


8P8C Metal Shielded Industrial Wire Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485 ,ISO9001,ROHS
Model Number: Custom made cable
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

RJ45 8P8C metal shielded DB9 white core magnetic ring black 200mm industrial wiring harness


1.  Product description

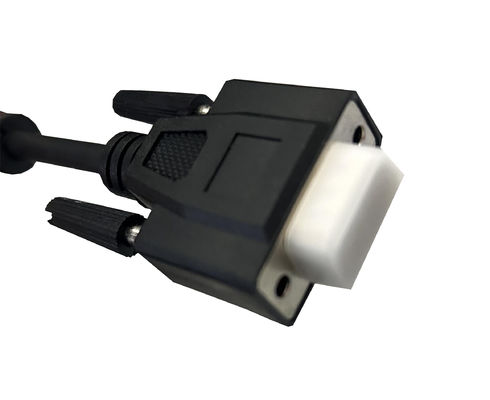

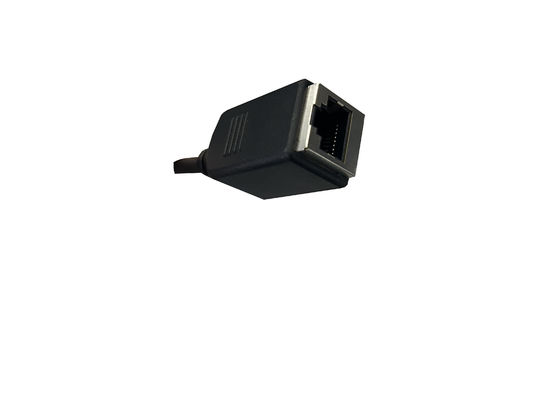

  RJ45 8P8C metal shielded DB9 white core magnetic ring black 200mm industrial wiring harness metal shielding design, with good anti-interference performance. Metal shielding can effectively block the influence of external electromagnetic interference on the signal and provide more reliable data transmission. The RJ45 8P8C connector is used at one end of the harness, and the DB9 connector is used at the other end of the harness, which is commonly used for serial communication interface, with magnetic ring welded in the middle, and the DB9 connector uses white rubber core. This magnetic ring can provide electromagnetic shielding and anti-interference capabilities, helping to maintain signal integrity and stability.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


1.1 Application area


I: Security systems: This industrial wiring harness can be used in various security systems such as access control systems, alarm systems, and video surveillance systems. They can transmit control signals, sensor signals and video signals to realize linkage and data transmission between devices.


II: Energy and power systems: This industrial harness plays an important role in the energy and power sector. Wiring harnesses can be used to connect power equipment, energy monitoring systems, and power dispatch and control systems to transmit relevant power signals and monitoring data.


III: Communication equipment: The industrial wiring harness connects network equipment, communication base stations, and wireless sensor networks to transmit Ethernet data and serial data. Wire harnesses provide reliable data connections and communication signal transmission between communication devices.


1.2 Feature


I: Metal shielding: The industrial wiring harness adopts metal shielding design, with good anti-interference ability. Metal shielding can effectively prevent the influence of external electromagnetic interference on signal transmission and improve the stability and reliability of data transmission.


II: Connection Type: This industrial harness uses RJ45 8P8C and DB9 connectors for Ethernet and serial communication interfaces, respectively. This type of connection is widely used in industrial equipment and communication systems.


III: Plug and unplug times: The industrial harness has a good plug and unplug times, can withstand frequent connection and disconnection operations. This is important for application scenarios where equipment needs to be replaced or maintained frequently.


2. Product information


Product Name

RJ45 8P8C metal shielded DB9 white core magnetic ring black 200mm industrial wiring harness

Harness material

Pass ISO13485,ISO9001 UL and ROHS certification

Product application

Automation control systems, factory equipment, monitoring systems, instrumentation and robotics

Length, color



Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Electromagnetic compatibility (EMC) test, shielding efficiency test, signal integrity test



After-sales service

Authentic guaranteed, factory outlets center

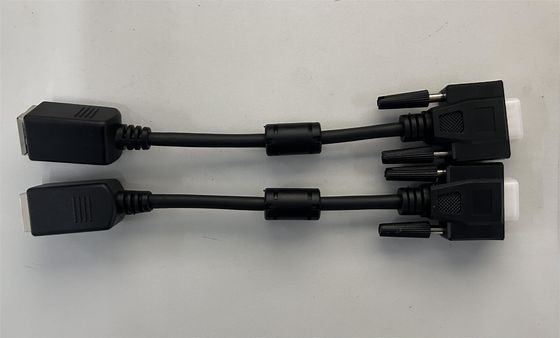

2.1 Picture of real products


RJ45 8P8C Metal Shielded Industrial Wiring Harness DB9 White Core Magnetic Ring 200mm 0


3.Main products


I,Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II,Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III,New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.


IV,Other equipment wire harnesses:

Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
