DB25 UL2464 25AWG tinned copper 300V laser cutting equipment industrial wiring harness
1. Product description
DB25 UL2464 25AWG tinned copper 300V laser cutting equipment industrial wiring harness use UL2464 standard wire, 25AWG wire diameter, thicker wire diameter has lower resistance and better current transmission ability, wire harness wire is made of tinned copper. The tinned copper wire has good electrical conductivity and oxidation resistance, which can provide stable signal transmission and reduce the influence of oxidation on the wire. The industrial wiring harness adopts metal shielding design, which can effectively reduce the influence of external electromagnetic interference on signal quality and meet the needs of high power equipment such as laser cutting equipment. One end of the harness is equipped with a DB25 connector, a common connector type with 25 pins. It is widely used in various industrial equipment and data communication systems.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
1.1 Application area
I: Laser cutting equipment: The DB25 industrial wiring harness is specifically designed for laser cutting equipment to connect control systems, sensors, power supplies, and other critical components of laser cutting machines. The harness provides reliable signal transmission and power supply to ensure the normal operation and accurate cutting of the laser cutting machine.
II: Industrial automation: The DB25 industrial harness can be used in a variety of industrial automation applications, including robotic systems, automated production lines, factory automation control systems, and others. The harness is used to connect and transmit control signals, sensor signals, power supply, and communication data for coordination and integration between devices.
III: Industrial measurement and monitoring systems: The DB25 industrial harness can be used in various industrial measurement and monitoring systems, such as temperature measurement, pressure monitoring, flow measurement, etc. This industrial harness is used to connect sensors, data collectors, controllers, and displays for real-time monitoring and data logging.
1.2 Feature
I: High voltage and power: The DB25 industrial harness is designed for high voltage (300V) and high power applications and is able to withstand the power demands required by industrial equipment such as laser cutting equipment. The harness can provide a stable power supply to ensure the normal operation of the equipment.
II: Shielding design: The DB25 industrial wiring harness adopts metal shielding design to effectively reduce the impact of external interference on signal quality and provide more stable signal transmission.
III: High temperature resistance: The material and structure design of the DB25 industrial harness consider the use of high temperature environment, with good high temperature resistance performance, to ensure reliability and stability in high temperature working environment.
|
Product Name |
DB25 UL2464 25AWG tinned copper 300V laser cutting equipment industrial wiring harness |
|
Harness material |
Pass ISO13485,ISO9001 UL and ROHS certification |
|
Product application |
Laser gear |
|
Length, color |
Customizable |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Electromagnetic compatibility (EMC) test, shielding efficiency test, signal integrity test |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

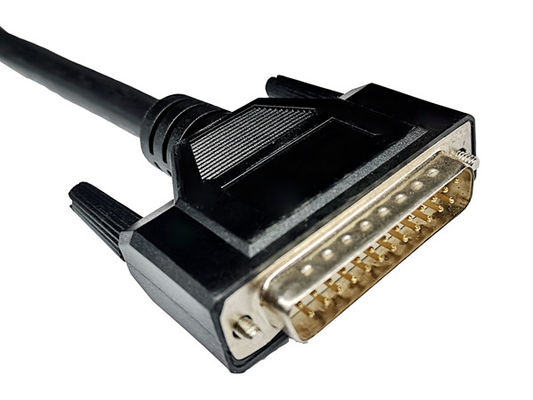

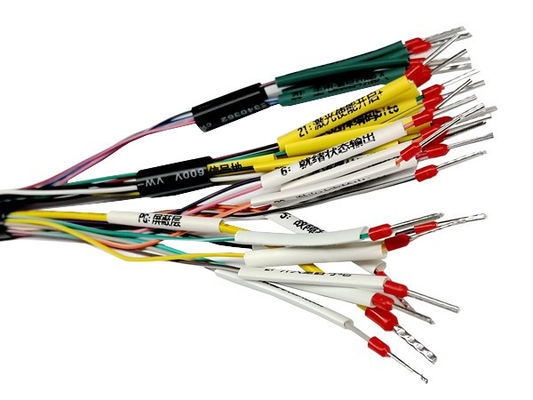

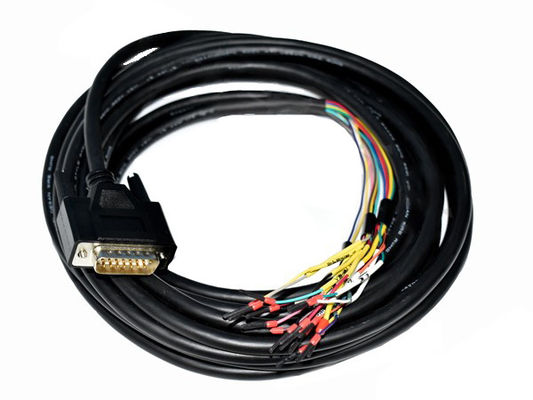

2.1 Picture of real products
3.Main products
I,Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II,Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III,New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV,Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
