Customized 3M UL2651 flat line ventilator insulation medical wiring harness
1. Product description
Customized 3M UL2651 flat line ventilator insulation medical wiring harness is used for the connection and communication between the screen and the motherboard in the ventilator equipment. The finished wire harness has passed 15 performance related test items in mechanical, physical and electrical aspects.Each wire in the harness is equipped with an insulation layer to provide good electrical insulation performance, prevent short circuit and interference between the wires, and ensure electrical safety. The 50mm length harness saves space when connecting and wiring inside the ventilator, helping to reduce the clutter and space occupation of the harness. UL2651 flat cabling is UL certified and has good electrical performance to ensure the quality and stability of power and signal transmission.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Customized 3M UL2651 flat line ventilator insulation medical wiring harness |
|
Product certification |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Internal line of medical ventilator equipment |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Strain relief test |
|
MOQ |
50pcs |
|
Delivery time |
1~2 weeks |
|
After-sales service |
Authentic guaranteed, factory outlets center |

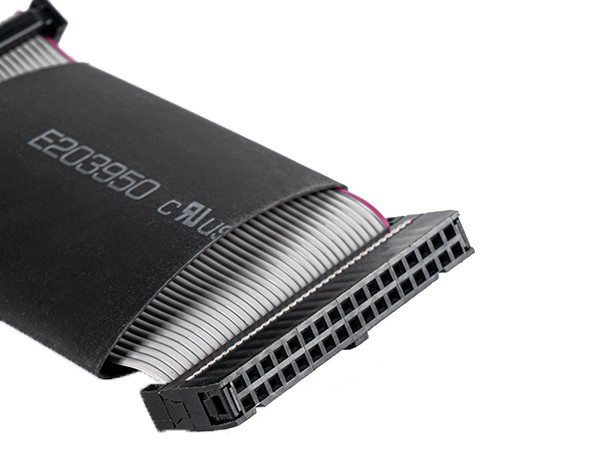

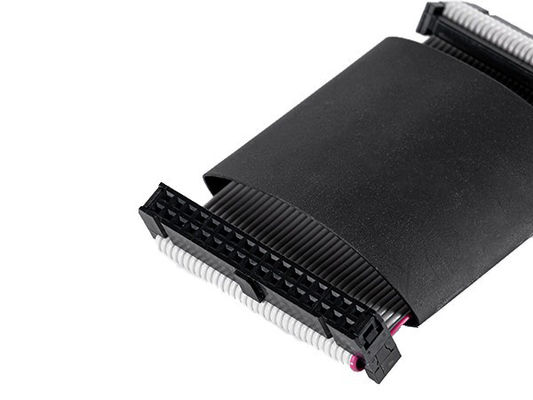

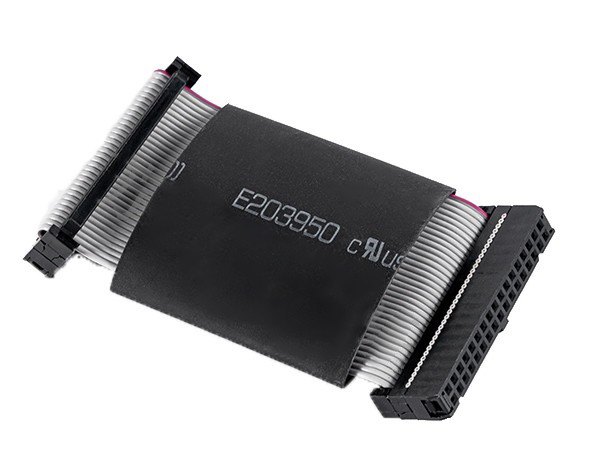

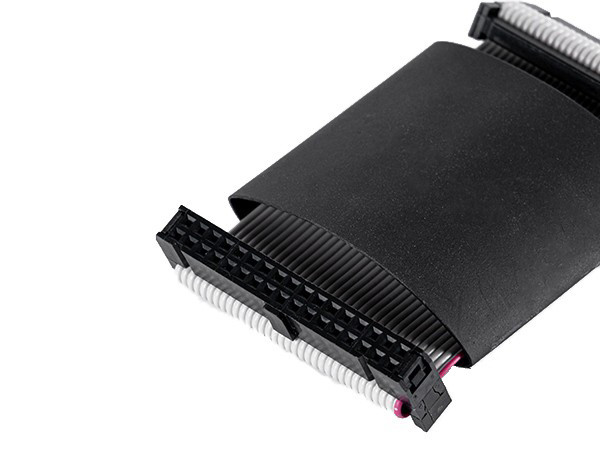

3. Picture of real products
4. Application area
I: Electrical connection inside the ventilator: The ventilator medical wiring harness is used to connect various electrical components and parts inside the ventilator, including power supply, controller, sensor, valve, etc. Wiring harnesses link power supply, signal transmission, and control between these components.
II: Signal transmission: The ventilator wire harness may be used to transmit various signals, such as sensor signals of the ventilator (such as pressure, flow, oxygen concentration, etc.), for monitoring the patient's breathing status and regulating the ventilator's working mode.
III: Power supply: The ventilator medical wiring harness carries the power supply required by the ventilator, including DC power supply, AC power supply, etc. These power supplies are connected to the power input of the ventilator through a wire harness.
5. Feature
I: Insulation performance: The ventilator medical wiring harness has good insulation performance to ensure the safe transmission of power and signals, and prevent electrical interference and accidental electric shock.
II: Bending durability: The ventilator medical wiring harness has good bending durability to adapt to the tortuous layout inside the ventilator, helping to reduce the clutter and space occupation of the wiring harness. And maintain the reliability of the connection.
III: Reliability and durability: The ventilator medical wiring harness is reliable and durable to meet the long-term use needs of medical equipment and withstand frequent connection and disconnection operations.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
