Insulation 14 Core Aviation Plug Pedal Switch Power Supply Harness UL10064 28AWG 300V

UL10064 28AWG 300V insulation 14-core aviation plug pedal switch power supply harness

1. Product description

  UL10064 28AWG 300V insulation 14-core aviation plug pedal switch power supply harness there are 14 cores in total, and 14 wires are contained in the harness. Each wire is color-coded to facilitate identification and connection. The wire harness uses high temperature resistant PA nylon material as insulation material, which can maintain stability and reliability in high temperature environment. The wires of the harness are insulated by UL10064 standard, which has high insulation performance. This helps prevent short circuits and current leakage between wires, ensuring safe operation of the electrical system. The power harness is equipped with a 14-pin aviation plug at one end and an 8PIN plastic housing at the other end to ensure a stable electrical connection. Aviation plugs usually employ a locking mechanism that prevents accidental disconnection or loosening. Wiring harness is suitable for all kinds of occasions that need to use pedal switching power supply, such as electronic equipment control, mechanical equipment control, etc. The pedal switch power supply harness provides a convenient way of operation. Users can switch or trigger the power supply by stepping the switch.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

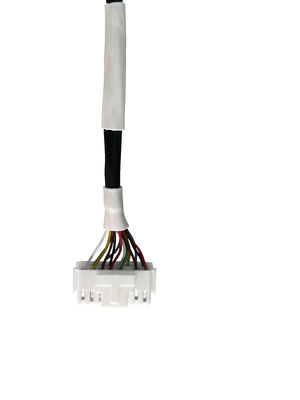

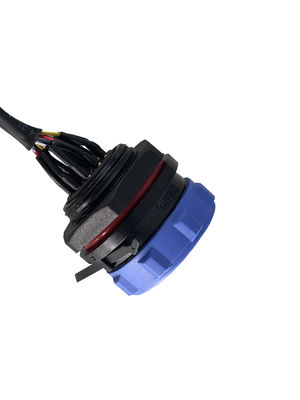

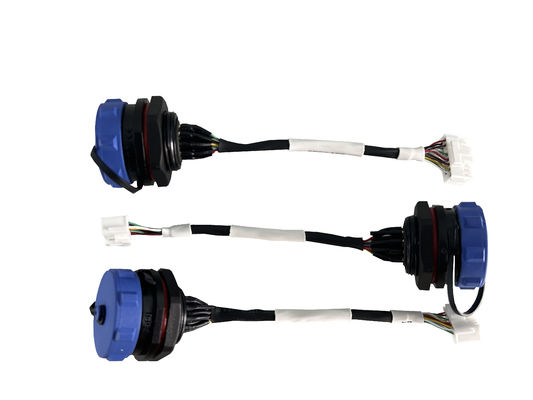

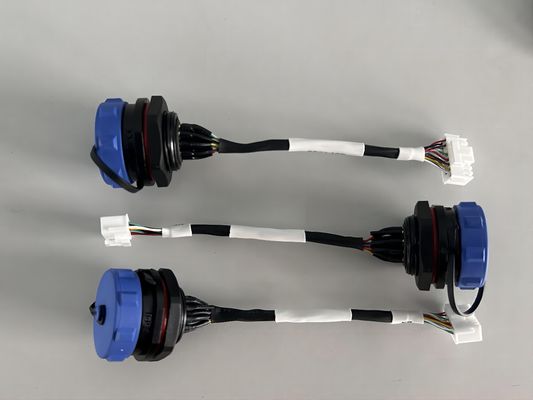

3. Picture of real products

4. Application area

I: Industrial machinery and equipment: The power harness can be used for the control of various industrial machinery and equipment, such as automated production lines, machine tools, conveyor belt systems, packaging equipment, etc. With the foot switch, the operator can easily control the start and stop, speed adjustment or other functions of the mechanical equipment.

II: Instrumentation equipment: In the field of instrumentation, the pedal switch power supply wiring harness can be used to control and connect various test equipment, measuring instruments, experimental equipment, etc. Through the foot switch, the operator can realize the operation of starting, stopping and resetting the equipment.

5. Feature

I: High temperature tolerance: The wire harness of the foot switch power supply adopts high temperature resistant PA nylon material as insulation material, which can maintain stability and reliability in high temperature environment.

II: Reliability testing: The pedal switching power supply wiring harness has undergone rigorous reliability testing to verify its performance and reliability over its design life. These tests include electrical voltage test, conduction test, tensile strength test, etc., to ensure that the power harness is stable and reliable during use.

III: Installation and maintenance: The installation of the pedal switching power supply harness is usually simple and convenient, and can be directly connected to the corresponding device or terminal. In terms of maintenance, the connection status and appearance of the harness are checked regularly to ensure the normal operation and safety of the harness.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
