Dual shield UL2725 tinned copper stranded 30V cable 1P X 28 + 2C X 26
1. Product description
Dual shield UL2725 tinned copper stranded 30V cable 1P X 28 + 2C X 26 adopt double shielding structure, including inner shielding and outer shielding. The inner shield is located between the wire and the insulation layer to prevent signal interference and mutual interference. The outer shield is located outside the entire cable to block the influence of external electromagnetic interference on the signal. The cable adopts copper stranded wire structure, tin plated copper wire as conductor material, the stranded structure helps to reduce the influence of electromagnetic interference inside the cable, and provides better signal transmission performance. The rated voltage of the cable is 30V, which is suitable for low voltage systems and equipment, such as electronic equipment, communication equipment, etc.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
ITEM |
A:1P×28AWG(7/0.127T) |
B:2C×26AWG(7/0.16T) |
|||
|
CONDUCTOR |
Material |
Tinned copper stranded |
|||
|
Size |
7/0.127±0.008mm |
7/0.16±0.008mm |
|||
|
O.D (Ref) |
0.38mm |
0.48mm |
|||
|
INSULATION |
Material |
HDPE |
HDPE |
||
|
Min.average thickness |
0.21mm |
0.12mm |
|||
|
Min.thickness at any point |
0.16mm |
0.09mm |
|||
|
O.D |
0.85±0.05mm |
0.75±0.05mm |
|||
|
TWISTED |
O.D |
1.70mm |
/ |
||
|
CABLING |
Material |
Al-mylar(Foil facing out) |
|||
|
Assembly |
1P×28AWG+2C×26AWG |
||||
|
DRAIN WIRE |
Material |
Tinned copper stranded |
|||
|
Size |
7/0.127±0.008mm |
||||
|
BRAID |
Material |
Tinned copper |
|||
|
Size |
16/4/0.10mm(65% min.) |
||||
|
JACKET |
Material |
PVC |
|||
|
Min.average thickness |
0.30mm |
||||
|
Min.thickness at any point |
0.25mm |
||||
|
O.D |
3.60±0.15mm |
||||

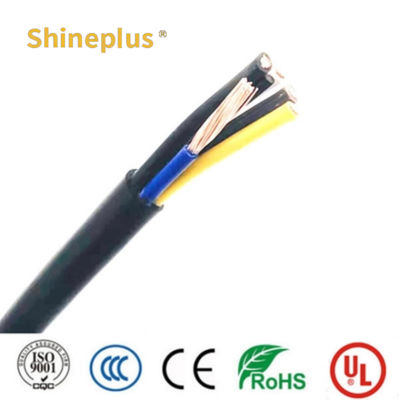

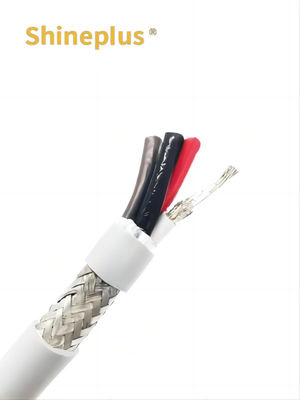

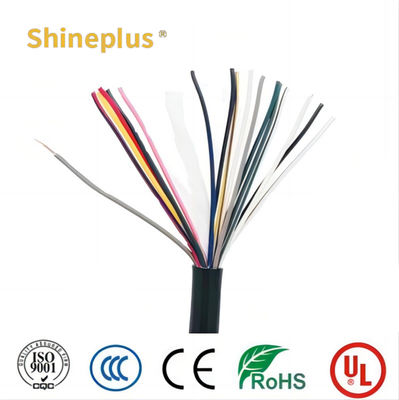

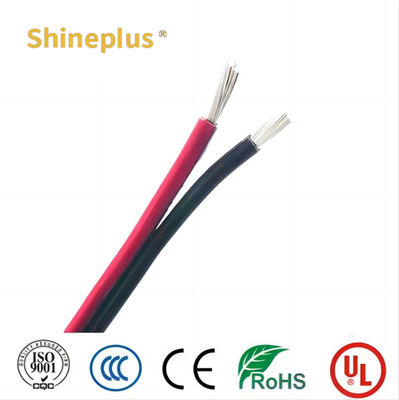

3. Picture of real products
4. Application area
I: Industrial automation: Highly flexible single-core cables are widely used in the field of industrial automation for signal transmission and power supply. For example, they can be used to connect sensors, actuators, motors, and control devices, among others, for proper operation of automation systems.
II: Mechanical equipment: This type of cable is suitable for various mechanical equipment, such as machine tools, printing presses, packaging machines, conveying systems, etc. Due to its high flexibility and wear resistance, it can be installed and used on the moving parts of the equipment to provide reliable signal transmission and power supply.
III: Automotive electronics: Due to their heat resistance and durability, highly flexible single-core cables are often used in automotive electronic systems such as engine control units (ECUs), sensors, motors, body control modules, etc. Can withstand high temperature environment and mechanical vibration, and ensure reliable signal transmission and power supply.
5. Feature
I: High flexibility
II: Single core structure
III: Halogen-free
IV: heat-resisting
VI: Insulation
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
