UL3133 16mm² bared copper stranded silicone 600V 150℃ EV battery motorcycles charging cable
1. Product description
UL3133 16mm² bared copper stranded silicone 600V 150℃ EV battery motorcycles charging cable the conductor is 16mm² bare copper stranded wire. Bare copper conductors have good electrical and thermal conductivity and are suitable for high current transmission. The twisted structure helps to reduce the influence of electromagnetic interference inside the cable and provides better signal transmission performance. The cable uses silica gel as insulation material. It can maintain the electrical and insulating properties of the cable in high temperature environment. The cable can work in high temperature environment, its rated temperature is 150℃, suitable for high temperature working environment. UL3133 certification ensures that the cables meet the relevant safety and electrical performance requirements. This helps to ensure the safety and reliability of the cable during use.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
| Product Name |
UL3133 16mm² bared copper stranded silicone 600V 150℃ EV battery motorcycles charging cable |
| Product certification | Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
| Product application | Industrial, comsumer electrics, medical, etc |
| Temperature | 150 ℃ |
| Aged condition | 158±1℃×168h |
| Flame rated | FT2 |
| Voltage withstand test | AC 2.0kV/1min |
|
Max.DC conductor resistance(20℃) |
1.348Ω/km |
| Percent of original elongation | 1~2 weeks |
| After-sales service | Authentic guaranteed, factory outlets center |

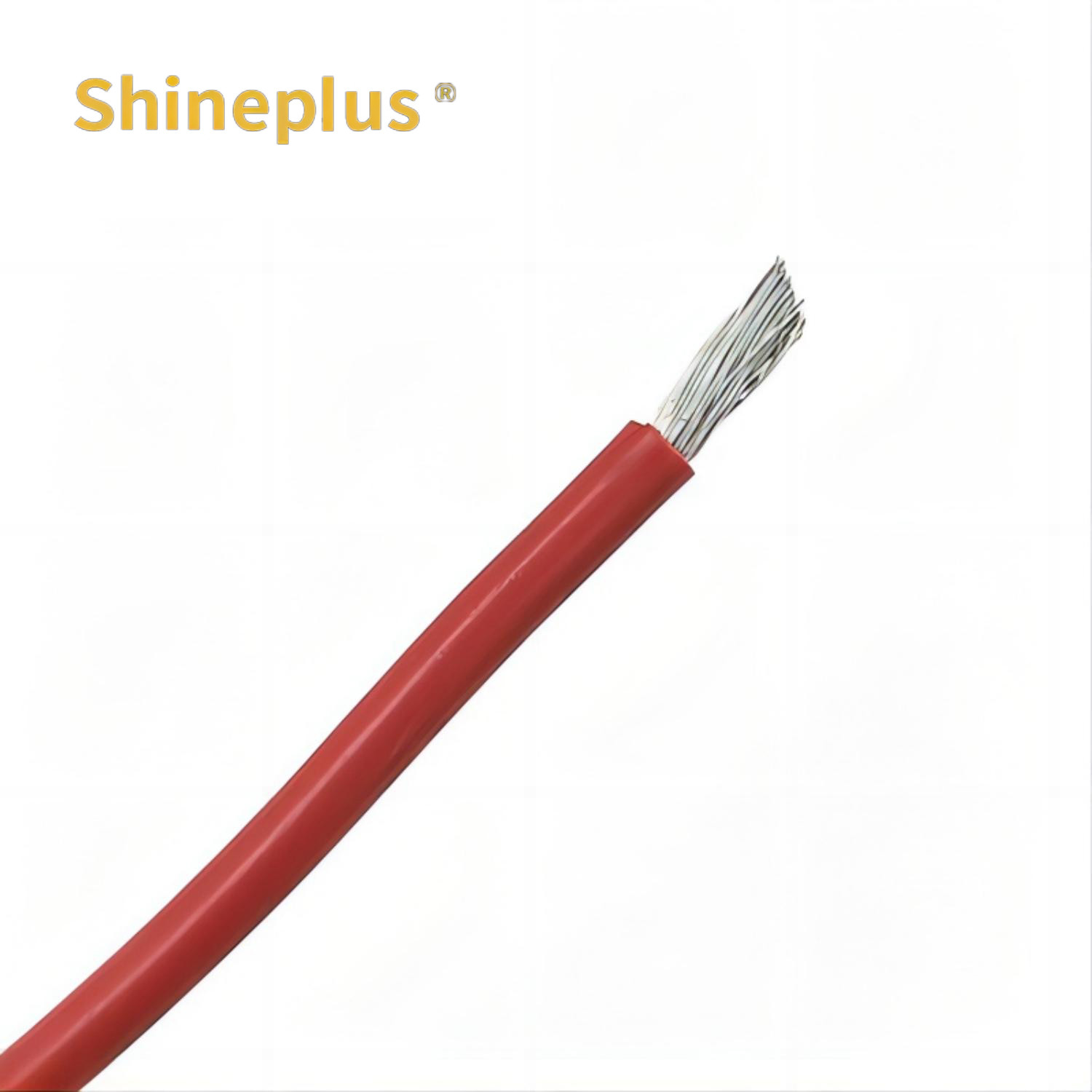

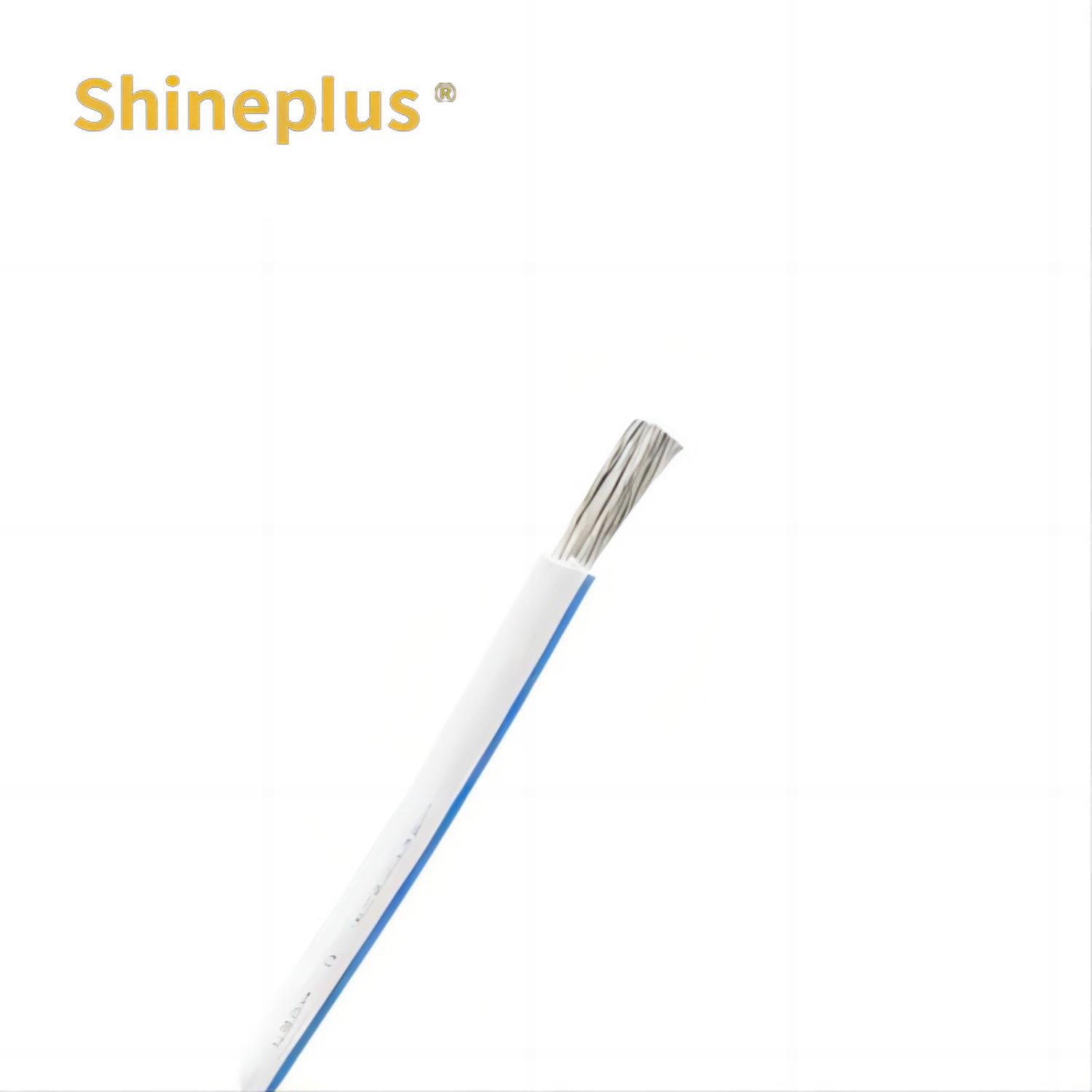

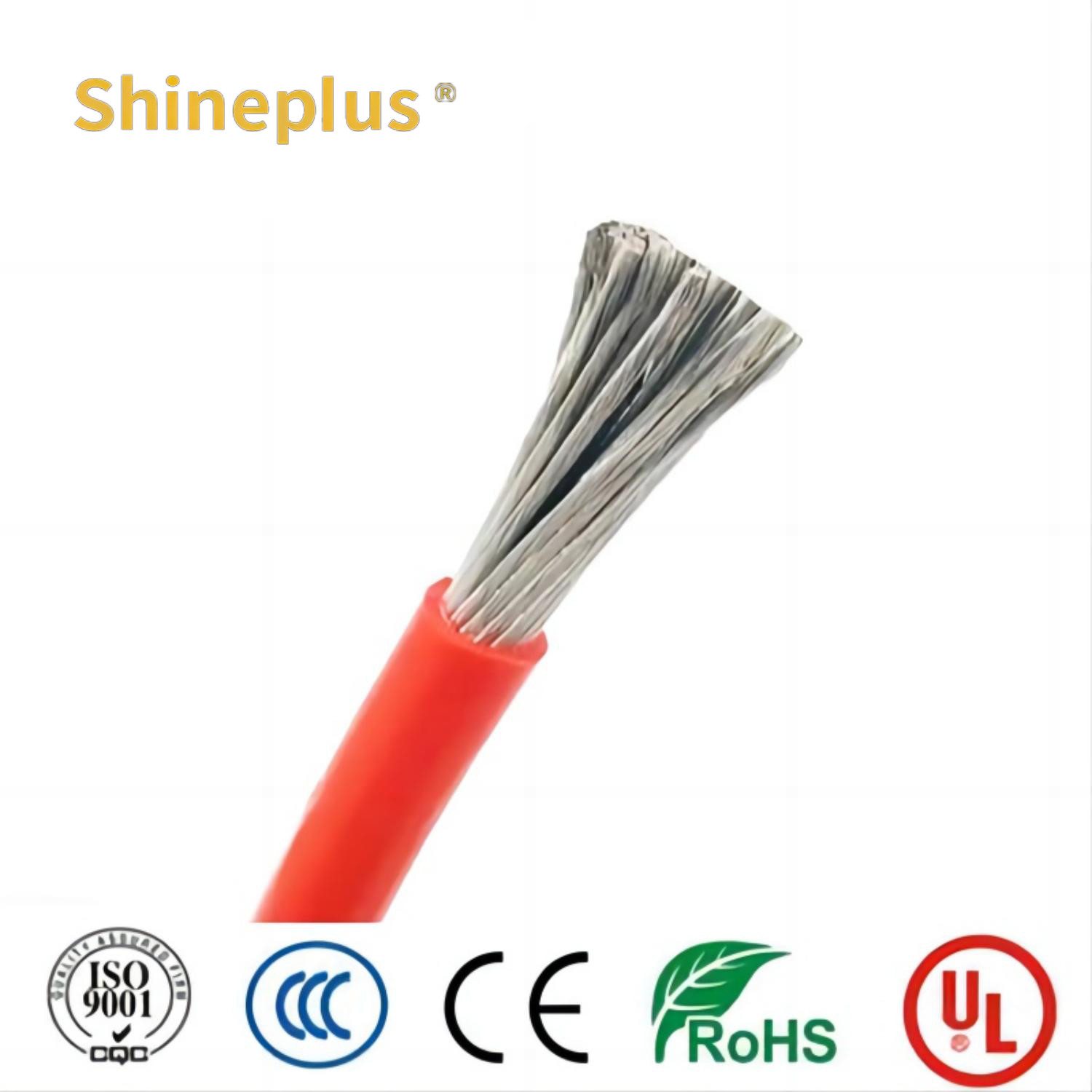

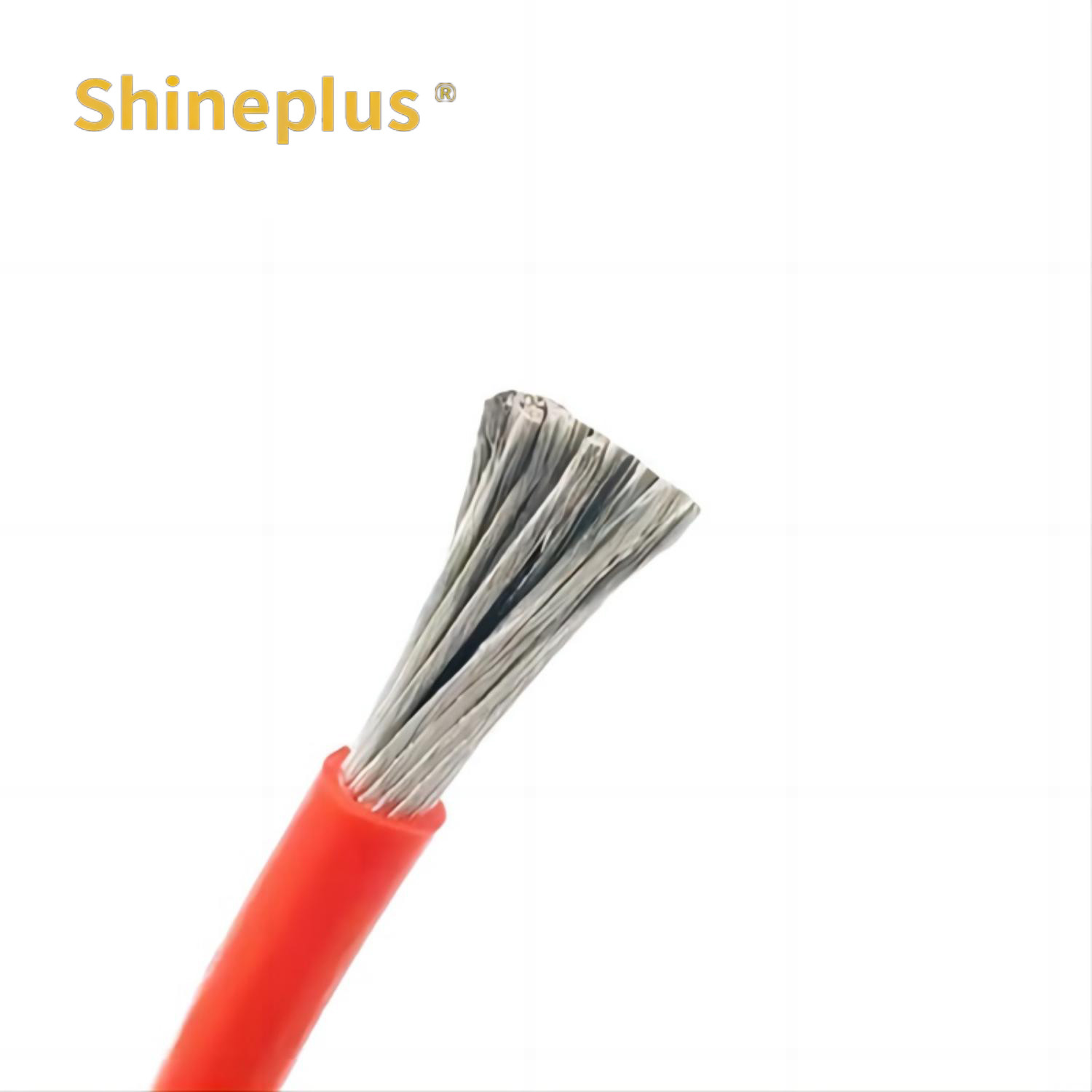

3. Picture of real products
4. Application area
I: Electric vehicle charging: The cable can be used in the charging system of electric vehicles. It provides reliable power transmission and charging functions, connecting charging devices (such as charging piles) with the battery system of electric vehicles.
5. Feature
I: Effectively resist electromaganetic interference
II: High temperature tolerance
III: Extensively oil resistant
IV: Flexible
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
