UL1332, UL1569 500V insulation resistance to high and low temperature air conditioning compressor wiring harness
1. Product description
UL1332, UL1569 500V insulation resistance to high and low temperature air conditioning compressor wiring harness the wire harness adopts pvc insulation material, which has the characteristics of high temperature and low temperature resistance. Temperature range: -40°C to +150°C, including thermal voltage at high temperature and coolant or coolant at low temperature. The harness is rated at 500 volts (V) and is suitable for high voltage applications such as air conditioning compressors. This means that it can safely transmit and withstand high voltage currents, ensuring the reliability and stability of power transmission. UL1332 wiring harness meets fire protection requirements and has high flame retardant performance. This means that in the event of an emergency such as a fire, the harness reduces the risk of fire spread and provides higher safety.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
UL1332, UL1569 500V insulation resistance to high and low temperature air conditioning compressor wiring harness |
|
Product certification |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Compressors for air conditioning systems |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Salt spray test |
≥48h |
|
MOQ |
50pcs |
|
Delivery time |
1~2 weeks |
|
After-sales service |
Authentic guaranteed, factory outlets center |

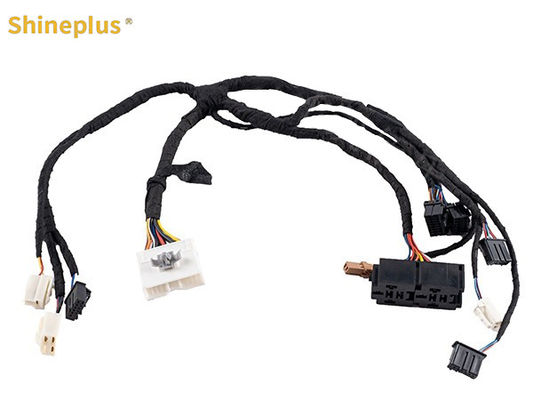

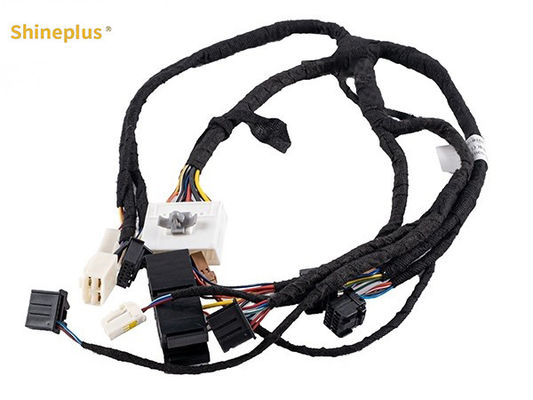

3. Picture of real products
4. Application area
I: Power lines: The UL1332 harness can be used to connect the power lines of the air conditioning compressor to transfer power from the power input to the compressor to provide the required power supply.
II: Sensor wire: The air conditioning compressor wire harness can also be used to connect various sensors, through the wire harness to transmit the sensed data to the controller, to monitor and adjust the working state of the air conditioning compressor.
III: Control line: The air conditioning compressor wire harness can be used to transmit control signals and transfer control commands from the controller of the air conditioning system to the compressor to achieve functions such as starting and stopping, temperature regulation and operation mode control of the compressor.
5. Feature
I: High voltage class: The UL1332 harness can withstand voltages up to 500V and is suitable for electrical connection and control of high power electrical equipment such as air conditioners and compressors.
II: High voltage carrying capacity: The new energy energy storage harness is designed for 1500V high voltage energy storage system, with good electrical insulation performance and power transmission capacity.
III: Durability and stability: The air conditioning compressor wiring harnesses have been designed and tested to have good durability and can withstand mechanical stress, vibration and other environmental factors. It can maintain a stable electrical connection and is not susceptible to external interference and damage.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
