Insulated Metal Shielded New Energy Vehicle Compressor Wiring Harness UL1007 300V IP67

50 pcs
MOQ
1~2$
Price
Insulated Metal Shielded New Energy Vehicle Compressor Wiring Harness UL1007 300V IP67
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: UL1007 300V IP67 Insulated Metal Shielded New Energy Vehicle Compressor Wiring Harness
Application Area: The Compressor Surrounding The Air Conditioner Of New Energy Vehicles
Processing Technic: Riveting Pressure, Assembly Molding
Wire Rod: UL1007
Conector: Terminal Unit (JST)
Color: Yellow
Length: 300mm
Waterproof Garde: IP67
Work Temperature: -40°C~105°C
Rated Voltage: 300V
Insulation Resistance: ≥10MΩ
Conductor Resistance: ≤2Ω
MOQ: 50 Pcs
OEM,ODM: Accept
High Light:

Insulated Vehicle Compressor Wiring Harness 300V

,

Metal Shielded Vehicle Compressor Wiring Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

UL1007 300V IP67 insulated metal shielded new energy vehicle compressor wiring harness



1. Product description



  UL1007 300V IP67 insulated metal shielded new energy vehicle compressor wiring harness with metal shielding layer, can effectively suppress electromagnetic interference, provide good signal integrity and anti-interference performance. The wire harness of the new energy compressor adopts insulation layer material, which can provide electrical insulation protection, and the working temperature range of the wire harness is -40~105℃, which can adapt to the interior of the body under different environmental conditions. The harness has a lightweight design to reduce the overall weight and improve the fuel efficiency and range of the vehicle. Suitable for a variety of NEV compressor applications, including compressor systems for electric vehicles, hybrid electric vehicles, and other NEVs.



  Feel free to contact with us, if you ever needed to consider your wire harness solution.



2. Product information



Product Name

UL1007 300V IP67 insulated metal shielded new energy vehicle compressor wiring harness

Product certification

Pass ISO13485,ISO9001,UL and ROHS2.0 certification

Product application

The compressor surrounding the air conditioner of new energy vehicles

Length, color

Customized according to customer needs

Samples

Samples confirmed first before mass production

Serve

Whole-course specially-assigned follow-up, to provide fast and efficient service

Test

Salt spray test ≥48h

MOQ

50 pcs

Delivery time

1~2 weeks

After-sales service

Authentic guaranteed, factory outlets center

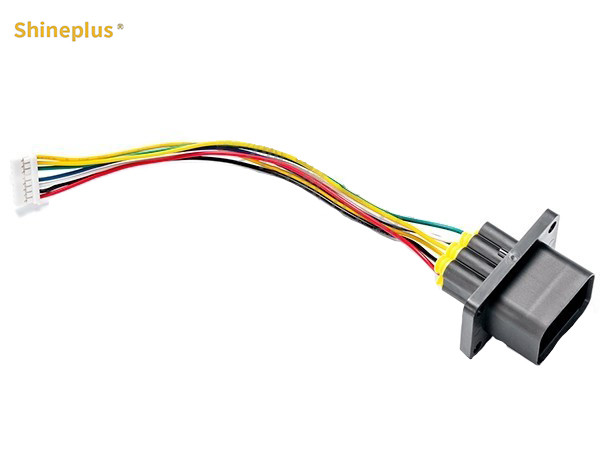

3. Picture of real products



Insulated Metal Shielded New Energy Vehicle Compressor Wiring Harness UL1007 300V IP67 0



4. Application area



I: Electric vehicle (EV) : UL1007 wiring harness can be used in compressor systems of electric vehicles, including power supply, control signal transmission and sensor connection of electric compressors, etc.



II: Hybrid electric vehicles (HEV) : In hybrid electric vehicles, UL1007 wiring harnesses can be used in compressor systems to provide electrical connections and signal transmission to support the normal operation and control of the compressor.



III: Fuel cell Vehicle (FCV) : Compressor systems in fuel cell vehicles also require electrical connections and signal transmission, and UL1007 wiring harnesses can be used to connect the compressor to the associated control unit.



5. Feature



I: Insulation shielding: The UL1007 wiring harness is composed of multiple copper wires, which are separated by insulating materials and shielded by metal shielding. The metal shielding layer can effectively reduce the influence of external electromagnetic interference on the internal signal of the harness. Insulation and shielding can provide high safety and reliability.



II: IP67-rated protection: The UL1007 harness is IP67-rated to prevent the entry of solid objects in a fully enclosed state and to maintain normal operation in short periods of flooding. This allows the harness to be used in harsh environmental conditions, such as humid, dusty and polluted environments.



III: Bending resistance: The harness has good bending performance and can be bent and installed in a narrow space. This is particularly important for automotive applications where wiring harnesses need to be adapted to different mounting positions and shapes.



6. Main products



I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.



II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.



III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
