Custom TE switch connector 600V insulation small diameter low energy consumption German standard automotive lamp harness
1. Product description
Custom TE switch connector 600V insulation small diameter low energy consumption German standard automotive lamp harness made of high temperature resistant materials to adapt to high temperature environment such as automobile engine compartment and prevent the plastic parts of the connector from softening or deformation. This car lamp harness has high voltage insulation capability, can withstand voltage up to 600V. This insulation capability ensures the safe and reliable transmission of electrical signals and power in high-voltage environments. The car will be subject to vibration and impact during driving, so the lamp harness needs to have good anti-vibration and anti-impact performance to ensure the stability of the connection. Some of TE's range of switch connectors has been designed to be optimized for vibration and impact resistance. In order to simplify the installation and removal process of the headlight wiring harness, a fast connector design was used in the selection of TE switch connectors. This design allows for quick insertion and removal of connectors, making the installation and maintenance of wiring harnesses easier.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Custom TE switch connector 600V insulation small diameter low energy consumption German standard automotive lamp harness |
|
Product certification |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Interior wire for car lights |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test |
Metallographic test |
|
MOQ |
50 pcs |
|
Delivery time |
1~2 weeks |
|
After-sales service |
Authentic guaranteed, factory outlets center |

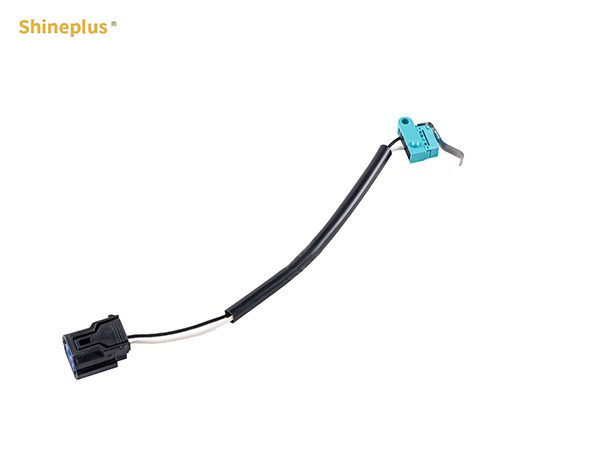

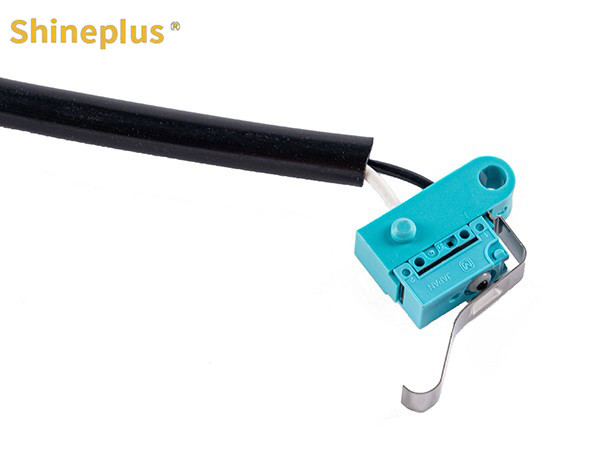

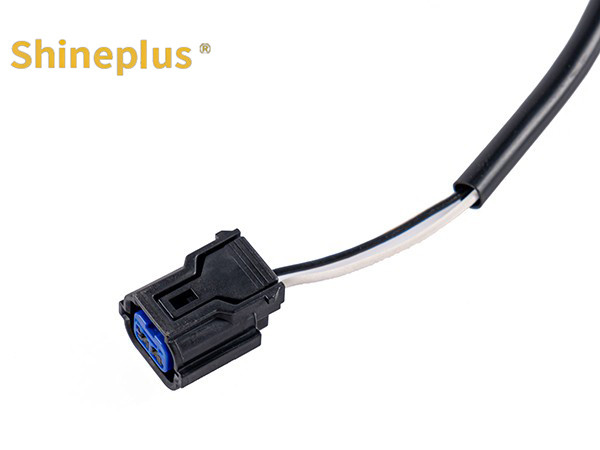

3. Picture of real products
4. Application area
I: Headlight system: The automotive headlight wiring harness can be used to connect various circuits and components of the headlight system, including headlight components, bulbs, dimmers, automatic level control modules, etc. These harnesses provide a safe and reliable power supply and signal transmission to ensure the proper operation of the headlight system.
II: Taillight and brake light system: The automotive headlight wiring harness can be used to connect the circuits and modules of the automotive taillight and brake light system. This includes taillight components, brake light components, signal lights, reflectors, etc. The high voltage insulation and heat resistance of the harness ensure the reliability of these systems in high temperature environments.
III: Turn signal and position light system: The automotive light harness can be used to connect the circuits and components of the turn signal and position light system. These systems include turn signals, front/rear position lights, side steering indicators, etc. The small diameter design of the headlight harness accommodates the limitations of harness wiring while providing reliable power transmission and signal control.
5. Feature
I: 600V insulation capability: With an insulation capability of up to 600V, this automotive headlight harness can safely transmit high-voltage power and signals to meet the needs of automotive headlight systems.
II: Small diameter design: The lamp harness is designed with small diameter to adapt to the wiring requirements of the harness in limited space. Small diameter harnesses can be installed and arranged more easily, increasing the flexibility of the headlight system.
III: Easy installation and maintenance: The connectors used in the automotive lamp harness are pluggable, making installation, maintenance and replacement easier. This saves time and effort, and reduces the cost of wiring and maintenance of the harness.
