PUR Sheath 250V IP67 Insulated Flexible Waterproof Industrial Wiring Harness M12

50 pcs
MOQ
1~2$
Price
PUR Sheath 250V IP67 Insulated Flexible Waterproof Industrial Wiring Harness M12
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: PUR Sheath Wire 250V IP67 Insulated Highly Flexible M12 Waterproof Industrial Wiring Harness
Application Area: Industrial Equipment Wiring Harness Inside And Outside
Processing Technic: Welding And Assembly
Wire Type: PUR Sheath Line
Conector: M12 Waterproof Connector
Color: Green
Length: 600mm
Rated Voltage: 250V
Insulation Resistance: ≥20MΩ
Conductor Resistance: ≤3Ω
MOQ: 50 Pcs
OEM,ODM: Accept
High Light:

IP67 Waterproof Industrial Wiring Harness

,

PUR Sheath Industrial Wiring Harness

,

M12 Industrial Wire Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

PUR sheath wire 250V IP67 insulated highly flexible M12 waterproof industrial wiring harness



1. Product description



  PUR sheath wire 250V IP67 insulated highly flexible M12 waterproof industrial wiring harness adopts PUR (polyurethane) material with oil, wear and corrosion resistance as sheath, which has excellent physical properties and environmental adaptability. The PUR sheath material makes the harness durable and long life, adapted to harsh industrial environments. And M12 waterproof industrial harness with IP67 waterproof grade, can ensure that the harness in the wet and other harsh environment without interference, normal operation. And the harness also has good insulation performance and electromagnetic compatibility (EMC) shielding layer, used to resist electromagnetic interference and signal interference, can effectively isolate the current inside the wire, prevent current leakage and short circuit phenomenon, to ensure safe power transmission.



  Feel free to contact with us, if you ever needed to consider your wire harness solution.



2. Product information



Product Name

PUR sheath wire 250V IP67 insulated highly flexible M12 waterproof industrial wiring harness

Product certification

Pass ISO13485,ISO9001,UL and ROHS 2.0 certification

Product application

Industrial equipment wiring harness inside and outside

Length, color

Customized according to customer needs

Samples

Samples confirmed first before mass production

Serve

Whole-course specially-assigned follow-up, to provide fast and efficient service

Test

Continuity test

MOQ

50pcs

Delivery time

1~2 weeks

After-sales service

Authentic guaranteed, factory outlets center

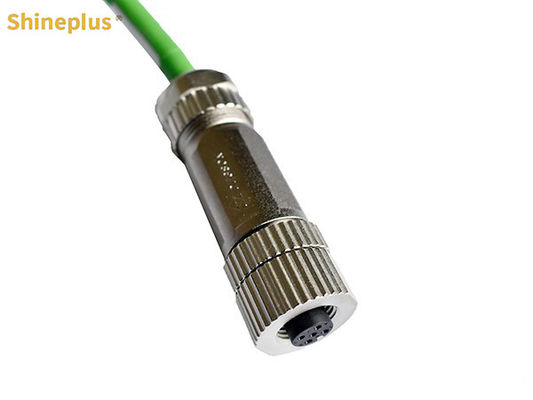

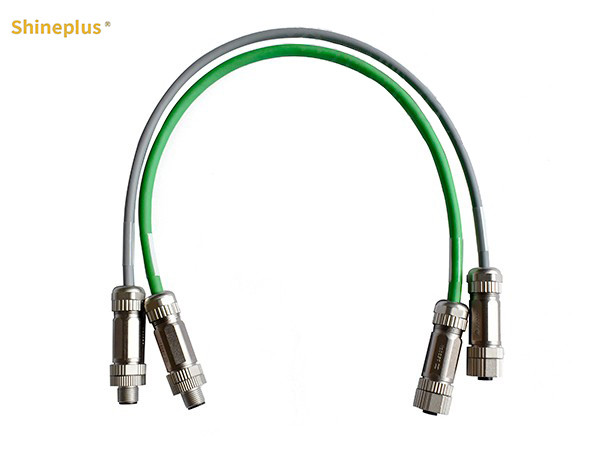

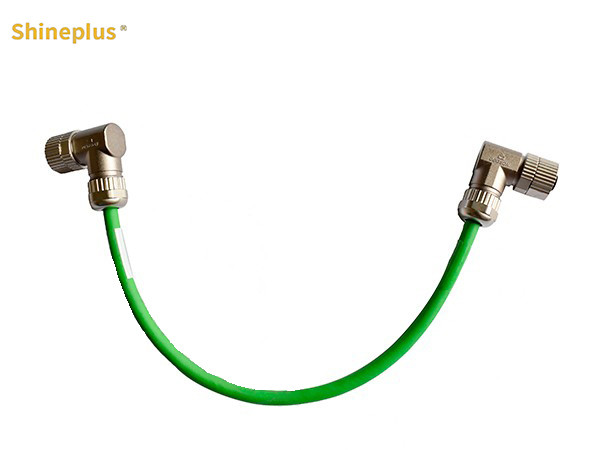

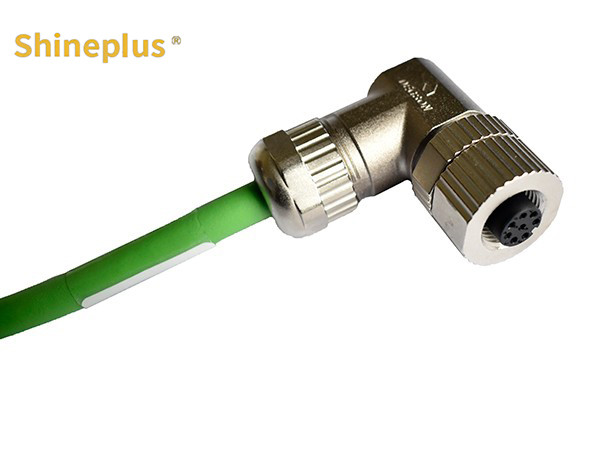

3. Picture of real products



PUR Sheath 250V IP67 Insulated Flexible Waterproof Industrial Wiring Harness M12 0



4. Application area



I: Industrial automation: This M12 waterproof industrial wiring harness is used to connect various sensors, actuators, and controllers of industrial automation equipment. They carry power supply and signal transmission, ensuring reliable communication between devices for automated production and process control.



II: Mechanical equipment: The M12 waterproof industrial wiring harness is used in mechanical equipment for wiring and connection of electrical systems. They are able to withstand the vibration, impact, and movement of the equipment, and provide stable power and signal transmission to ensure the normal operation and operation of the equipment.



III: Fieldbus systems: The M12 waterproof industrial wiring harness is used to connect fieldbus systems such as PROFIBUS, DeviceNet, CANopen, etc. They provide high-speed data transmission and reliable communication connections that support real-time data exchange and the operation of control systems.



5. Feature



I: High flexibility: The M12 waterproof industrial wiring harness is highly flexible, able to adapt to the movement, bending and vibration of the equipment, and maintain stable connection performance.



II: Anti-interference capability: The M12 waterproof industrial wiring harness provides good electromagnetic shielding and anti-interference capability to reduce the impact of external electromagnetic interference on signal transmission and maintain stable data transmission.



III: Operating Temperature range: The M12 waterproof industrial wiring harness has a wide operating temperature range and can operate normally under extreme temperature conditions. It can operate in a temperature range of -40°C to +80°C, and some models can even be extended to a wider temperature range.



6. Main products



I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.



II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.



III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
