M16*12 screw EV15F 16mm² black 300mm 1500N IP67 high temperature resitance power supply harness
1. Product description
M16*12 screw EV15F 16mm² black 300mm 1500N IP67 high temperature resitance power supply harness M16*12 screw is used as the fixed connection. This screw size is suitable for specific connection requirements. EV15F wire is used inside the harness with a cross-sectional area of 16mm². This wire specification can transmit a larger power supply signal. The harness has a 1500N endurance and has an IP67 rating for good dust and water resistance. Ip67-rated harness protects against dust, grease and moisture intrusion to a certain extent. Due to its high temperature resistance up to 125 ° C, the harness is suitable for power connection and transmission in high temperature environments.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
M16*12 screw EV15F 16mm² black 300mm 1500N IP67 high temperature resitance power supply harness |
|
Product certification |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
New energy storage cabinet |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Continuity test |
|
MOQ |
50 pcs |
|
Delivery time |
1~2 weeks |
|
After-sales service |
Authentic guaranteed, factory outlets center |

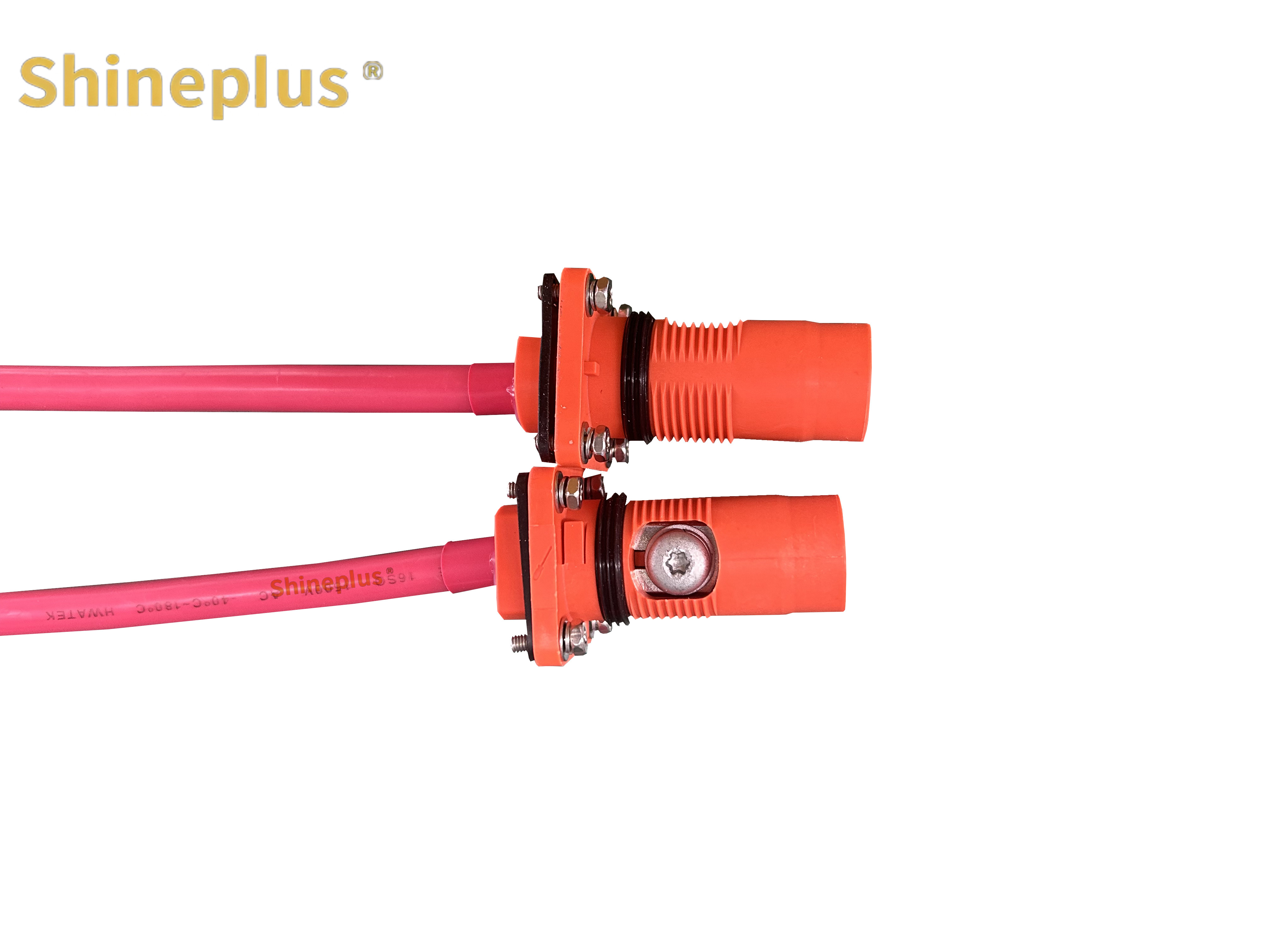

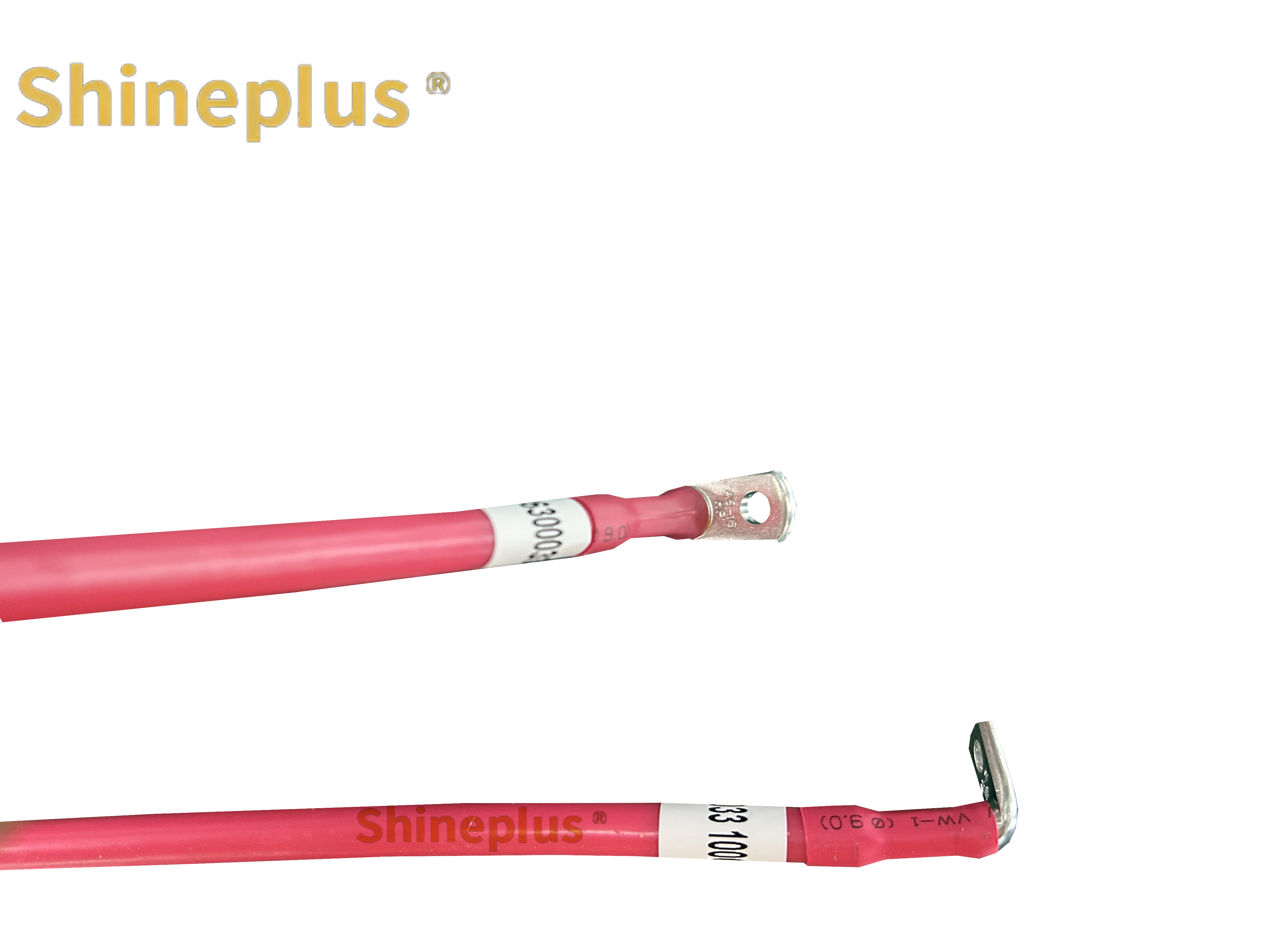

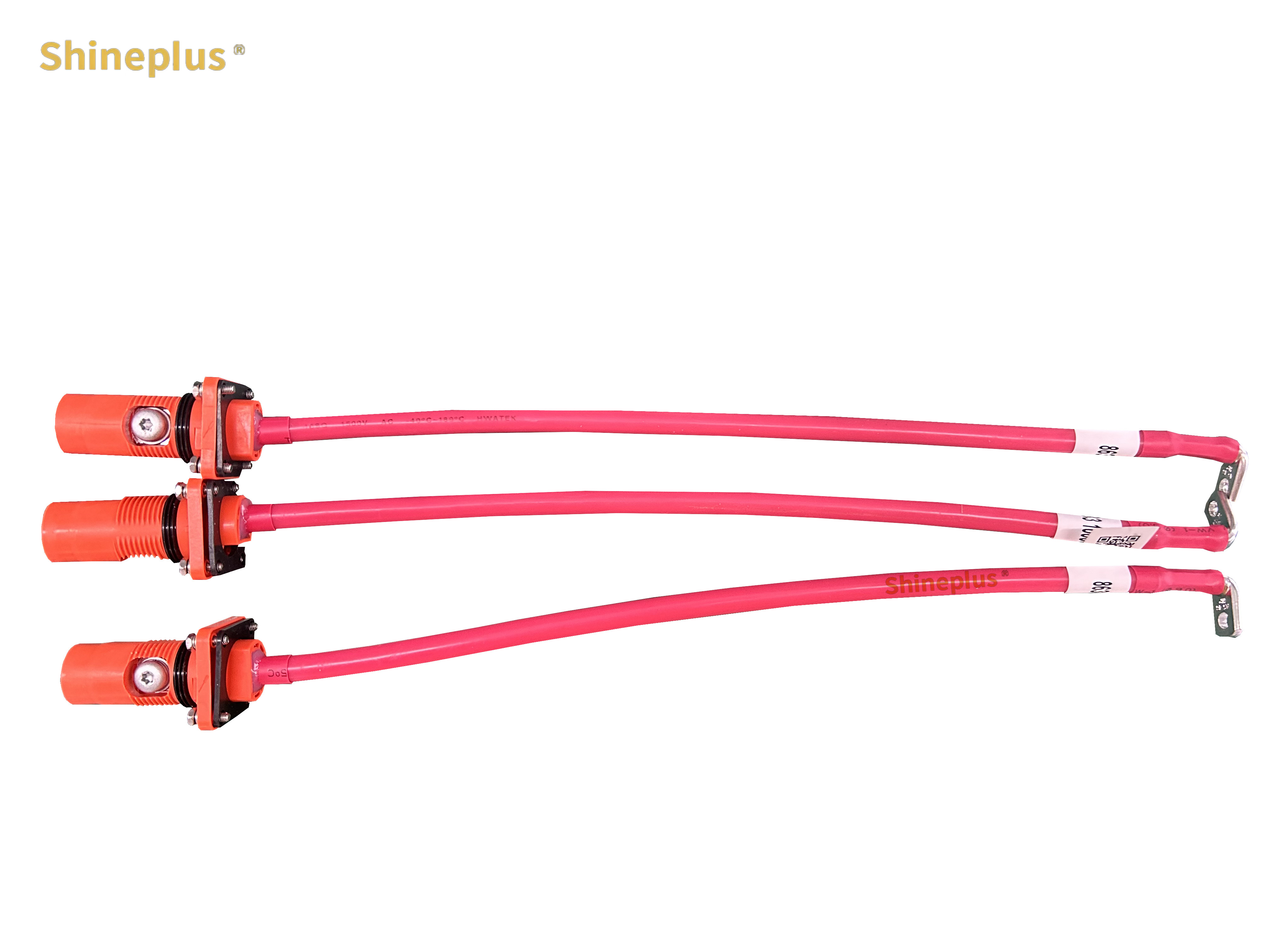

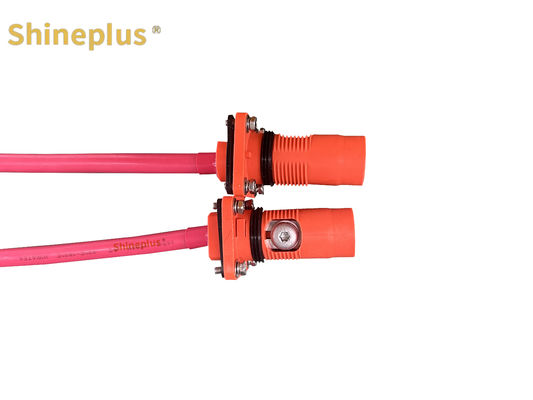

3. Picture of real products
4. Application area
I: Industrial equipment: The power harness can be used in various industrial equipment, such as mechanical equipment, automation equipment and production lines. It can provide power connection and power supply transmission to ensure normal operation of the device.
II: Power system: The power harness plays a key role in the power system. It can be used for power connection of transmission lines, substations and power equipment to ensure safe transmission and supply of electricity.
5. Feature
I: High strength connection: The power harness uses M16*12 screws as fixed connection to ensure reliable mechanical connection performance.
II: High current transmission: EV15F 16mm² wire is used inside the power harness, which has sufficient conductive capacity and is suitable for the transmission of large power supply signals.
III: High durability: This power harness has an endurance of 1500N and can withstand large tensile forces, ensuring reliability and durability in harsh environments.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
