Siemens Signal Cable Wire Harness 500V High Toughness Encoder Wire Harness

50 pcs
MOQ
1~2$
Price
Siemens Signal Cable Wire Harness 500V High Toughness Encoder Wire Harness
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Siemens Wire Harness 500V High Toughness Encoder Wire Harness Signal Cable
Application Area: Automobile, Rail Transit, Industrial Automation, New Energy, Communication And Other Industries
Wire Type: Pure Copper Wire Core
Colour: Green Or Customized
Length: 15m Or Customized
Work Temperature: -20℃~+80℃
Rated Voltage: 30V
Testing Voltage: 500V
MOQ: 50 Pcs
OEM,ODM: Accept
High Light:

15m Cable Wire Harness

,

High Toughness Encoder Wire Harness

,

Signal Cable Wire Harness 500V

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

Siemens wire harness 500V high toughness encoder wire harness signal cable



1. Technical parameters



Rated voltage voltage:  30V



Test voltage, RMS surface:  500V



Operating temperature:  -20℃~+80



Maximum tension:  45N/MM²



Minimum bending radius:  50MM



Force of torsion:  Absolute value 30°/M



Number of bending:  100000



Speed of movement:  30M/MIN



Acceleration of acceleration:  2M/S²



Type of cable:  Basic cable



Length of:  15.0M



Flammability:  EN 60332-1-2



  The encoder harness adopts shielding design and professional electromagnetic compatibility measures, which has good anti-interference ability. It can effectively prevent the influence of external electromagnetic interference on the signal, provide reliable signal transmission, reduce the problems caused by errors and interference.Feel free to contact with us, if you ever needed to consider your wire harness solution.



2. Product information



Product Name

Siemens wire harness 500V high toughness encoder wire harness signal cable

Product certification

Pass ISO13485,ISO9001,UL and ROHS2.0 certification

Product application

Automobile, rail transit, industrial automation, new energy, communication and other industries

Length, colour

Customized according to customer needs

Samples

Samples confirmed first before mass production

Serve

Whole-course specially-assigned follow-up, to provide fast and efficient service

Test

Continuity test

MOQ

50pcs

Delivery time

1~2 weeks

After-sales service

Authentic guaranteed, factory outlets center

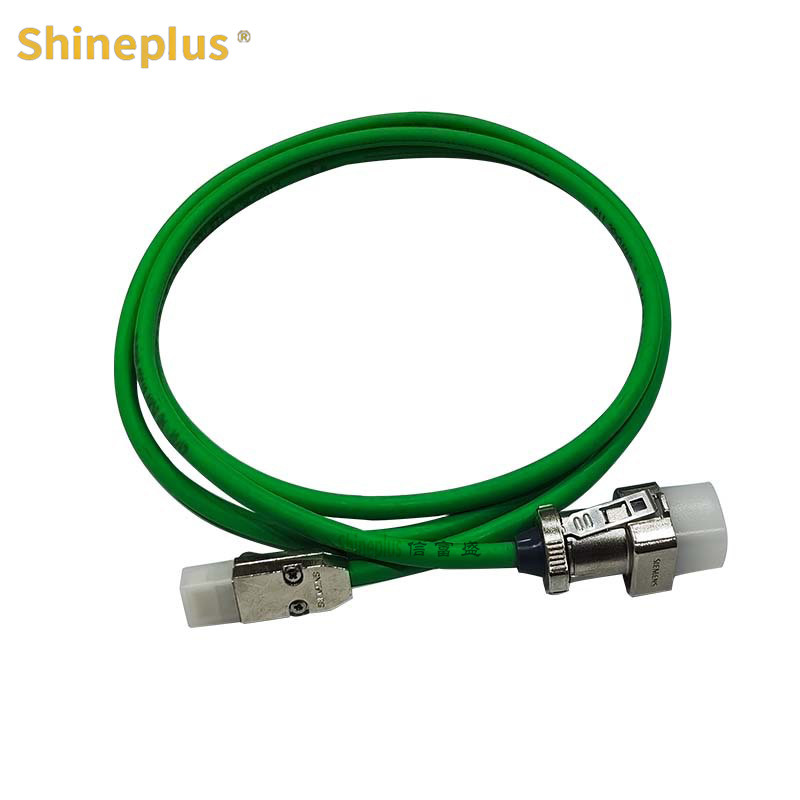

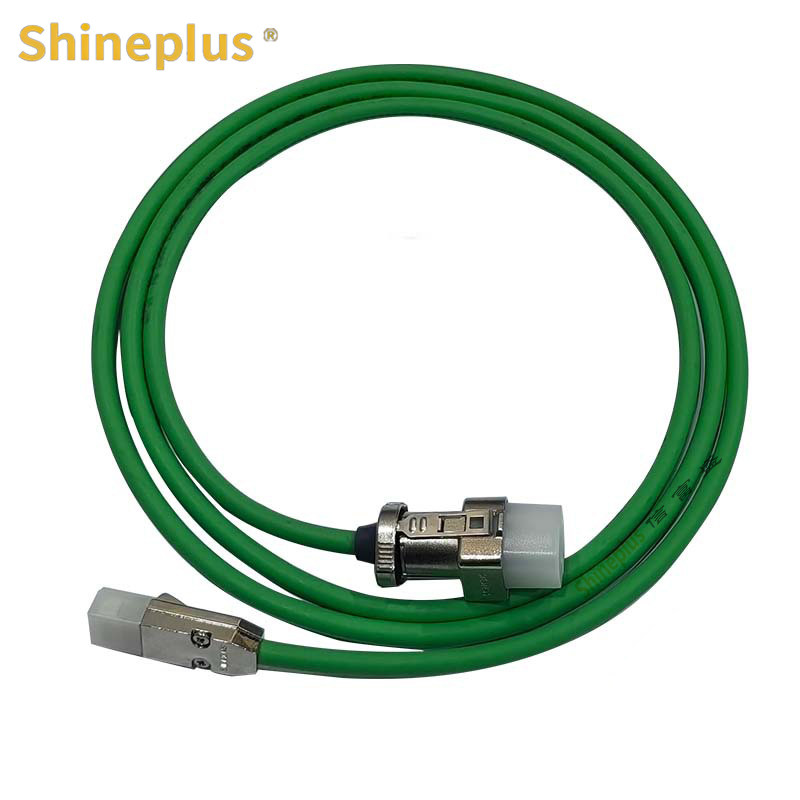

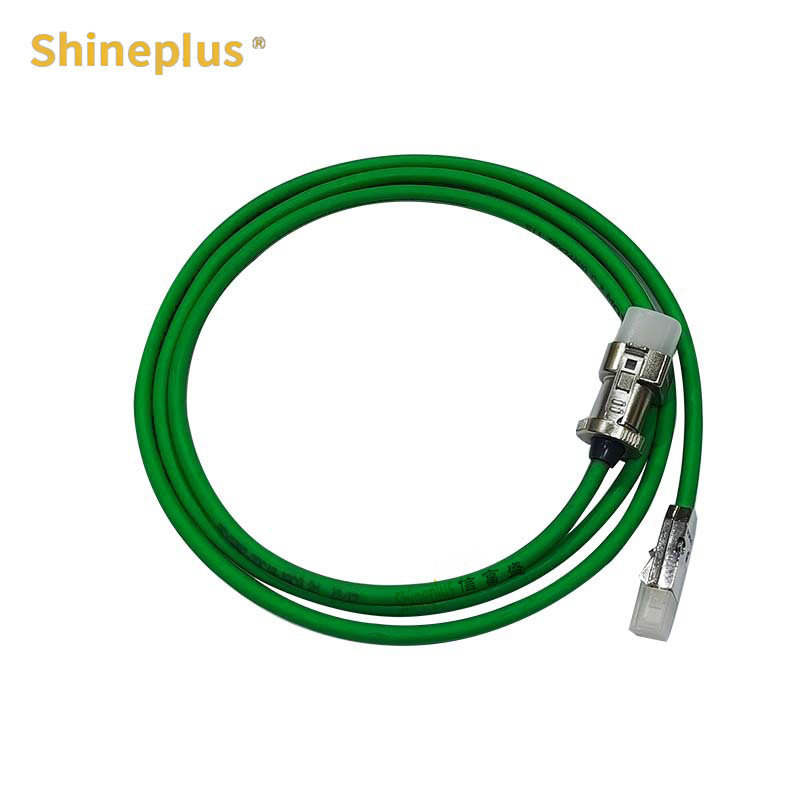

3. Picture of real products



Siemens Signal Cable Wire Harness 500V High Toughness Encoder Wire Harness 0



4. Feature



I: The wire core adopts pure copper wire core with strong conductive performance, and the transmission is stable.



II: High flexibility, bending resistance, long service life.



5. Main products



I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.



II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.



III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
