8 Core CAT6E Tested Pure Copper Double Shielded Class Network Cable SF/UTP-6 Oxygen Free Copper Shielded Network Cable

8 core CAT6E tested pure copper double shielded class network cable SF/UTP-6 oxygen free copper shielded network cable

1. Product description

  8 core CAT6E tested pure copper double shielded class network cable SF/UTP-6 oxygen free copper shielded network cable made of pure copper conductor, insulating and environmentally friendly PE rubber, high-strength tensile fiber and environmentally friendly PVC rubber, it has a transmission rate of 100Mbps and a large bandwidth of 100MHZ. The diameter of the cable is 4.90MM, and the insulation diameter is 0.90MM. Cable standard weight 10.45kg/300M, DC loop resistance (20~30℃) 29Ω/300M, characteristic impedance 100±15Ω, attenuation 1db/100M. New HDPE environmentally friendly rubber, protect the cable against oxidation. CAT6E network cable conforms to international standards, with extremely low signal link attenuation, network transmission more smooth.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

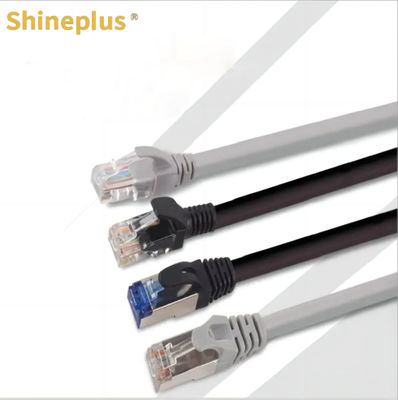

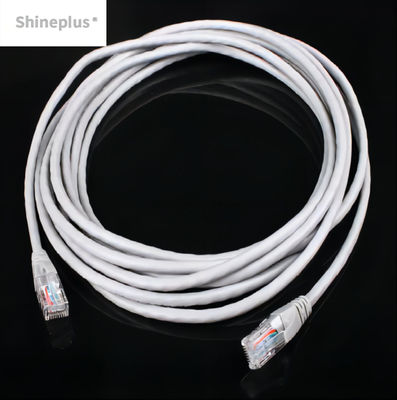

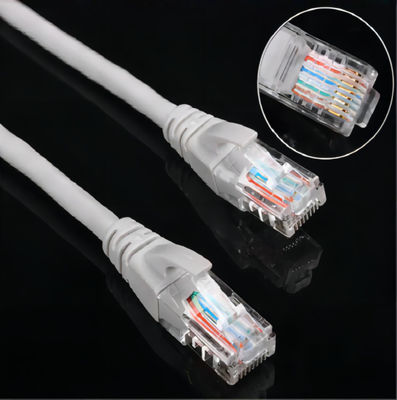

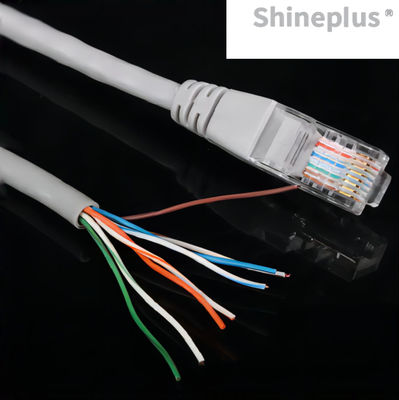

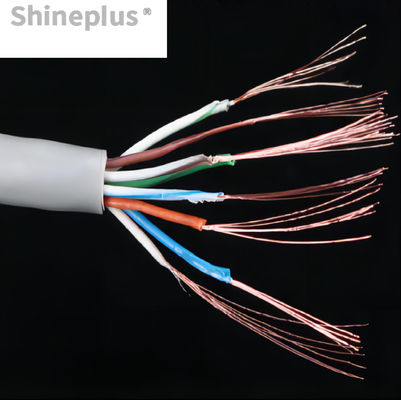

3. Picture of real products

4. Application area

I: Computer networks: CAT6E network lines are suitable for establishing and maintaining computer networks. It can be used to connect computers, servers, network switches, routers, and other network devices to transmit data and support network communication.

II: High-speed interconnection: Since the CAT6e network line supports high bandwidth and data transfer rates, it is suitable for scenarios that require high-speed interconnection. For example, areas such as multimedia transmission, video conferencing, cloud computing and big data applications can all benefit from the high-speed connectivity capabilities of CAT6e network cables.

III: Security system: The CAT6E network cable can also be used for the wiring of security systems, such as surveillance cameras, access control systems and alarm systems. It can reliably transmit video signals, data and control signals to support the normal operation of security equipment.

5. Feature

I: Long distance transmission: CAT6e network line can support long distance data transmission, the longest transmission distance can reach 100 meters. It is suitable for scenarios that need to cover a wide area, such as large buildings, campus networks and data centers.

II: Backward compatibility: Although CAT6e is a high-performance network cable, it is also backward compatible with CAT5e and CAT5 standards. It can be connected with CAT5e and CAT5 devices to meet the compatibility requirements of different devices and systems.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
