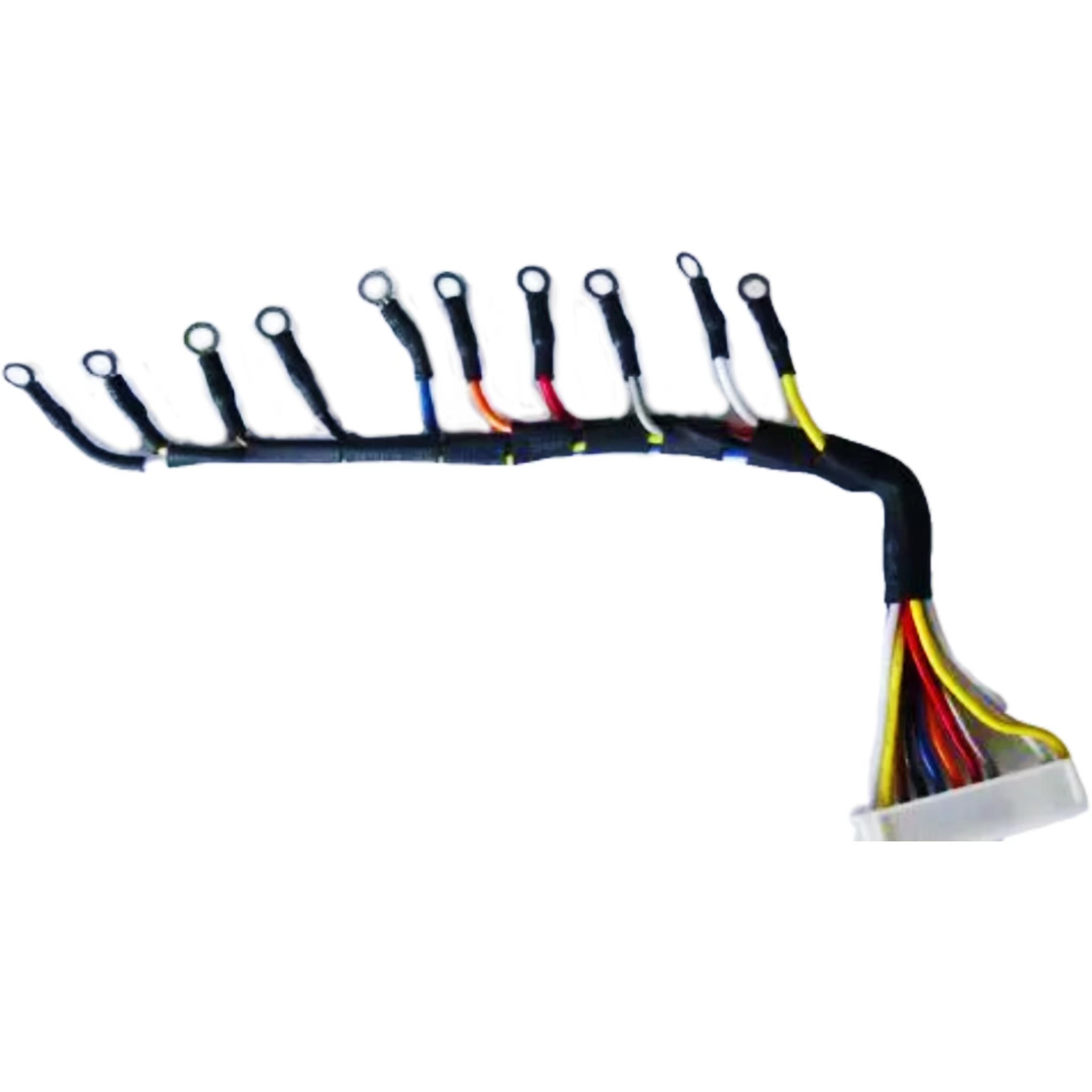

Insulated electronic wiring harness copper wire braided with multi pin terminal

50 pcs
Insulated electronic wiring harness copper wire braided with multi pin terminal
Features Gallery Product Description Request A Quote
Product Name: Insulated Electronic Wiring Harness Copper Wire Braided With Multi Pin Terminal
Application Area: Various Types Of Electrical Appliances And Other Equipment
Wire Type: High Flexible Towing Cable Or Customized
Conductor Material: Copper Or Optional
Colour: Black Or Optional
OD: Customize To Demand
Length: 500mm Or Customized
Rated Voltage: 300V
Conductive Impedance:
Insulation Impedance: 10Ω
MOQ: 50 Pcs
Packing: PE Bags; Cartons
OEM,ODM: Accept
High Light:

Insulated Electronic Wiring Harness


Electronic Wiring Harness Terminal


Multi Pin Terminal Wiring Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: High flexible towing cable or customized
Payment & Shipping Terms
Packaging Details: PE bags; Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

Insulated electronic wiring harness copper wire braided with multi pin terminal


1. Product description


  Insulated electronic wiring harness copper wire braided with multi pin terminal the wire body is fixed and wound with cloth tape, and the wire end is welded with circular terminals. The core wire insulation layer is made of Teflon, which has the effect of flame retardant insulation and high temperature resistance.


  The harness structure of the electronic harness is made by cross-weaving thin copper wires. It has good flexibility and elasticity, and can adapt to the bending and torsion of the harness. In addition, the copper wire braided structure also provides a better electromagnetic shielding effect, which can reduce the influence of electromagnetic interference on the internal signal of the wire harness and improve the reliability and stability of the signal.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2. Product information


Product Name

Insulated electronic wiring harness copper wire braided with multi pin terminal

Harness material

Pass ISO13485,ISO9001,ULand ROHS2.0 certification

Product application

Various types of electrical appliances and other equipment

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Bending resistance: ≥5 million times,Salt spray test: ≥72H,Continuity test



After-sales service

Authentic guaranteed, factory outlets center


3. Picture of real products

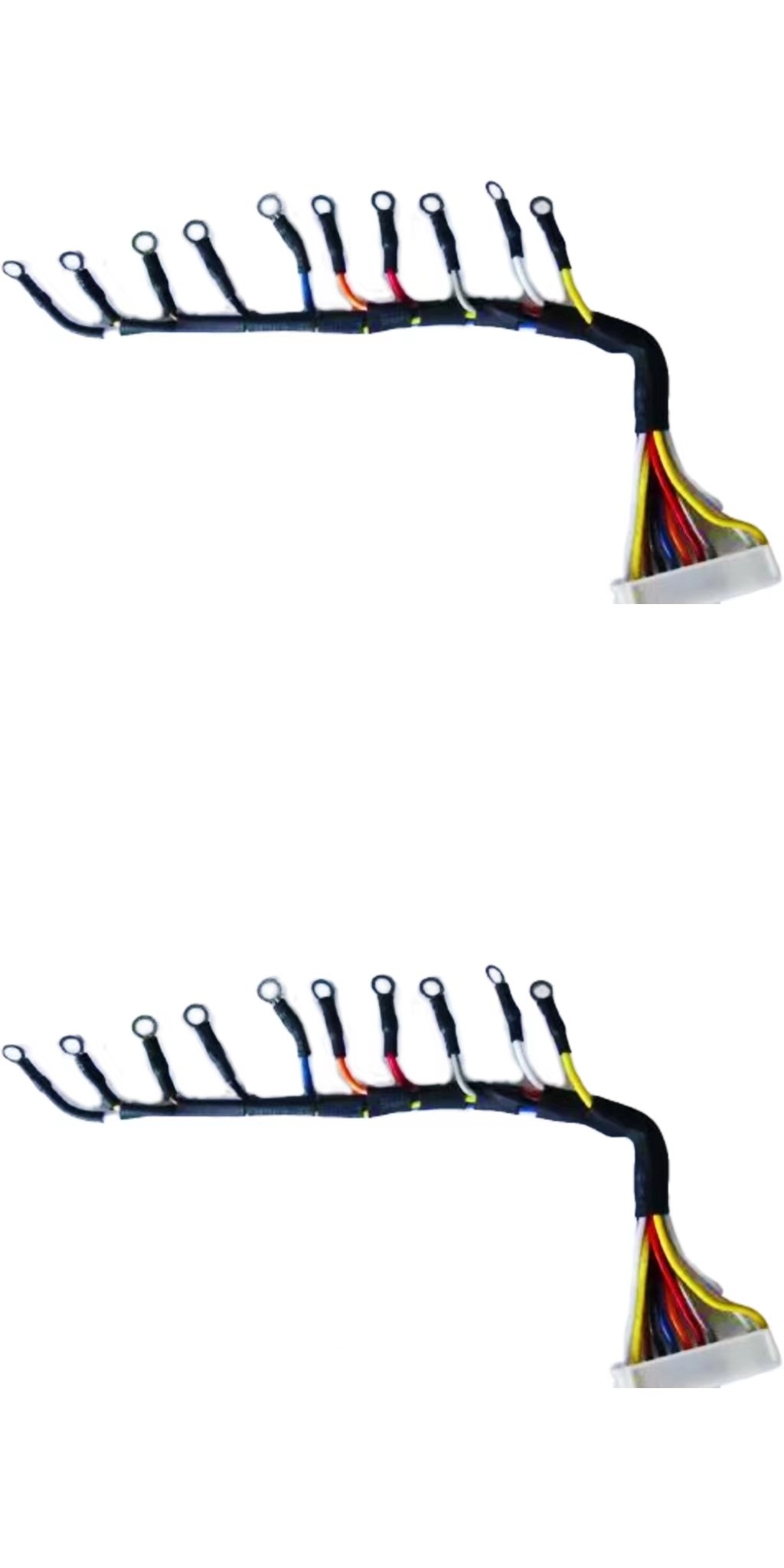

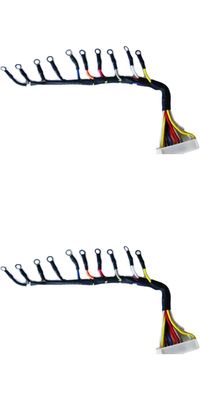

Insulated electronic wiring harness copper wire braided with multi pin terminal 0


4. Application area


I: Electronic equipment Manufacturing industry: nsulated electronic wiring hamesses play a key role in the electronic equioment manutacturingindustry. They are used to connect varous electronic components such as crcuit boards. switches. sockets. and sensors. amona others. Wirindharnesses connect and coordinate components by providing power supply, signal transmission, and data communication.

II: Automotive industry: Insulted electronic wire harnesses are widely used to connect the various components of these systems for signaltransmission, power supply, and data exchange, thus ensuring proper operation of automobiles
III: Aerospace industry: The aerospace sector has high requirements for high reliability and ant-interference performance, and insulated electronicwirind hamesses plav an imoortant rol n this renard. They are used to connect varous svstems in an arcraft or spacecratt, incuding controsvstems. communication svstems. navaton svstems. etc. Wiring harnesses need to be cesianed and manuractured takmna into account extremeconditions such as vibration, high temperature, and high pressure in aerospace environments.

5. Feature


I: Signal transmission: The wires in the harness transmit signals through conductive materials such as copper wires. The insulation layer of the wire plays the role of isolation and protection, preventing signal interference and short circuit.


II: Power supply: The wires in the harness connect the individual electronic components by providing power. The size and material selection of the wires are designed according to current requirements to ensure adequate power transmission and minimal energy loss.


III: Mechanical protection: The insulation layer and braided structure in the harness provide mechanical protection of the wire from damage to the harness under conditions such as bending, vibration and stretching.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
