High frequency transmission custom 26 - core connection board electronic harness
1. Product description
High frequency transmission custom 26 - core connection board electronic harness with a 26-core design, it is suitable for signal transmission
between connecting plates. Each core wire is precisely laid out and choreographed to ensure accurate signal matching and transmission.The
electronic harness is designed for high frequency transmission and provides excellent performance in high frequency signal transmission. It has
low signal loss and good signal integrity to ensure high quality high-frequency signal transmission.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
High frequency transmission custom 26 - core connection board electronic harness |
|
Harness material |
Pass ISO13485,ISO9001,ULand ROHS2.0 certification |
|
Product application |
All types of electronic equipment |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1000N |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

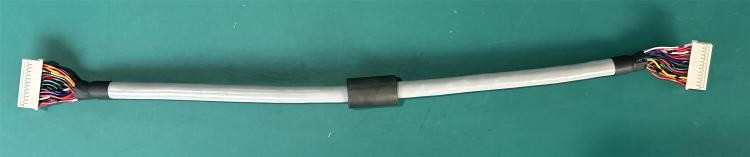

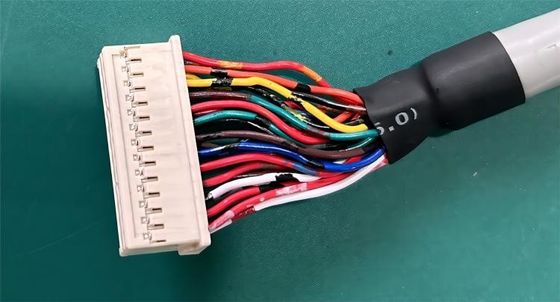

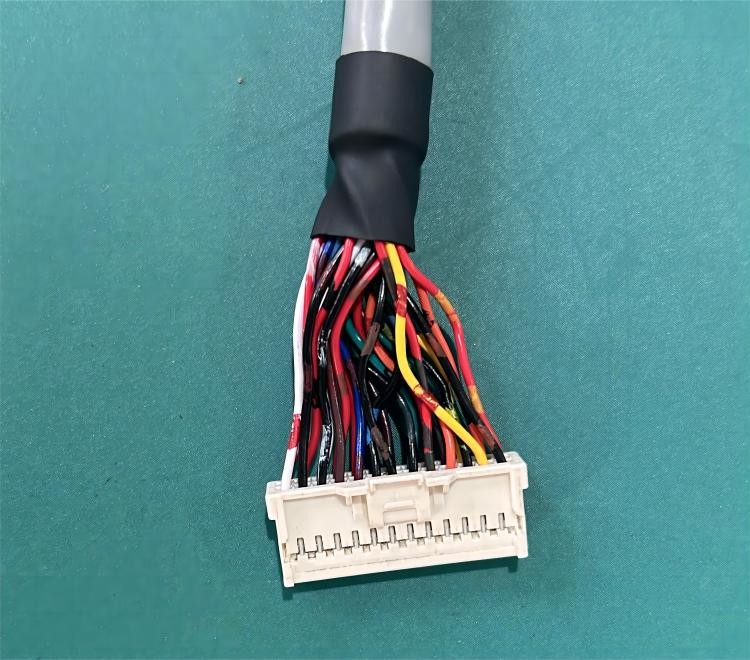

3. Picture of real products
4. Application area
I: Communication equipment: The harness can be used in communication equipment, such as network switches, routers, base stations, etc. It can transmit high-frequency signals, connect different electronic components and boards, and ensure stable and reliable communication signal transmission.
II: Data centers: In servers and network equipment in data centers, high-frequency transmission custom 26-core connection board electronic wiring harnesses can be used for high-speed data transmission and signal connection. It can connect servers, storage devices, and switches to meet the requirements of high-speed and high-density connections in data centers.
III: High frequency test instruments: In high frequency test instruments and measuring equipment, the harness can be used to connect test probes, signal generators, spectrum analyzers and other equipment to transmit high frequency signals for accurate test and measurement.
5. Feature
I: High frequency transmission performance: The electronic harness is specially designed for high frequency transmission, with low signal loss and good signal integrity. It can provide reliable signal transmission in high frequency environment and maintain high signal quality and accuracy.
II: Multi-core design: The harness has a 26-core design that can simultaneously transmit multiple signals. Each core wire is precisely arranged and choreographed to ensure accurate signal matching and transmission to meet complex connection board layout requirements.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
