IP67 PE Double Row BMS Communication Harness High Temperature Resistant

50 pcs
IP67 PE Double Row BMS Communication Harness High Temperature Resistant
Features Gallery Product Description Request A Quote
Product Name: High Temperature Resistant IP67 PE Double Row BMS Communication Harness
Application Area: New Energy Storage Equipment
Wire Type: PE Double Row Line, White High Temperature Line, Water Drop Head Temperature Line
Conductor Material: Copper Or Oxygen-free Copper
Conector: JAE、MOLEX
Processing Technic: Riveting And Assembling
Color: Black
Length: 500mm
Rated Voltage: 300V
Dielectric Strength: ≥1500V
Insulation Impedance: ≥10Ω
MOQ: 50 Pcs
Packing: Cartons
OEM,ODM: Accept
High Light:

IP67 Double Row Communication Harness


PE BMS Communication Harness


BMS Communication Electronic Wiring Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: UL2464 or customized
Payment & Shipping Terms
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

High temperature resistant IP67 PE double row BMS communication harness


1. Product description


  High temperature resistant IP67 PE double row BMS communication harness polyethylene (PE) is used as insulation material, which has good


electrical insulation performance and durability. PE material also has certain chemical resistance, can resist the erosion of chemical substances to


a certain extent.The harness uses a double-row design, that is, two rows of cables and connectors are arranged in one harness. This design can


effectively reduce the space occupation of wiring harnesses, improve the compactness of wiring, and simplify the installation and maintenance of


wiring harnesses. It is specially used for BMS communication and can transmit data and control signals in battery management system. It may


include various communication protocols and interfaces, such as CAN, LIN, RS485, etc., to meet different application requirements.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2. Product information


Product Name

High temperature resistant IP67 PE double row BMS communication harness

Harness material

Pass ISO13485,ISO9001,ULand ROHS2.0 certification

Product application

New energy storage equipment

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1000N



After-sales service

Authentic guaranteed, factory outlets center

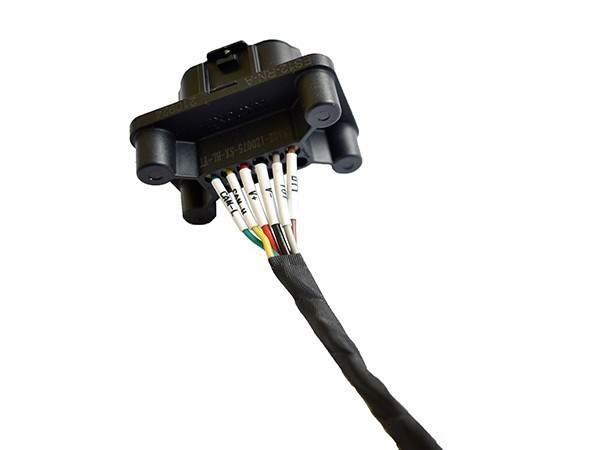

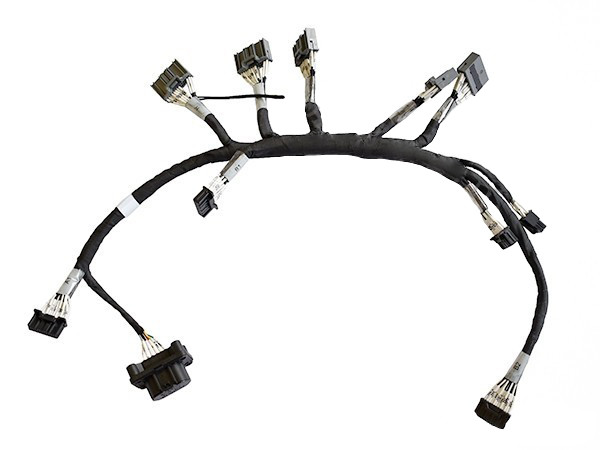

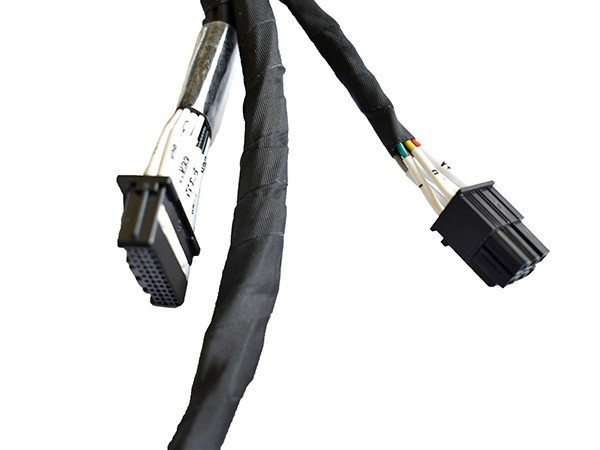

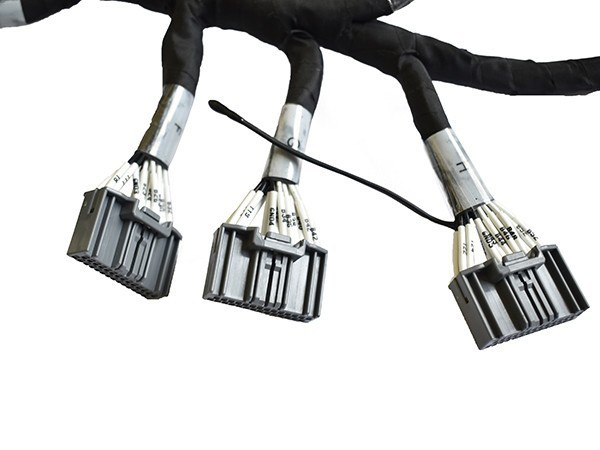

3. Picture of real products


IP67 PE Double Row BMS Communication Harness High Temperature Resistant 0


4. Application area


I: Electric vehicles (EV) and Hybrid electric vehicles (HEV) : As a key component of battery management systems, BMS communication wiring harnesses play a vital role in electric vehicles and hybrid electric vehicles. They are used to transmit data and control signals between battery modules, monitor and manage battery status in real time, and ensure battery safety and performance.


II: Energy storage systems: Energy storage systems are widely used in power grid peak regulation, backup power supply, and storage of renewable energy. BMS communication harness plays a key role in the energy storage system, which is used to monitor and control the charging and discharging process of the battery pack to ensure the stability and high efficiency of the energy storage system.


III: Industrial automation: In the field of industrial automation, BMS communication harness can be used for the monitoring and control of battery packs, such as industrial robots, automation equipment, and unmanned vehicles. They transmit battery status information to enable remote monitoring and management of battery packs.


5. Feature


I: High temperature resistance: The wire harness is made of materials with strong high temperature resistance, which can maintain stable performance in high temperature environment. This makes it suitable for applications such as battery management systems that operate reliably even under conditions that generate high temperatures while working.


II: Safety and reliability: The harness is designed and manufactured with a focus on safety and reliability. After rigorous testing and verification, it has good electrical connectivity, anti-interference capability and long-term stability, ensuring the normal operation of the battery management system and the reliability of data transmission.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
