Braided shield one tow five button interface industrial wiring harness
1. Product description
Braided shield one tow five button interface industrial wiring harness designed for one drag five, that is, with a key interface connector, can
connect five devices or modules at the same time, simplify the connection wiring, improve work efficiency. The outer sheath of the harness is made
of wear-resistant and corrosion-resistant materials, which can withstand the physical and chemical corrosion that may exist in industrial equipment
and improve the service life of the harness. The wire harness adopts braided shielding structure, which can effectively resist external
electromagnetic interference and reduce interference and noise in the process of signal transmission.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
Braided shield one tow five button interface industrial wiring harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Automatic production line, industrial machinery and equipment, etc |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Tensile test 1000N |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

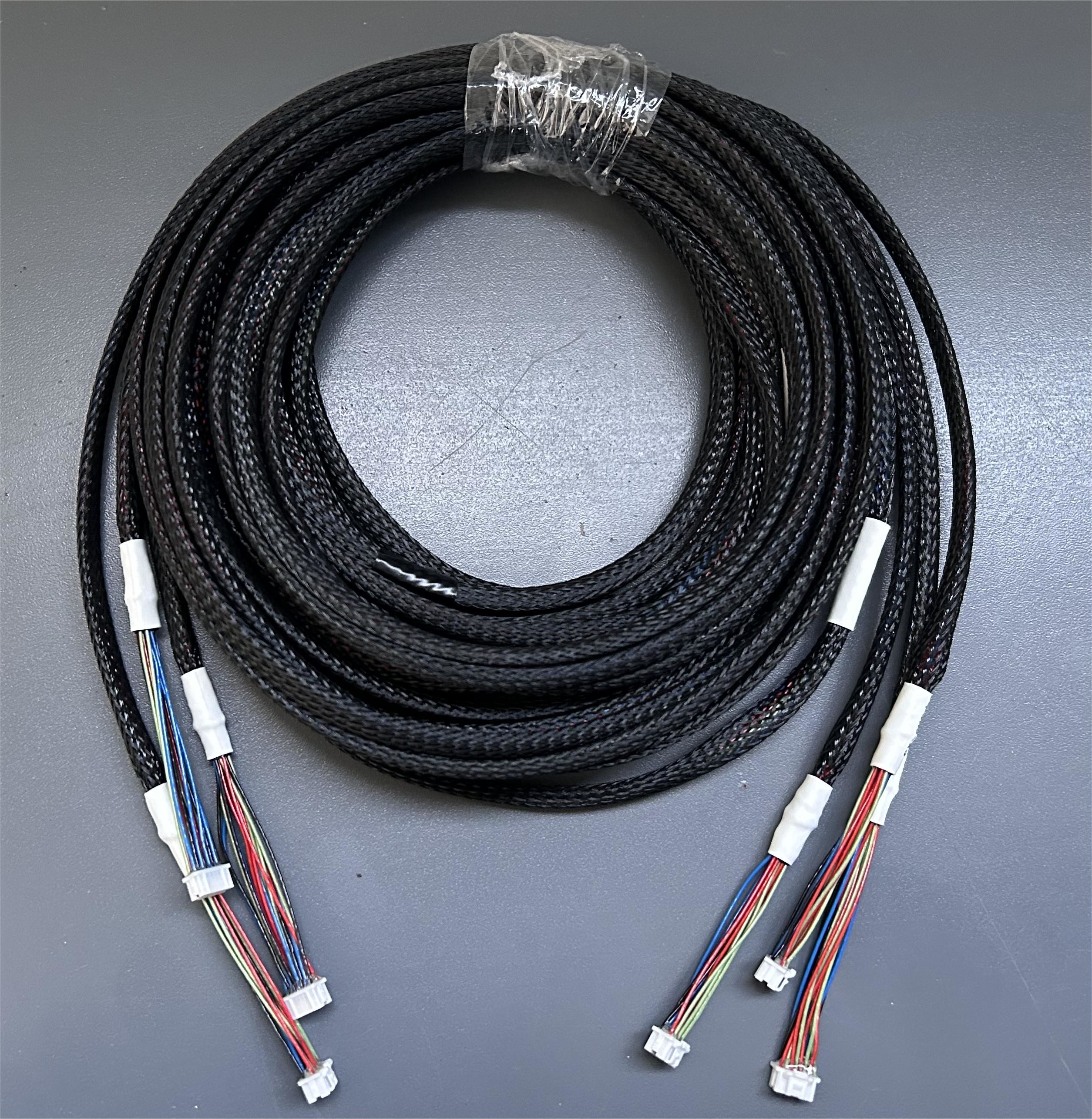

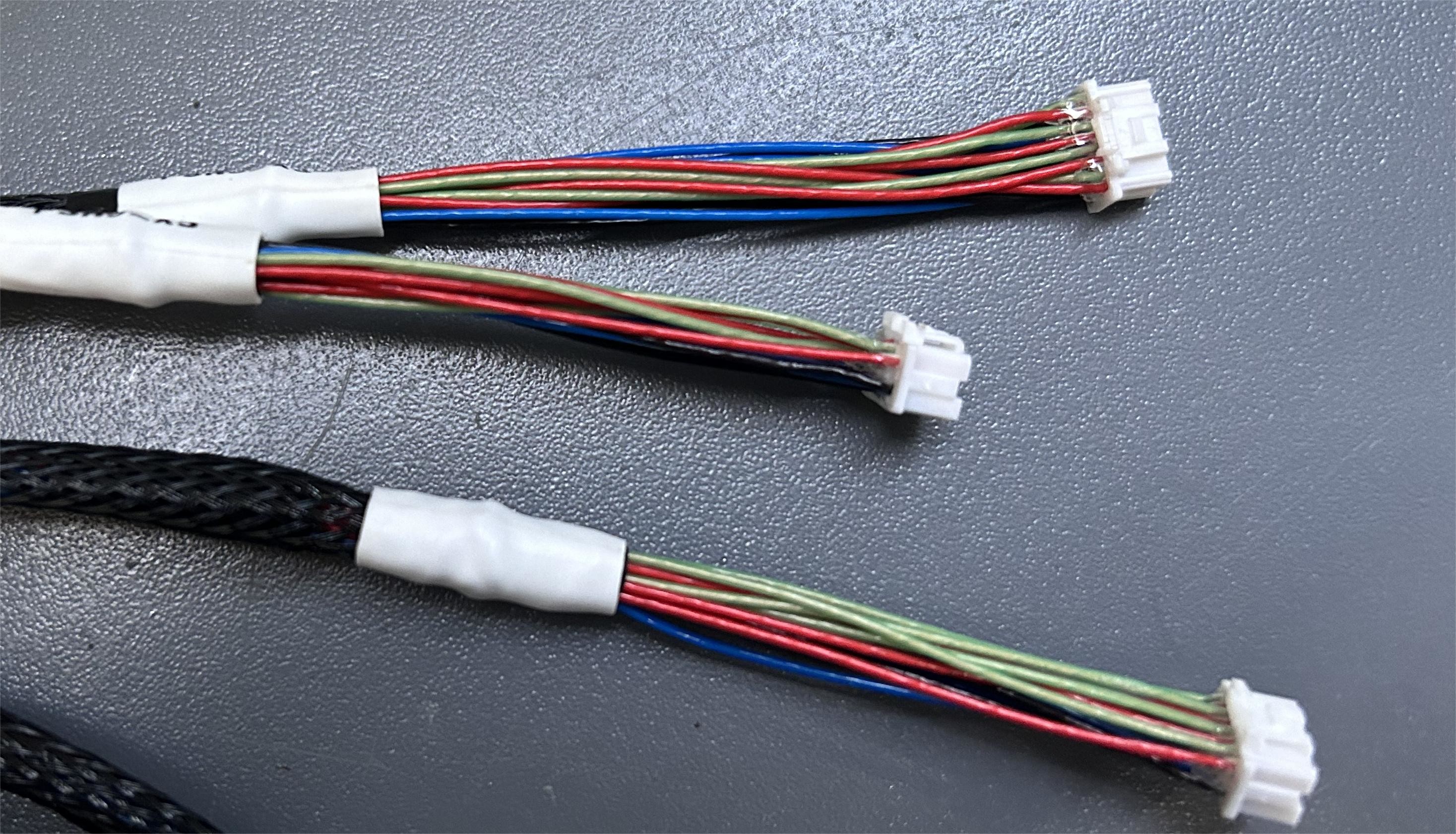

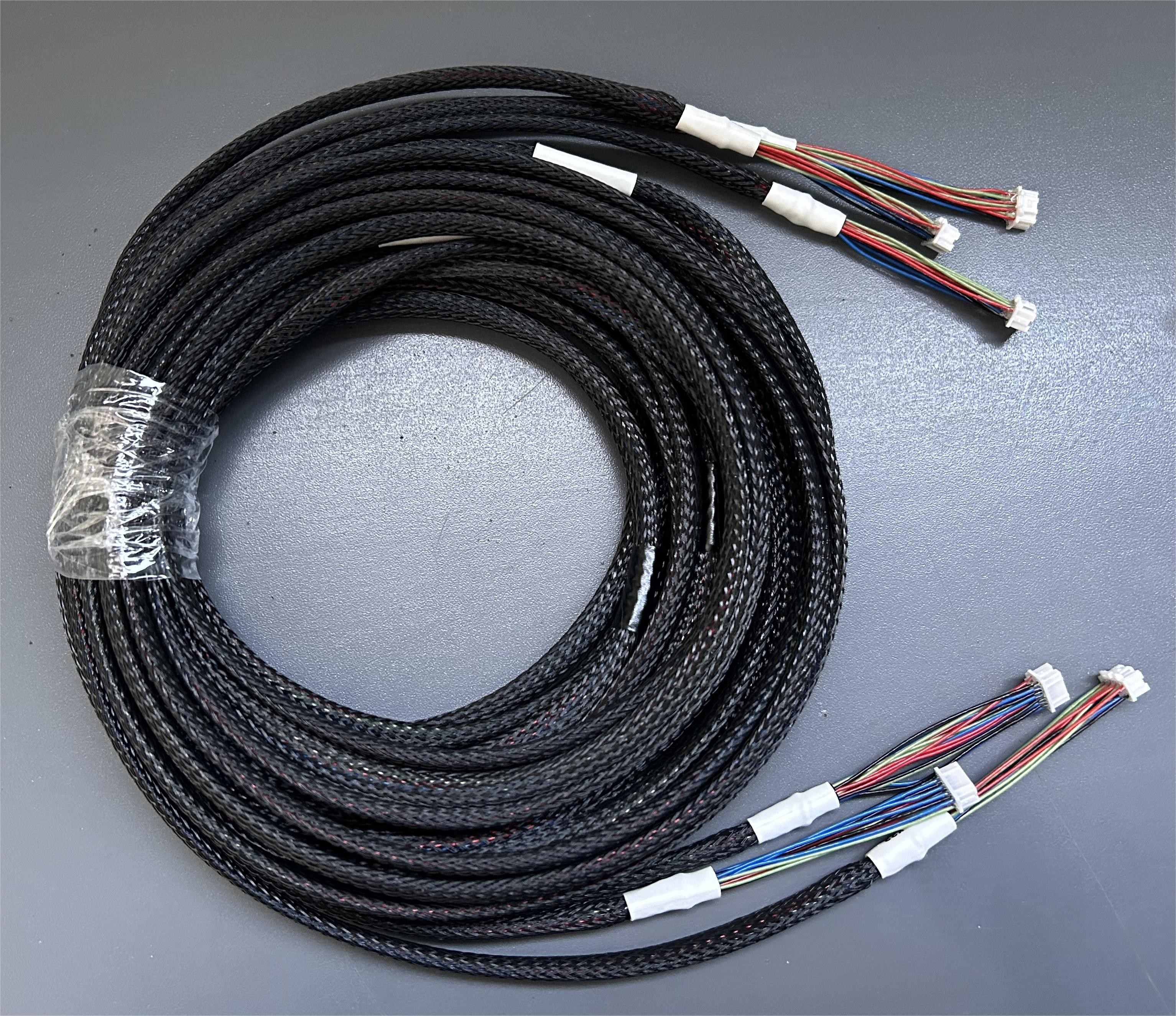

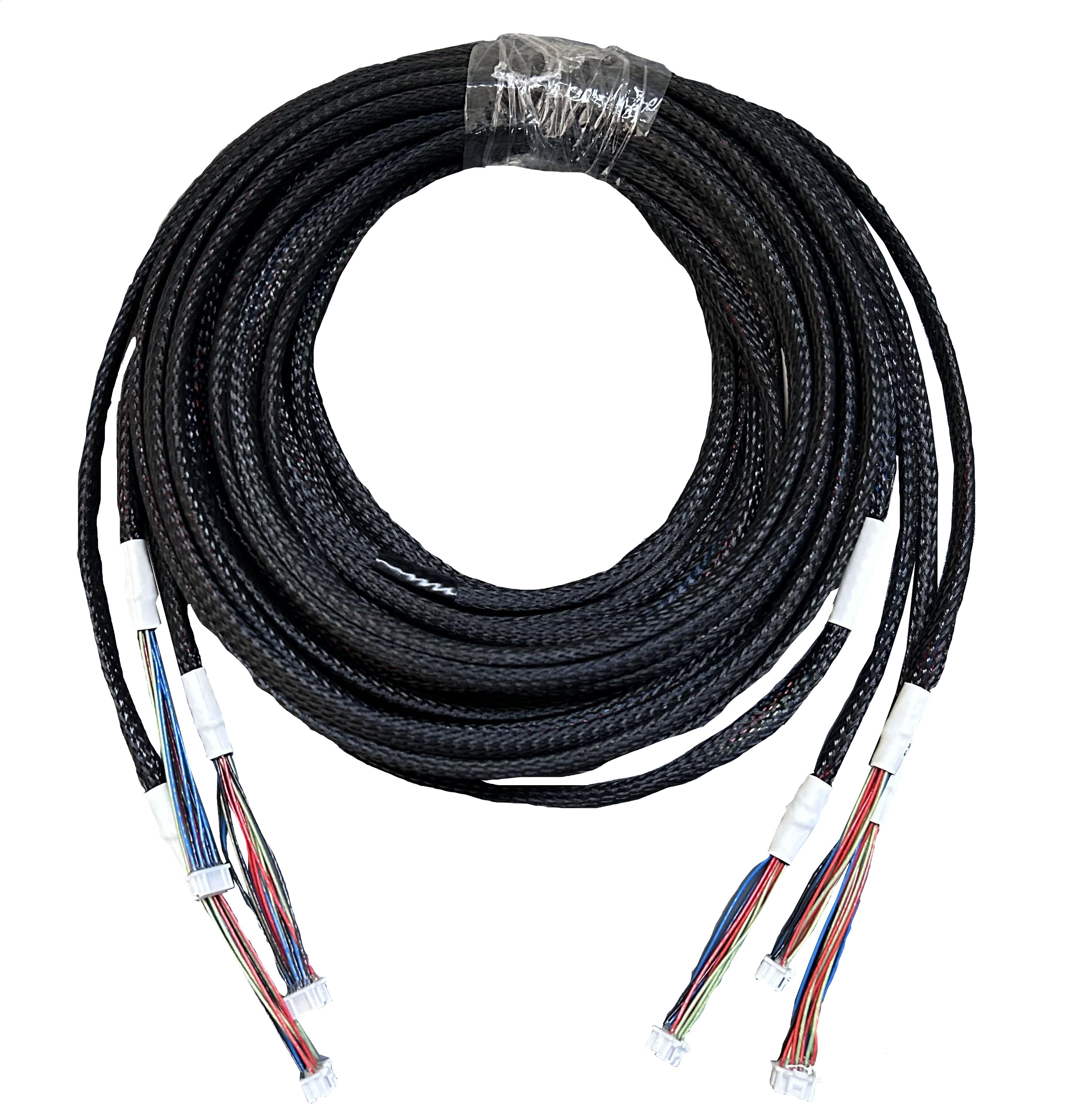

3. Picture of real products
4. Application area
I: Automated production lines: Industrial wiring harnesses are often used to connect devices such as robots, conveyor belts, sensors, and actuators in automated production lines to achieve automated control and data transmission.
II: Power equipment: Wiring harnesses play an important role in power equipment, such as generator sets, transformers, power transmission and distribution systems, etc., for connecting high and low voltage cables, circuit breakers, switches, and monitoring equipment.
III: Automobile manufacturing: In the automobile manufacturing industry, wiring harnesses are widely used in the electrical system of automobiles, including engine wiring harnesses, body wiring harnesses, instrument panel wiring harnesses, etc., for connecting various sensors, control units, lamps and switches, etc.
5. Feature
I: Braided shielding: The harness adopts braided shielding structure, which can effectively resist external electromagnetic interference and reduce interference and noise in the process of signal transmission.
II: One drag five design: The wiring harness is designed as one drag five, that is, it has a key interface connector, which can connect five devices or modules at the same time, simplifying the connection and wiring, and improving the work efficiency.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
