UL1007 22AWG 350mm Soft PVC Brake Switch Electronic Harness 4 Pin Plastic Shell Small Diameter

UL1007 22AWG 350mm white 4 pin plastic shell small diameter soft pvc brake switch electronic harness

1. Product description

  UL1007 22AWG 350mm white 4 pin plastic shell small diameter soft pvc brake switch electronic harness a 4-pin plastic housing was attached to one end. This housing accommodates and protects the connectors of the harness and provides stable connection and protection. The 4-pin means that the harness is suitable for applications connected with 4 leads, such as sensors, switches, controllers, etc. The length of the harness is 350mm, and the small diameter design makes it suitable for limited space installation. In compact devices or systems, small diameter harnesses can be routed and connected more easily, providing higher flexibility and ease of installation. The outer sheath of electronic brake switch harness is made of soft PVC material. The soft PVC material has good flexibility and wear resistance and is able to provide protection during bending and movement. The brake design increases the wear resistance of the outer sheath and helps extend the service life of the harness.

  Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

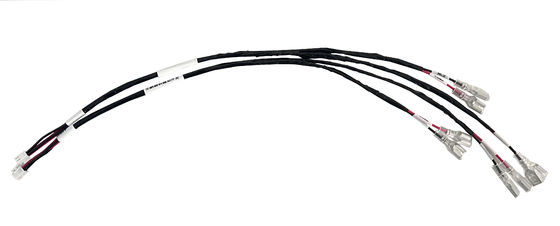

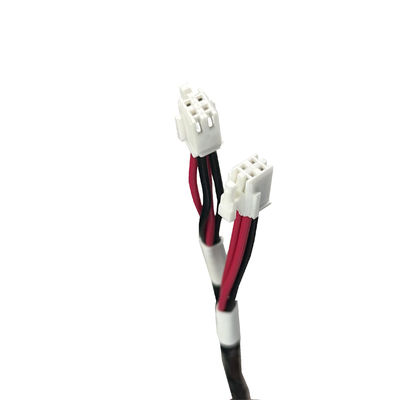

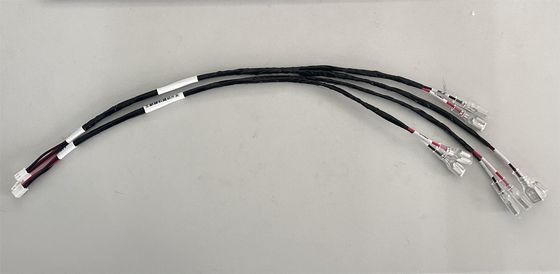

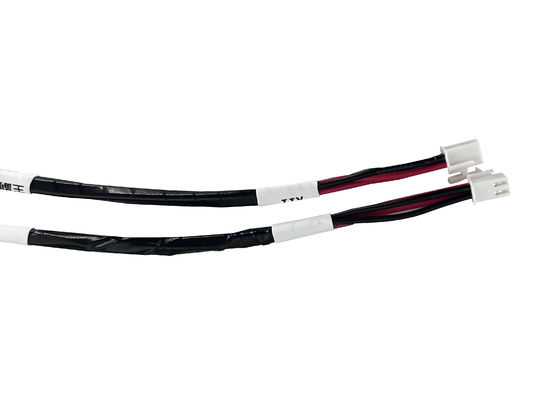

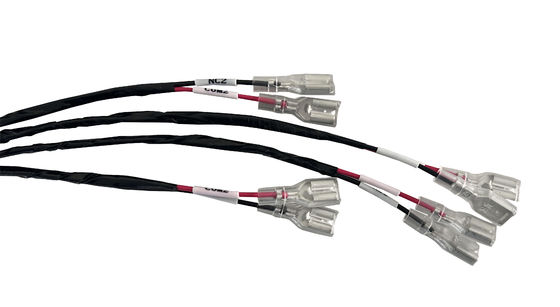

3. Picture of real products

4. Application area

I: Control system: The electronic brake switch harness can be used in various control systems, including industrial automation, building automation, robot control, etc. The harness can be used to connect sensors, actuators, controllers, and other devices to enable signal and power transmission and interaction.

II: Medical equipment: UL1007 wiring harness has a wide range of applications in medical equipment, such as medical imaging equipment, monitoring instruments, surgical equipment, etc. Electronic brake switches are used to connect various sensors, displays, control units, and power sources to provide the necessary power and signal transmission for medical devices.

III: Electronic EQUIPMENT: THE electronic brake switch harness is suitable for all kinds of electronic equipment, such as computer, TV, audio equipment, household appliances, etc. The harness can be used for internal wiring, connecting components between circuit boards, sensors, and controllers, among others.

5. Feature

I: Small diameter design: The small diameter design of the electronic brake switch harness makes it suitable for limited space installation. In compact devices or systems, small diameter electronic harnesses can be routed and connected more easily, providing higher flexibility and ease of installation.

II: Brake design: The outer sheath of the electronic brake switch harness is designed by brake, which increases the wear resistance of the outer sheath. This makes the electronic harness more durable and able to be used in environments with frequent movement and friction, extending the service life of the electronic harness.

III: Good electrical performance: The wires of the electronic brake switch harness are 22AWG specifications, providing appropriate conductive capacity and load capacity. The electronic harness has low resistance, low voltage drop and good signal transmission characteristics to ensure the stability and reliability of power and signal transmission.

6. Main products

I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.

II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.

III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
