UL1007 24AWG DB26 three rows rivet end driver plate black 200MM electronic harness
1. Product description

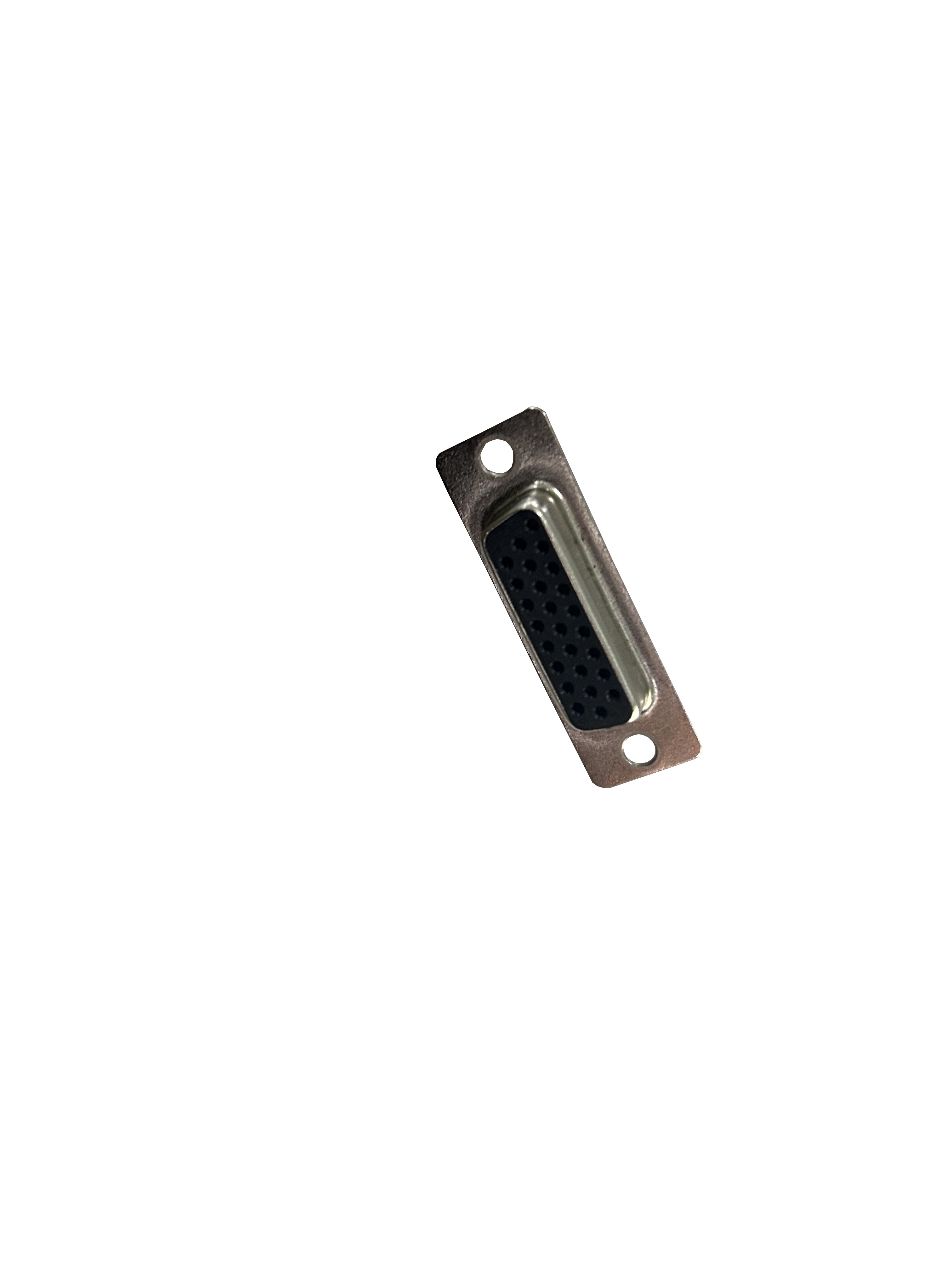

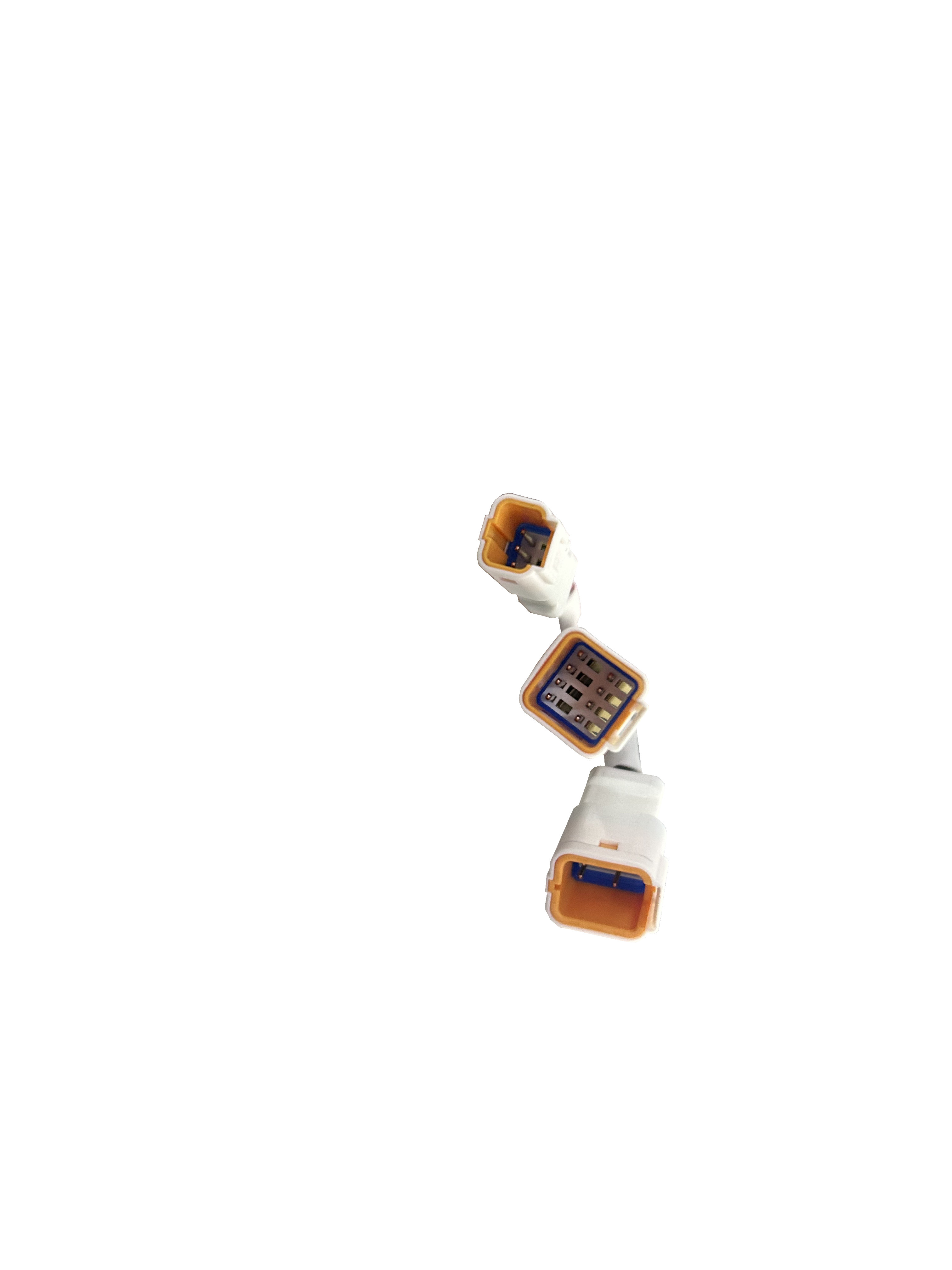

UL1007 24AWG DB26 three rows rivet end driver plate black 200MM electronic harness consists of multiple 24AWG wires, using UL1007 standard certified wires. The length of the harness is 200mm, which is suitable for short distance connection requirements. One end of this electronic harness is equipped with a DB26 three-row rivet end connector, which has 26 pins and can be connected to the corresponding DB26 interface, and the other end is equipped with a 2*3P plastic case, which is usually used for connection between the driver board or interface board of electronic equipment. Due to the DB26 connector, the electronic harness is mainly used to connect the electronic connection between the driver board or interface board. It can be used in computers, industrial control equipment, instrumentation and other applications for data transmission, signal control, or other related functions.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
UL1007 24AWG DB26 three rows rivet end driver plate black 200MM electronic harness |
|
Product certification |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Industrial equipment driver board |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Strain relief test |
|
MOQ |
50pcs |
|
Delivery time |
1~2 weeks |
|
After-sales service |
Authentic guaranteed, factory outlets center |

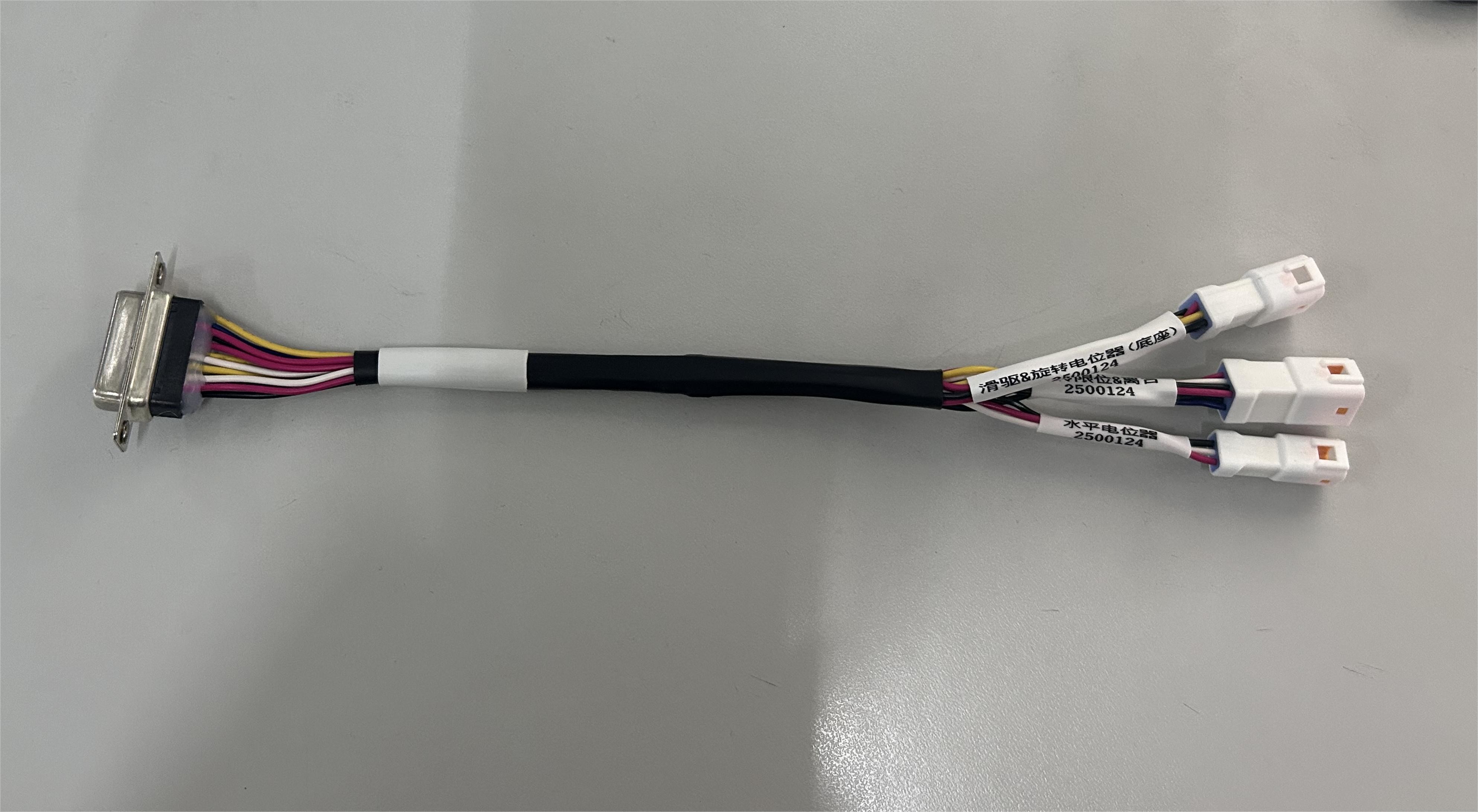

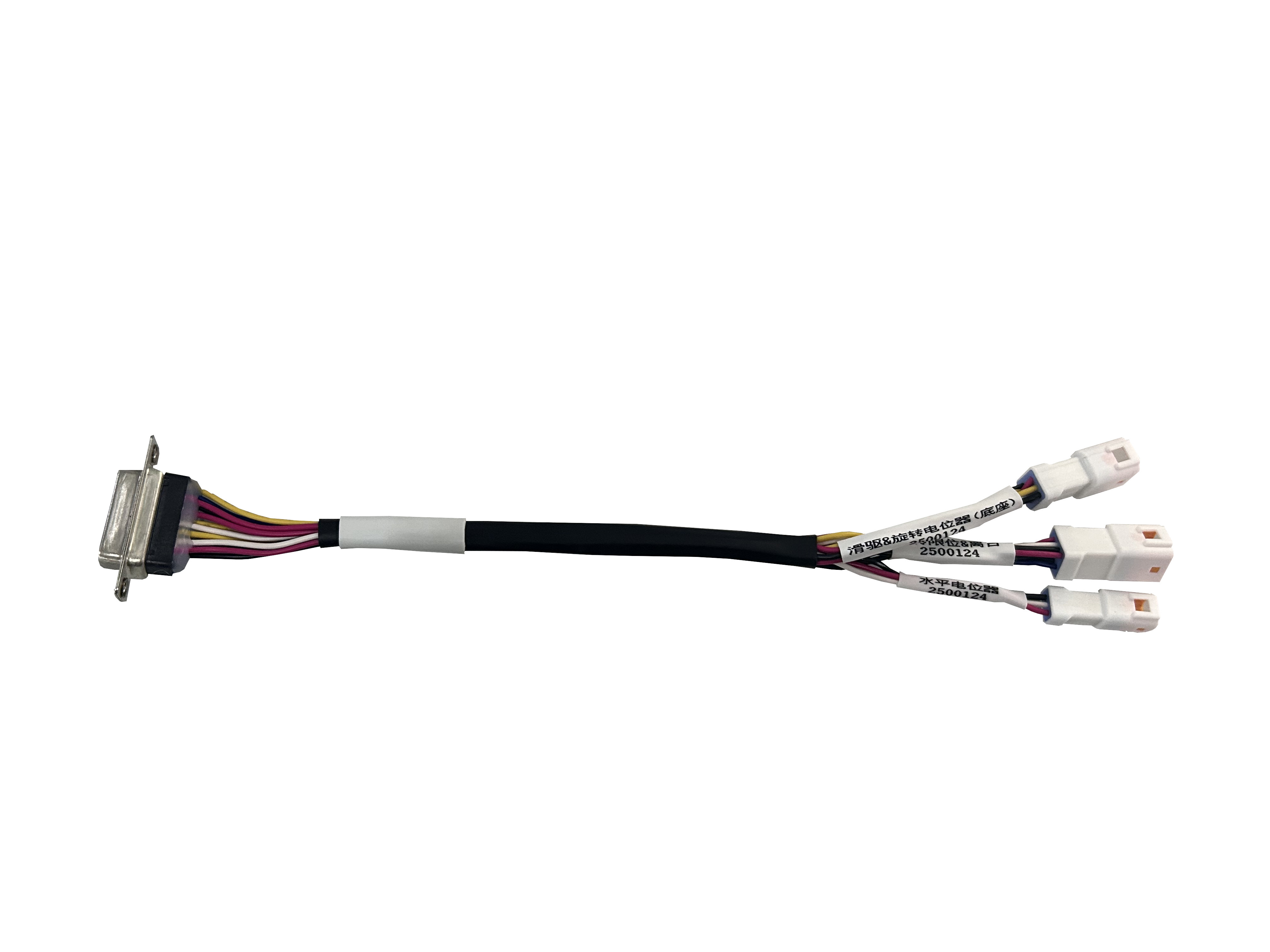

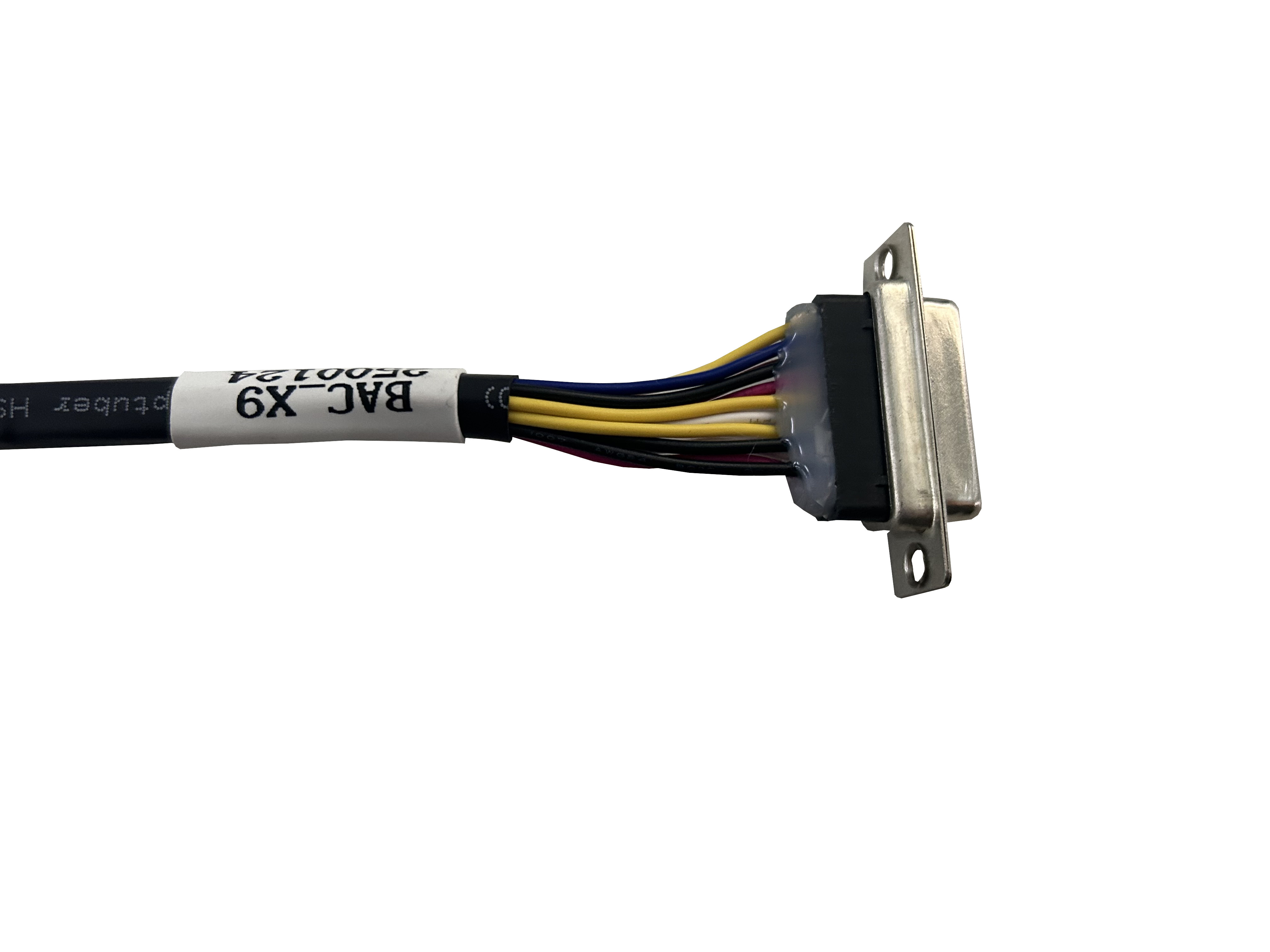

3. Picture of real products
4. Application area
I: Computer and server: The electronic harness can be used to connect the electronic connection between the computer motherboard and the driver board for data transmission, signal control and other related functions.
II: Automotive electronics: In the automotive electronic system, the electronic harness can be used to connect the driver board, control module, sensor, etc., to achieve signal transmission and control functions.
III: Industrial control equipment: The electronic harness is often used in industrial automation and control systems to connect devices, such as PLC (programmable logic controller), sensors, actuators, etc.
5. Feature
I: Insulation protection: The electronic harness uses UL1007 certified insulation materials to provide good electrical insulation performance and protect the wires from external environmental interference.
II: High quality wire: The electronic harness uses UL1007 certified high quality wire with good conductivity and electrical insulation properties.
6. Main products
I: Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II: Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III: New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
