CAT5E UTP PVC Insulated Ferrite Magnetic Ring Electronic Wiring Harness 300V 4P*24AWG

50 pcs
CAT5E UTP PVC Insulated Ferrite Magnetic Ring  Electronic Wiring Harness 300V 4P*24AWG
Features Gallery Product Description Request A Quote
Product Name: CAT5E UTP 4P*24AWG PVC Insulated Ferrite Magnetic Ring 300V Electronic Wiring Harness
Application Area: Connect Computers, Network Devices, And Other Network Terminal Devices
Wire Type: CAT5E
Conector: Ferrite Magnetic Ring, Crystal Head
Color: Black
Length: 2000mm
Rated Voltage: 300V
Insulation Resistance: 5MΩ
Conductor Resistance:
MOQ: 50 Pcs
OEM,ODM: Accept
Code: FDL216A2169
High Light:

Ferrite Magnetic Ring Electronic Wiring Harness


300V Electronic Wiring Harness


PVC Insulated Electrical Cable Harness

Basic Infomation
Place of Origin: China
Brand Name: Shineplus
Certification: ISO13485,ISO9001,UL,ROHS2.0
Model Number: Customized
Payment & Shipping Terms
Packaging Details: Cartons
Delivery Time: Negotiable
Payment Terms: Negotiable
Supply Ability: 8000 pcs/day
Product Description

CAT5E UTP 4P*24AWG PVC insulated ferrite magnetic ring 300V electronic wiring harness


1. Product description


  CAT5E UTP 4P*24AWG PVC insulated ferrite magnetic ring 300V electronic wiring harness contains 4 pairs (8 wires), each wire specification is 24AWG. Is an unshielded twisted pair structure in which each pair of wires is arranged in a specific torsional manner. This structure can reduce electromagnetic interference and crosstalk and improve signal quality. The electronic harness uses a ferrite magnetic ring, which is a ring magnetic component made of ferrite material. It is placed in the middle of the wire harness to suppress high frequency electromagnetic interference (EMI) and radio frequency interference (RFI), thus maintaining the stability of signal transmission. And the wire of the electronic harness is made of polyvinyl chloride (PVC) insulation material, which has good electrical insulation performance and chemical resistance.


  Feel free to contact with us, if you ever needed to consider your wire harness solution.


2. Product information


Product Name

CAT5E UTP 4P*24AWG PVC insulated ferrite magnetic ring 300V electronic wiring harness

Product certification

Pass ISO13485,ISO9001,UL and ROHS2.0 certification

Product application

Connect computers, network devices, and other network terminal devices

Length, color

Customized according to customer needs


Samples confirmed first before mass production


Whole-course specially-assigned follow-up, to provide fast and efficient service

Test requirement

Strain relief test,continuity test



Delivery time

1~2 weeks

After-sales service

Authentic guaranteed, factory outlets center

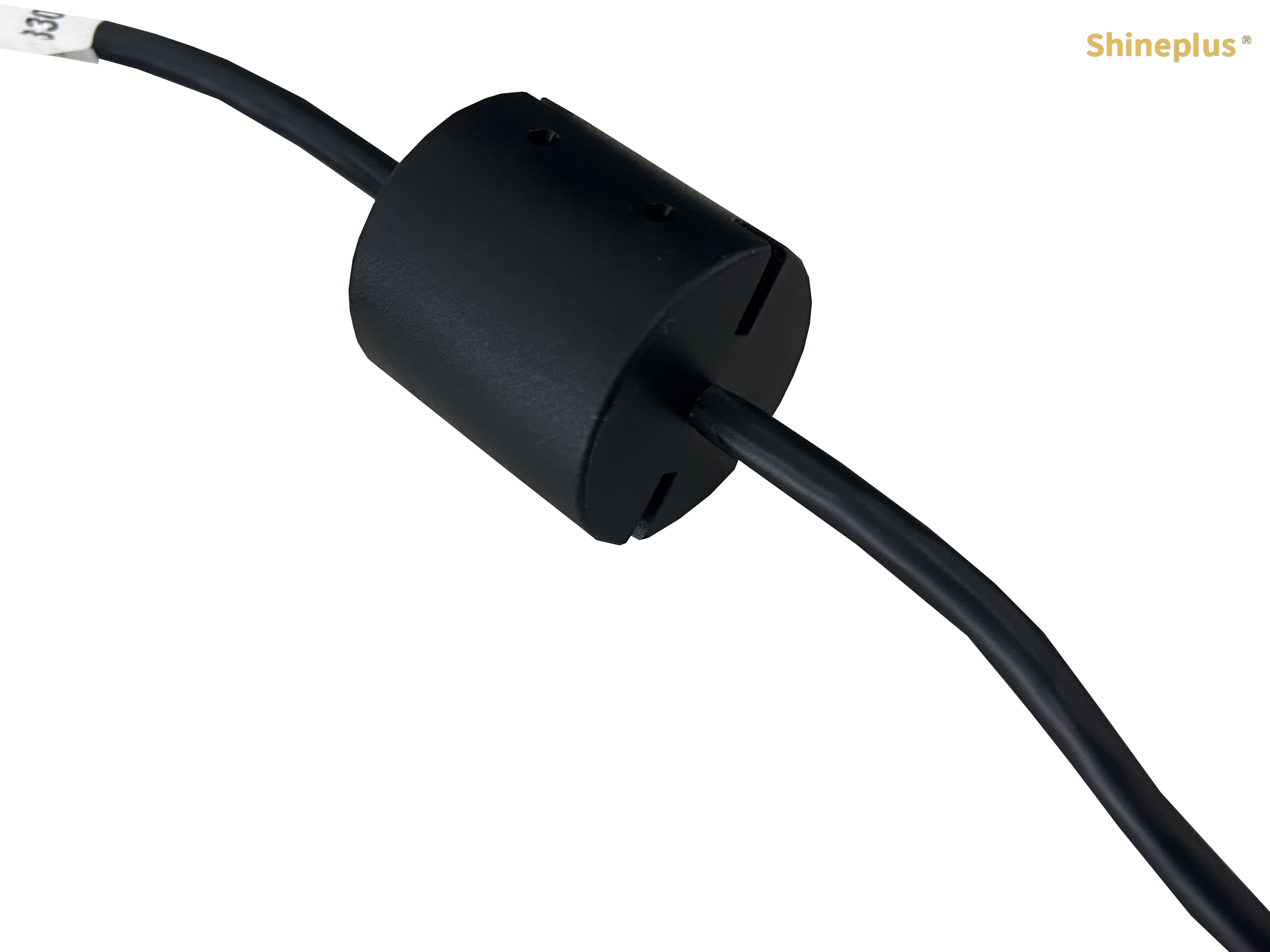

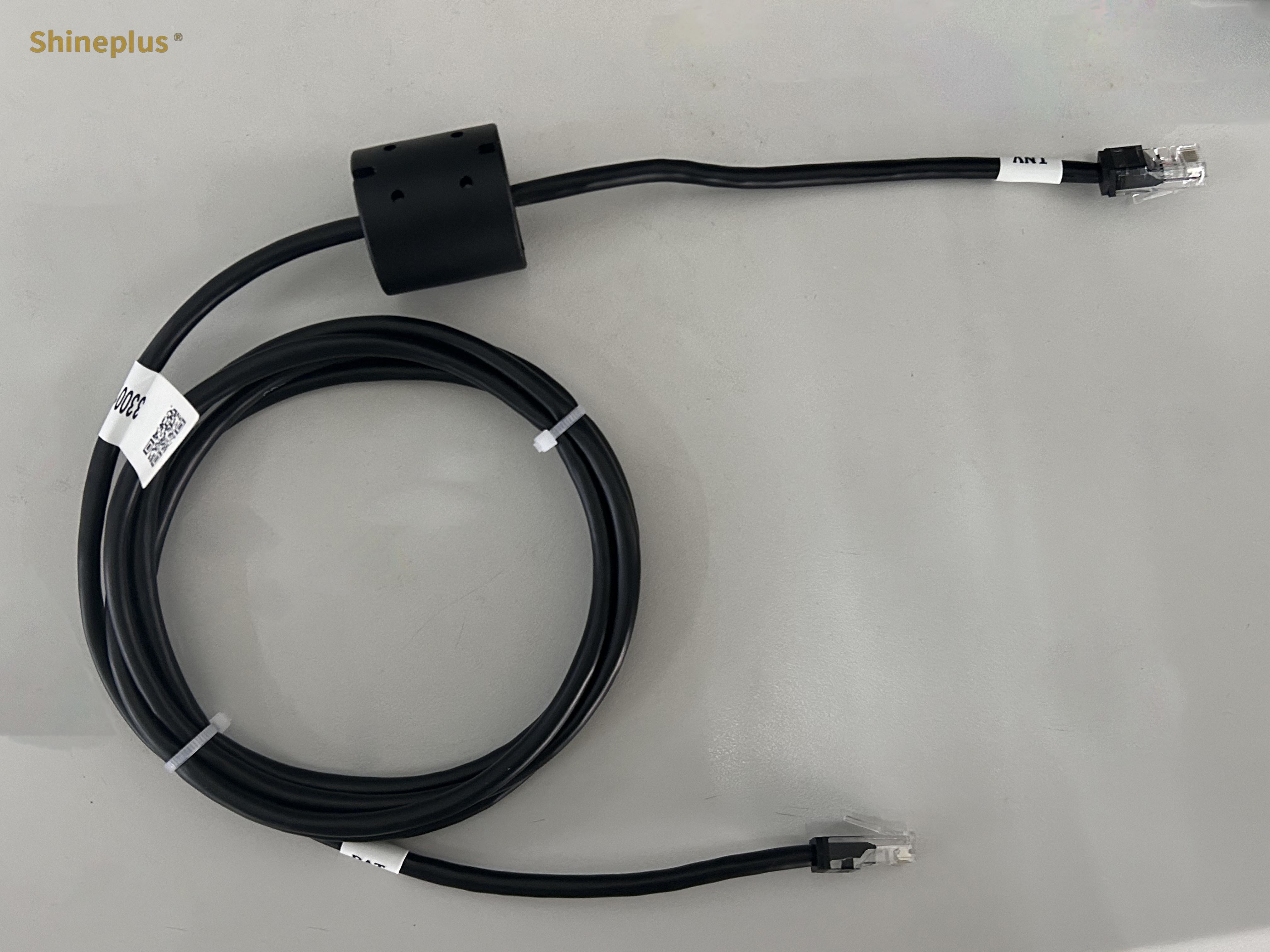

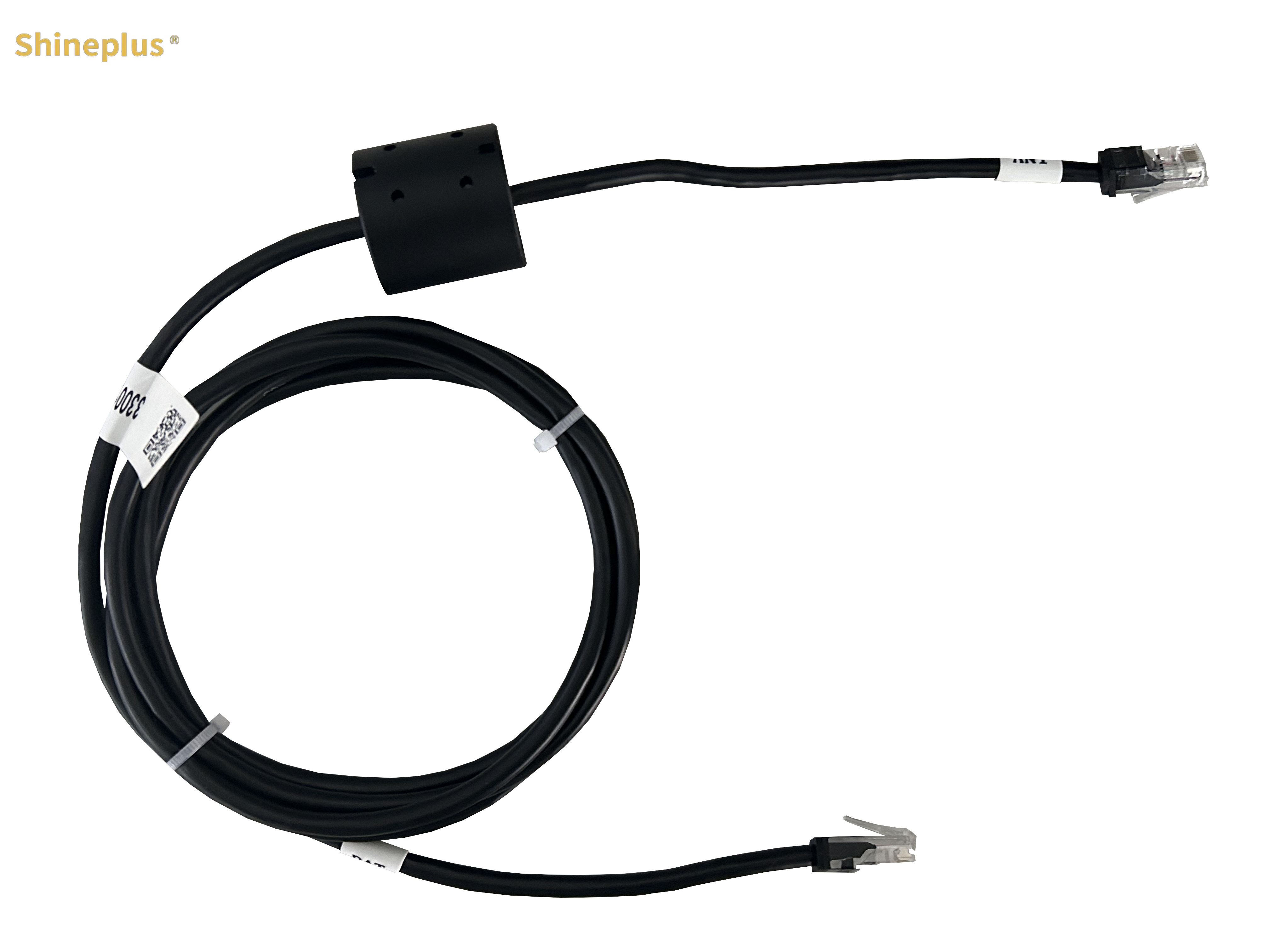

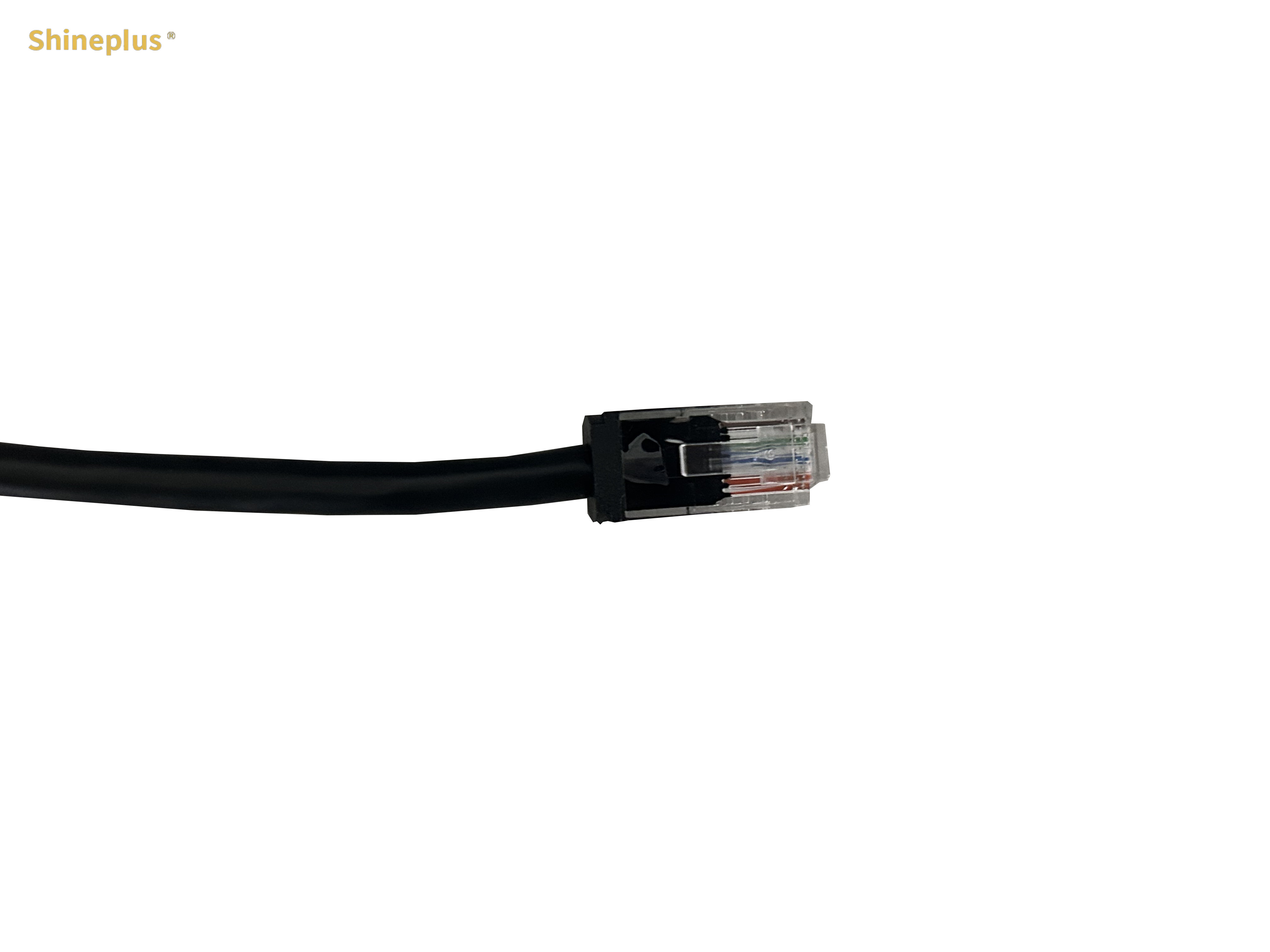

3. Picture of real products


CAT5E UTP PVC Insulated Ferrite Magnetic Ring  Electronic Wiring Harness 300V 4P*24AWG 0


4. Application area


I: Computer networks: This electronic wire harness is widely used in computer networks to connect computers, servers, switches, routers, and other network devices. They are used to establish data transmission channels in local area networks (LAN) and wide area networks (WAN).


II: Data center: In a data center environment, this electronic harness is used to connect servers, storage devices, and network devices. High-density network connections in data centers require high-quality network cables to ensure stable data transmission and low latency.


III: Commercial and industrial environments: This electronic harness is suitable for applications requiring high-speed data transmission and reliability in commercial and industrial environments. For example, industrial automation systems, monitoring systems, security systems, and machine networks, among others.


5. Feature


I: PVC insulation: PVC insulation is a common choice of insulation material, which provides good electrical insulation properties and durability. PVC also has good chemical resistance and can resist some common chemicals and solvents well.


II: Transmission performance: CAT5E direct network cable has high transmission performance and supports the highest frequency up to 100 MHz. This makes it suitable for high-speed Ethernet standards.


III: Signal fidelity: Ferrite magnetic rings are used in the electronic harness because the use of ferrite magnetic rings helps reduce the impact of electromagnetic and radio frequency interference on signal transmission. They provide clearer and stable signal transmission by absorbing and suppressing high-frequency noise.


6. Main products


I: Wiring harness of industrial control equipment:

Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.


II: Medical equipment wire harnesses:

Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.


III: New energy wire harnesses:

Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
