USB3.0 TO TYPEC MALE 20PIN connection wire Pin data cable rear USB transfer out of the motherboard connection wire harness
1. Product description
USB3.0 TO TYPEC MALE 20PIN connection wire Pin data cable rear USB transfer out of the motherboard connection wire harness one end uses a TO TYPEC MALE connector, which is a connector with 20 pins. This connector has reliable pluggable performance and can be used to connect to the corresponding USB 3.0 20-pin interface on the motherboard. The other end of the adapter is a rear USB port, which is used to lead the rear USB port on the motherboard to the outside of the device. This allows users to easily connect and use rear USB devices such as USB storage devices, external cameras, and more. In addition, the adapter is compatible with USB 3.0 standard and can be used with devices and interfaces conforming to USB 3.0 specification. At the same time, it is also backwards compatible with USB 2.0 and USB 1.1 devices to support a wider range of device connections.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
|
Product Name |
USB3.0 TO TYPEC MALE 20PIN connection wire Pin data cable rear USB transfer out of the motherboard connection wire harness |
|
Harness material |
Pass ISO13485,ISO9001,UL and ROHS2.0 certification |
|
Product application |
Computers and peripherals |
|
Length, color |
Customized according to customer needs |
|
Samples |
Samples confirmed first before mass production |
|
Serve |
Whole-course specially-assigned follow-up, to provide fast and efficient service |
|
Test requirement |
Bending resistance: ≥5 million times,Salt spray test: ≥72H,Continuity test |
|
MOQ |
Negotiable |
|
After-sales service |
Authentic guaranteed, factory outlets center |

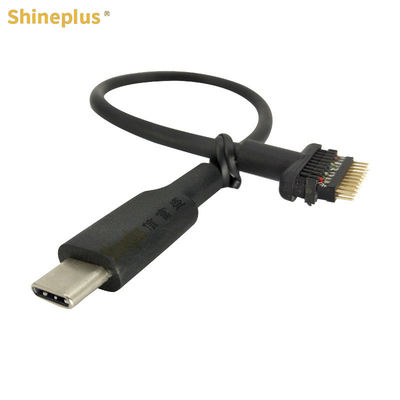

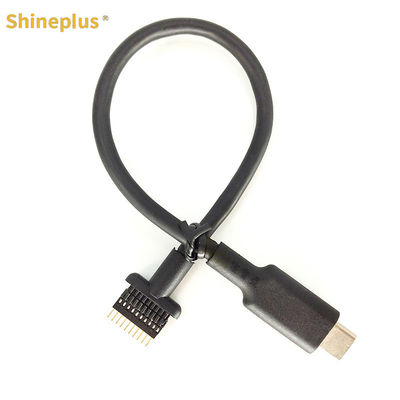

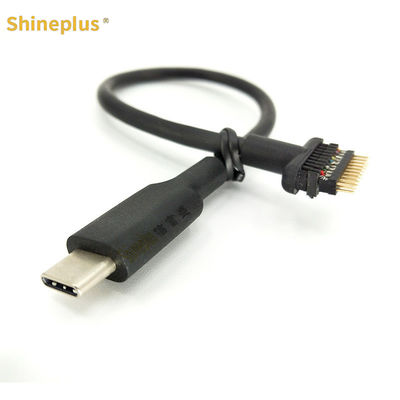

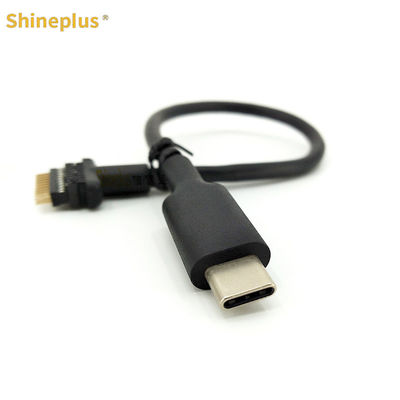

3. Picture of real products
4. Application area
I: Computers and peripherals: This adapter cable is used to connect the USB 3.0 20-pin port on the computer motherboard to the rear USB port. It can be used to connect a rear USB expansion interface, enabling users to easily connect and use USB devices such as printers, cameras, external storage devices, etc.
II: Servers and data storage devices: In servers and data storage devices, this adapter cable can be used to lead the rear USB interface to the external panel for easy connection and management of USB devices, such as backup storage devices, external hard drives, etc.
5. Feature
I: High speed data transmission.
II: Reverse insertion protection design.
III: Strong compatibility.
IV: Simple and easy to use.
